Controlling moving head lights requires a synergy of DMX512 protocols, specialized lighting consoles, and precise fixture addressing. By mastering signal routing and parameter mapping, technicians can achieve fluid pan/tilt movements and dynamic color mixing essential for high-impact professional stage lighting environments.

Table of Contents

≡

Quick Summary
Advanced Engineering Solutions by Colorful Light
Deep-Dive Professional Lighting FAQs

Quick Summary

Controlling professional moving head lights is fundamentally rooted in the DMX512-A protocol, which allows a lighting console to send digital instructions to fixtures via a daisy-chained serial link. Modern control involves assigning unique start addresses to each fixture, enabling independent manipulation of attributes like pan, tilt, gobo, and intensity. Whether utilizing hardware consoles or PC-based software with USB-to-DMX interfaces, the core objective is to translate creative vision into precise binary data that the fixture's internal stepper motors and logic boards can execute with millisecond latency.

Advanced Engineering Solutions by Colorful Light

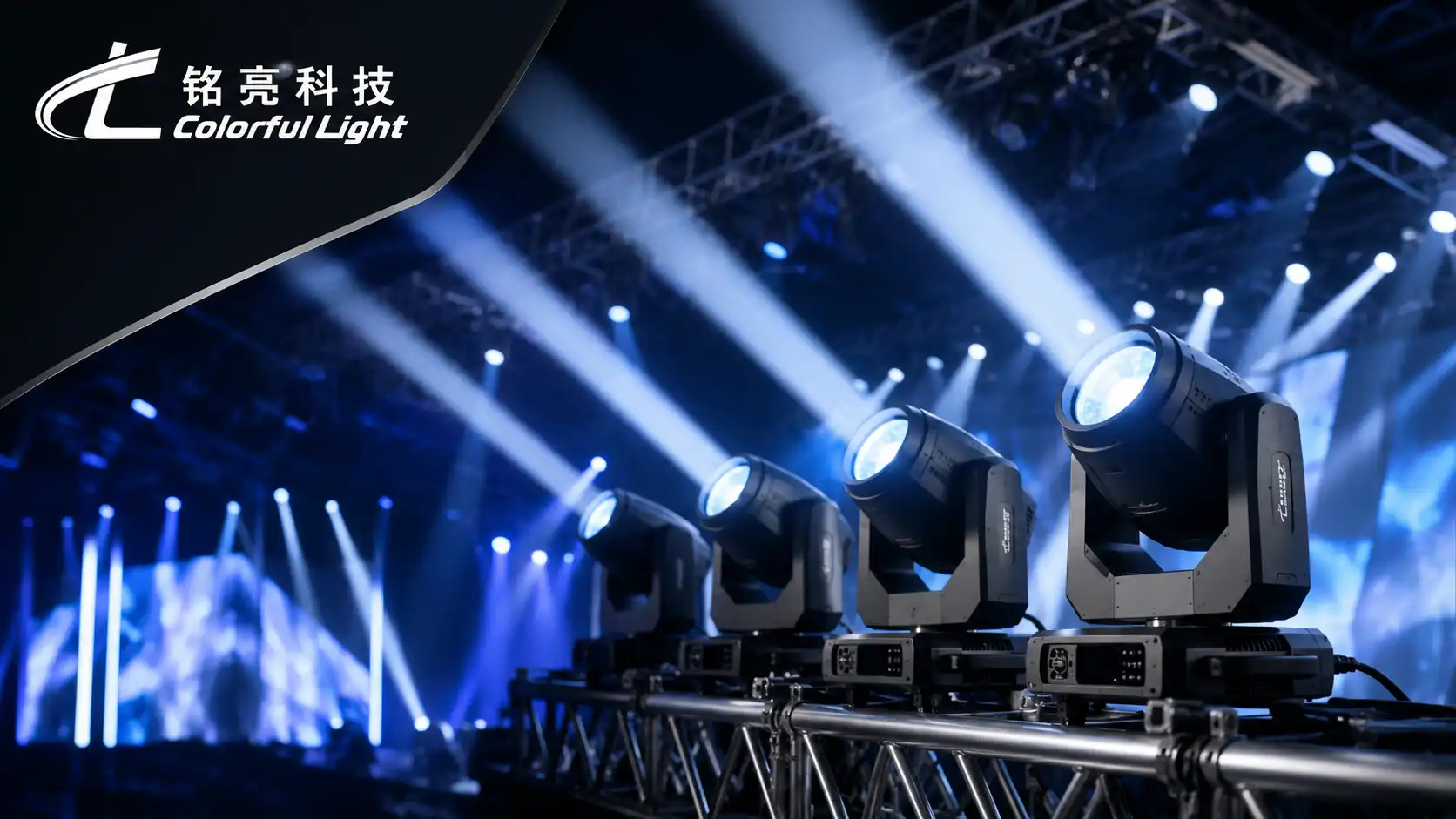

At Colorful Light, we bridge the gap between complex engineering and intuitive operation. Our professional stage lighting equipment is engineered with high-torque stepper motors and RDM (Remote Device Management) capabilities, ensuring that every command sent from your controller is executed with absolute precision and zero drift. By integrating industry-leading optical systems with robust DMX logic, Colorful Light fixtures provide the reliability required for high-stakes touring and permanent installations alike. Our technical support team specializes in helping beginners and pros optimize their signal chains for maximum performance.

Explore our full range of high-performance moving heads at www.colorfullight.net or contact our technical engineering department for a custom consultation via sales@colorfullight.net.

Deep-Dive Professional Lighting FAQs

How do I set DMX start addresses for multiple lights?

Setting a DMX start address involves calculating the footprint of each fixture. If a moving head uses 16 channels, the first light is set to address 1, the second to 17, and the third to 33. This ensures that the control signals for one fixture do not overlap with another, allowing for discrete control of every unit in the rig.

What is the difference between 3-pin and 5-pin DMX cables?

While both carry the DMX512 signal, the 5-pin XLR is the official industry standard defined by USITT. The extra two pins were originally intended for diagnostic data return, though rarely used. Professional stage lighting equipment often uses 5-pin connectors to prevent confusion with standard audio cables, which have different impedance ratings that can cause signal reflection.

Can I control moving heads using wireless DMX systems?

Yes, wireless DMX systems like CRMX or W-DMX transmit the 512-channel universe over 2.4GHz or 5GHz frequencies. This is highly effective for reducing cable clutter, provided you maintain a clear line of sight and use high-quality transmitters to avoid latency or interference from local Wi-Fi networks.

Why do my moving head lights twitch or lag?

Signal flickering or 'twitching' is usually caused by a lack of a DMX terminator at the end of the daisy chain or using low-impedance microphone cables instead of 120-ohm DMX cables. A 120-ohm resistor soldered across pins 2 and 3 at the end of the run prevents signal reflection, ensuring stable data transmission.

What are the benefits of using RDM-enabled controllers?

Remote Device Management (RDM) allows for bi-directional communication. Instead of climbing a truss to change a DMX address or check a fixture's temperature, an RDM-compatible controller can remotely query and modify these settings, significantly reducing setup time and labor costs for large-scale productions.

Should I use a hardware console or software?

Hardware consoles offer tactile feedback and dedicated processing power, which is critical for live, busked shows where reliability is paramount. Software-based controllers are more cost-effective and offer visual mapping tools, making them ideal for pre-programmed theatrical shows or beginners learning the fundamentals of lighting design.
