1200w IP54 LED Follow Spot Light/with Gobo (optional）

This 1200W waterproof LED follow spotlight with iris adjustment features strong light penetration, precise focusing, and smooth dimming with strobe effects.

Its rain- and dust-resistant design makes it suitable for outdoor performances, concerts, architectural lighting, and other applications. The LED light source boasts a long lifespan and stable, durable operation.

Get a Free Quote

Get Product Catalogs

◼

Why Choose Us

Key Features & Benefits

• Safe and Reliable: Compliant with CE and RoHS certifications.

• Cost-Effective: Factory-direct supply; supports bulk OEM/ODM orders.

• Easy Maintenance: Simple structural design results in lower maintenance costs.

• Extreme Environment Adaptability: IP54 waterproof rating; features a full die-cast aluminum housing for excellent heat dissipation, along with temperature control and overheat protection functions.

• Customization Options: Optional laser-printed logo available.

◼

Parameters

General Specifications

The 1200W IP54 LED Follow Spot Light delivers 66,000 lm output, 4.5°-25° adjustable beam angle, 8100K CCT, 200 mm lens and over 20,000 hours LED lifespan for concerts, outdoor performances and stage applications. It supports 1-25Hz strobe, 0-100% dimming, electronic iris, electric zoom/focus, color and CCT wheels, DMX512/RDM control, 7CH/10CH modes, silent cooling and intelligent temperature protection.

Specification
Source	1200W LED	Output	66000 Lm
Beam angle	4.5 ~ 25°	CCT	8100K
Lens diameter	200 mm	Source lifetime	>20000h
Power Consumption
Input voltage	AC 100V~240V 50/60Hz	Rated power	1500 W
Effects
Strobe	1 ~ 25Hz	LED Refresh Frequency	3KHz~ 25KHz
Electronic Color wheel (Open/H-CRI/Red/Yellow/Blue/Green/Orange)		Electronic CCT wheel (3000K~8500K)
Electronic Iris		Electronic dimming
Dimmer curve: 4		Electric zoom and focusing
Control & Program
Control channel	2 modes (7CH/10CH)	Protocols	DMX512 , RDM
Data connection	Three-core XLR I/O	Display	2.8-inch display + key knob operation panel
Manual control	Button and knob operation panel
Software
DMX signal to update		Silent fan, intelligent speed regulation
Intelligent temperature protection to ensure LED service life
Housing
Stainless steel+aluminum alloy structure		Aluminum alloy heat dissipation+silent fan
Power Consumption
Hanging	Input voltage: AC 100V~240V 50/60Hz	Rated power	1500 W
Other
IP rating	IP54	Work environment	-40℃ ~ 45℃
Startup environment	-20℃ ~ 45℃
Size & Weight
N.W	13.0 kg	Weight	26kg
Movement Direction	Added with a damping hinge, which can be rotated and stopped arbitrarily

◼

Effect

Lighting Effects

The 1200W IP54 LED Follow Spot Light delivers a strong, focused beam for performer tracking and stage highlighting. The lighting effect images show its clear white spotlight output, colored beam effects and long-distance projection performance in humid or outdoor environments.

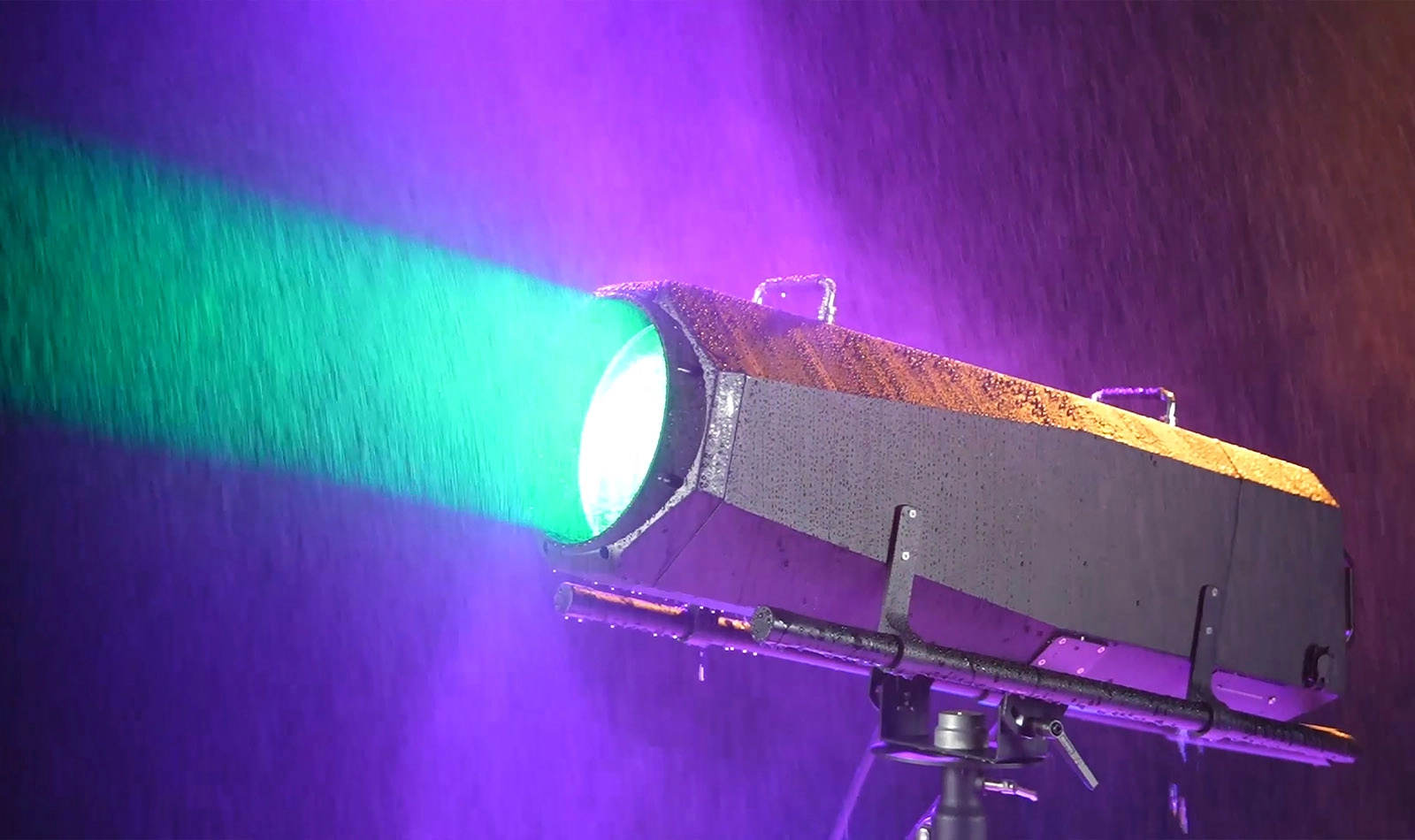

1200W IP54 LED Follow Spot Light green beam effect in outdoor rain environment - Colorful Light

1200W IP54 LED Follow Spot Light red beam crossing lighting effect - Colorful Light

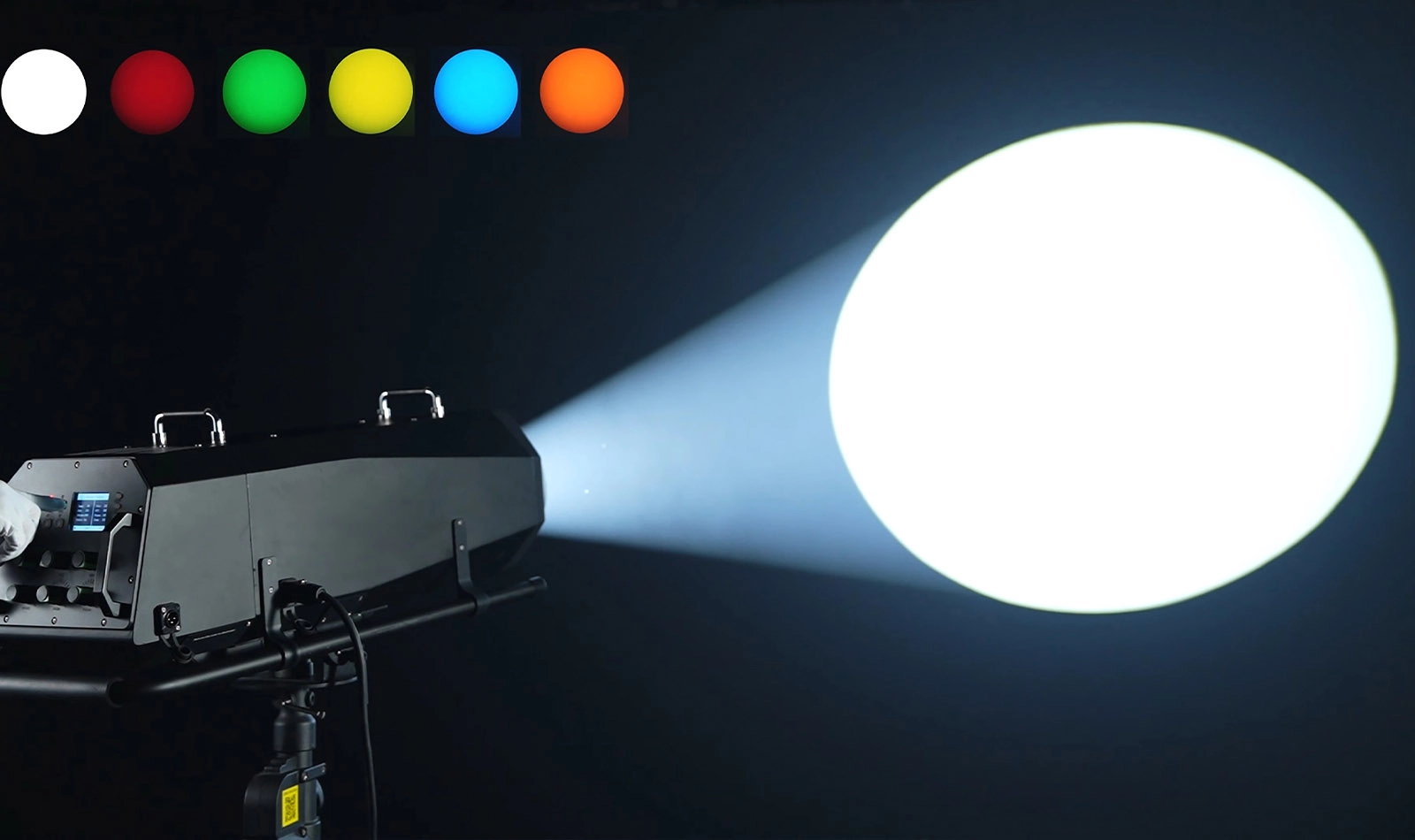

1200W IP54 LED Follow Spot Light white spotlight projection with color wheel options - Colorful Light

◼

Download

Download File

Download the FOLLOW 1200 IP User Manual for the 1200W IP54 LED Follow Spot Light. This PDF provides product operation guidance, DMX512/RDM control information, channel mode settings, installation notes and maintenance instructions for professional stage and outdoor performance use.
