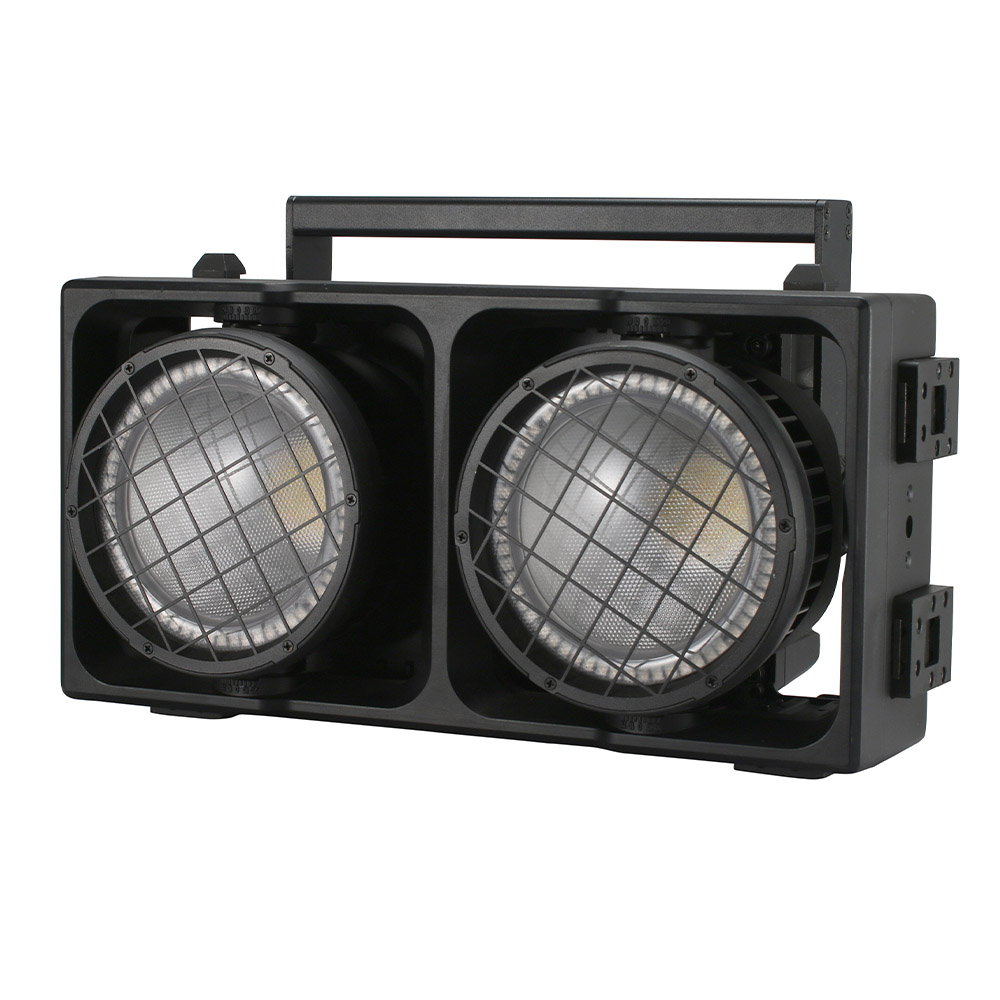

2 Eye Blinder RGBALC 6in1 IP65

The Waterproof 2x475W LED Blinder matrix Light features a powerful 600W LED light source, delivering strong luminous efficiency and outstanding brightness to instantly illuminate the entire area and create a stunning visual impact.

Its IP65 high-level waterproof and dustproof design, along with its robust and reliable sealed structure, withstands heavy rain and strong dust, making it suitable for stable operation in all weather conditions in outdoor settings.

Get a Free Quote

Get Product Catalogs

◼

Why Choose Us

Key Features & Benefits

• Safe and Reliable: Compliant with CE and RoHS certifications.

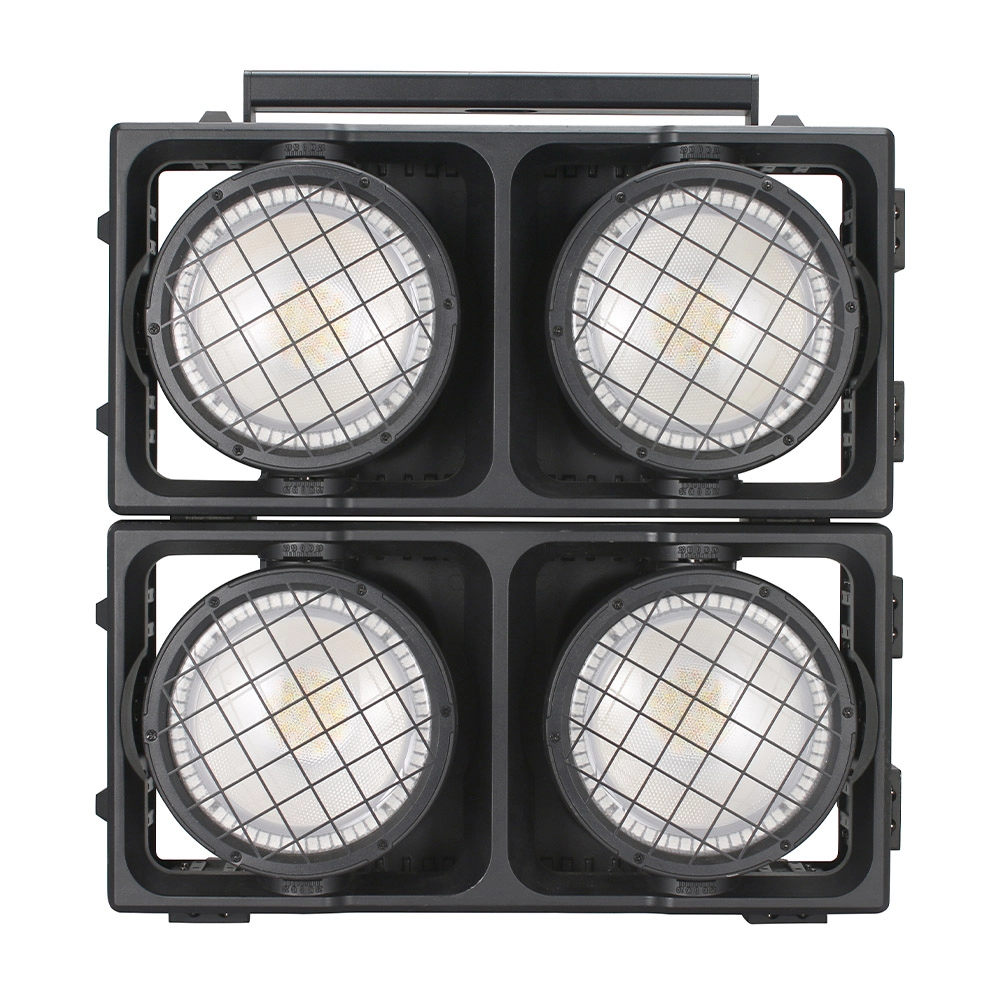

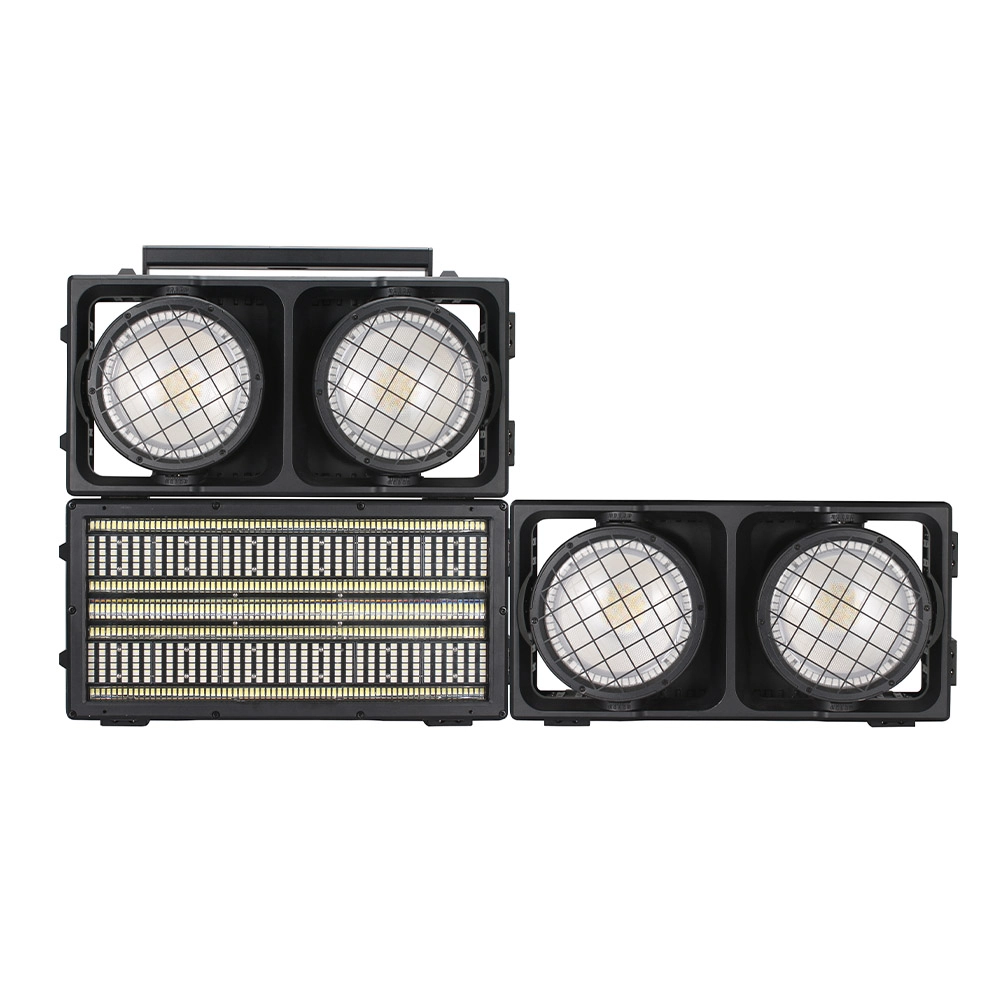

• Modular Design: Seamlessly connect units in any direction—up, down, left, or right—for limitless configuration options.

• Cost-Effective: Factory-direct supply; supports bulk OEM/ODM orders.

• Easy Maintenance: Simple structural design minimizes maintenance costs.

• Extreme Environment Adaptability: IP65 waterproof rating; features a full die-cast aluminum housing for superior heat dissipation, complete with temperature control and overheat protection functions.

• Customization Options: Optional laser-engraved logo, Art-Net support, or 3-pin + 5-pin connectivity.

◼

Parameters

General Specifications

The 2 Eye Blinder RGBALC 6-in-1 IP65 is a professional LED blinder light for concerts, festivals, clubs and outdoor stages. With RGBALC color mixing, modular connection, IP65 waterproof housing, die-cast aluminum heat dissipation and optional customization, it delivers bright audience effects and reliable stage lighting performance.

Lightsource

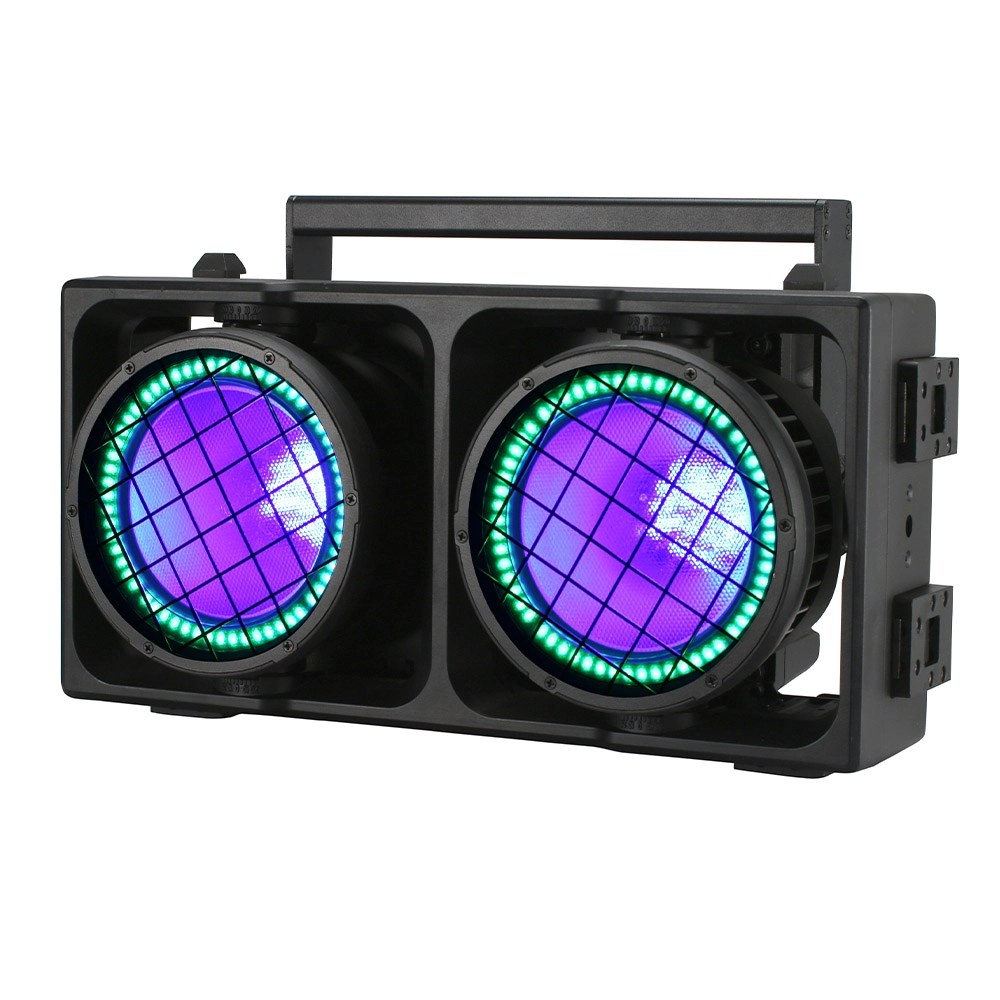

2 x 475W RGBLAC 6in1 specially supplied leds		2 x (64x0.2W) RGB 3in1 led rings
Beam angles	≥60°
Control
DMX Channel Modes	1CH DWE, 2CH DWE, 4CH DWE, 9CH DWE, 6CH STROBE, 6CH RGB, 10CH BASIC RGB, 14CH BASIC RGB, 13CH STD. RGB, 22CH STD. RGB, 24CH EXT. RGB, 33CH EXT. RGB, 12CH DIRECT, 13CH DIRECT, 19CH DIRECT, 30CH DIRECT, 45CH DIRECT, 24CH AUX, 28CH AUX, 38CH AUX
Display	Illuminated graphic LCD	Controls	4 touch sensitive, backlighted controls
Protocol	USITT DMX-512, RDM	Standalone mode	Auto Program, Color Macro, Quick Color, Tunable White, User Color
Cooling	Active, Forced Air, Temperature-regulated	Thermal protection	Automatic overtemperature protection
Connectors

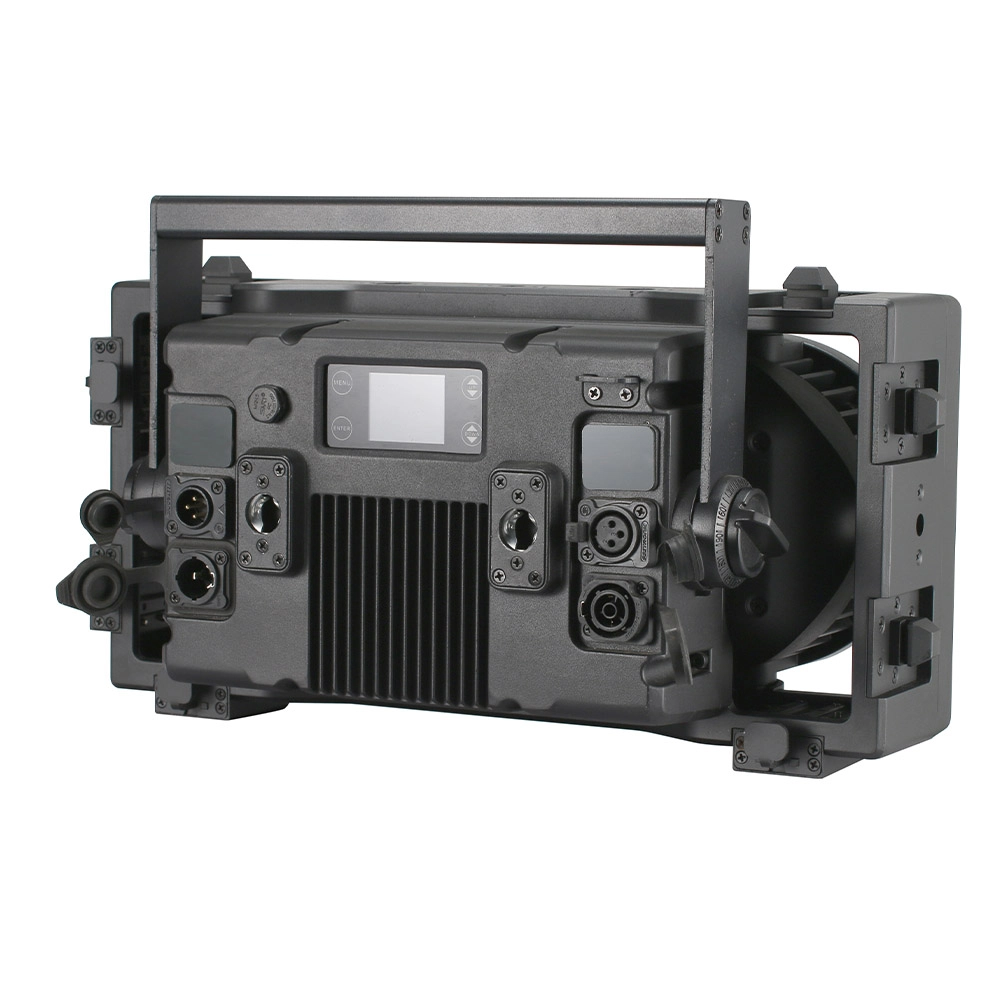

DMX I/O	Seetronic IP65 XLR 3-Pin or 5-Pin In&Out	Power I/O	Seetronic PowerCON TRUE1 In&Out
Operating Conditions
Mains voltage	100-240V AC / 50-60Hz	Max power consumption	500W
Temperature range, Operating	-40°C to 45°C
Mounting Options

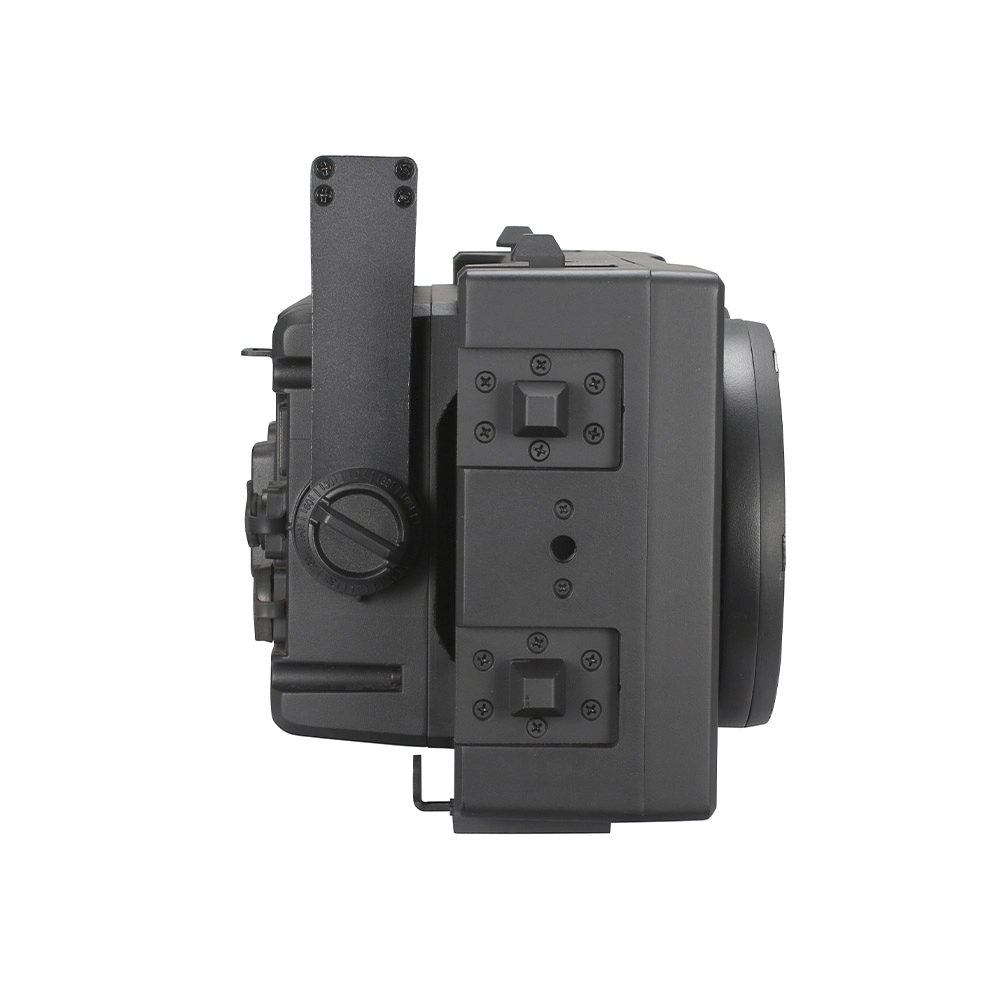

Mounting point by Yoke (included)		Safety wire attachment: foldout eyelets
Shipping
Single fixture	Cardboard	Tourpack	4-way Flight Case
Housing Colors
Standard colors	Black
Dimensions
Length	420 mm	Width	200 mm
Height (including handle)	249 mm
Weight
N.W	8.8 kg	G.W	10.5 kg
Packing Size	54x30x25.5 cm

◼

Effect

Lighting Effects

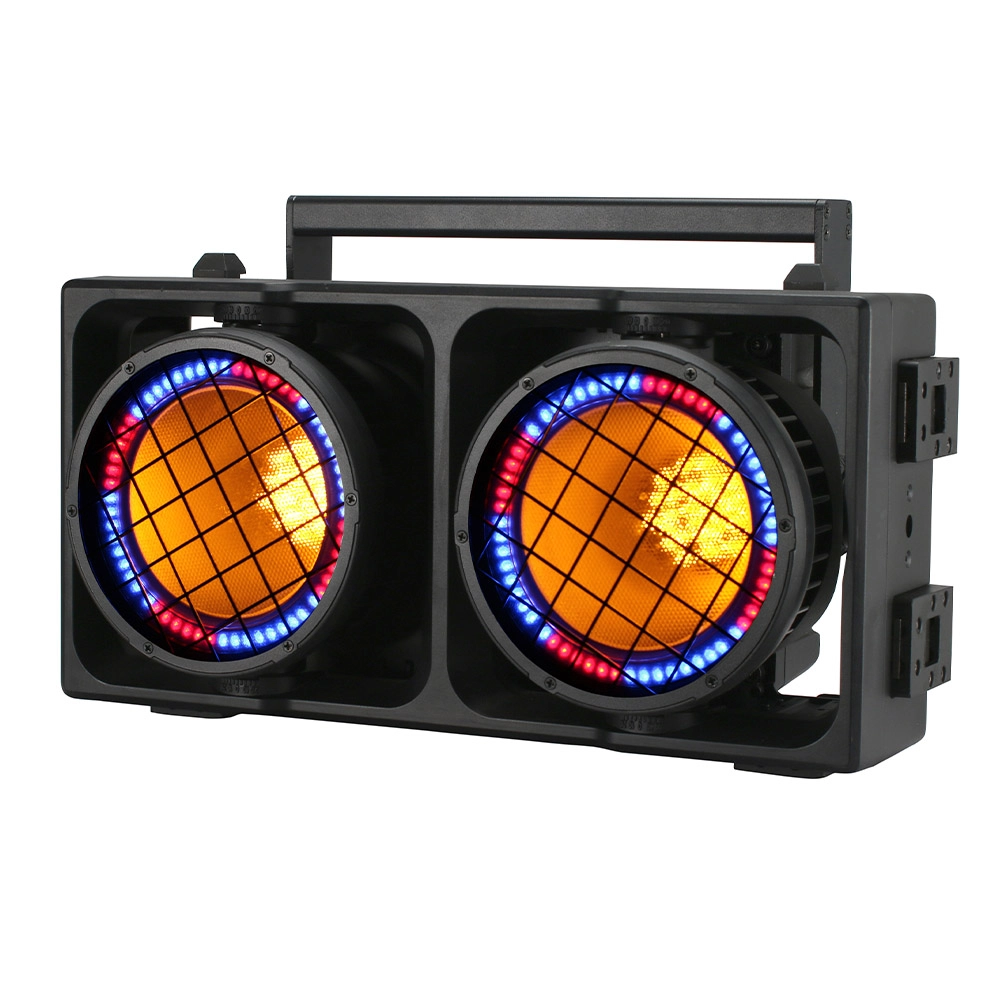

The 2 Eye Blinder RGBALC 6-in-1 IP65 creates powerful audience blinder effects with rich RGBALC color mixing. The lighting effect images show warm amber, red, green, blue and white outputs, as well as multi-unit combinations for larger visual impact. Its IP65 design supports outdoor stage use, making it suitable for concerts, festivals, clubs and live event lighting.

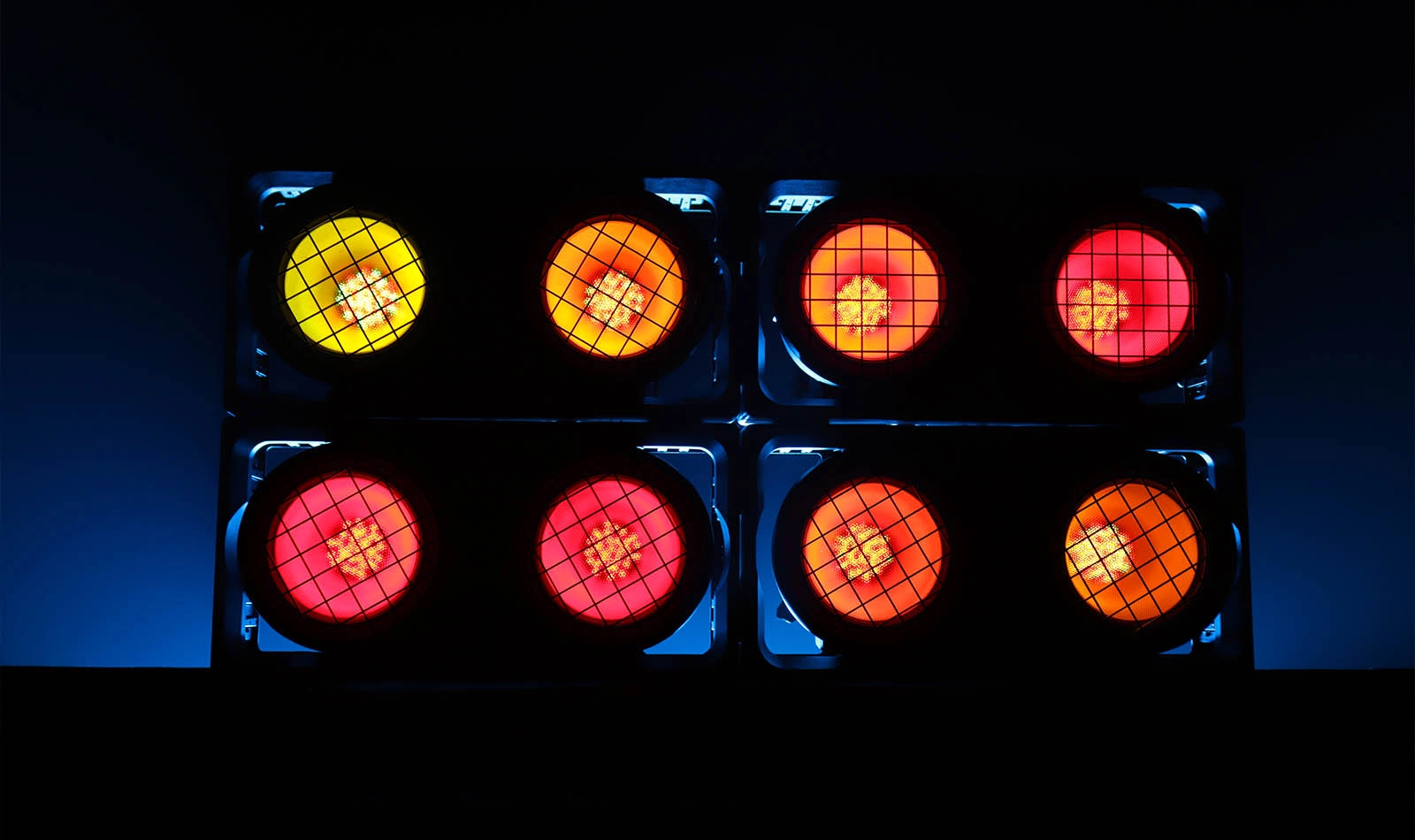

2 Eye Blinder RGBALC 6in1 IP65 showing amber and red audience blinder effects - Colorful Light

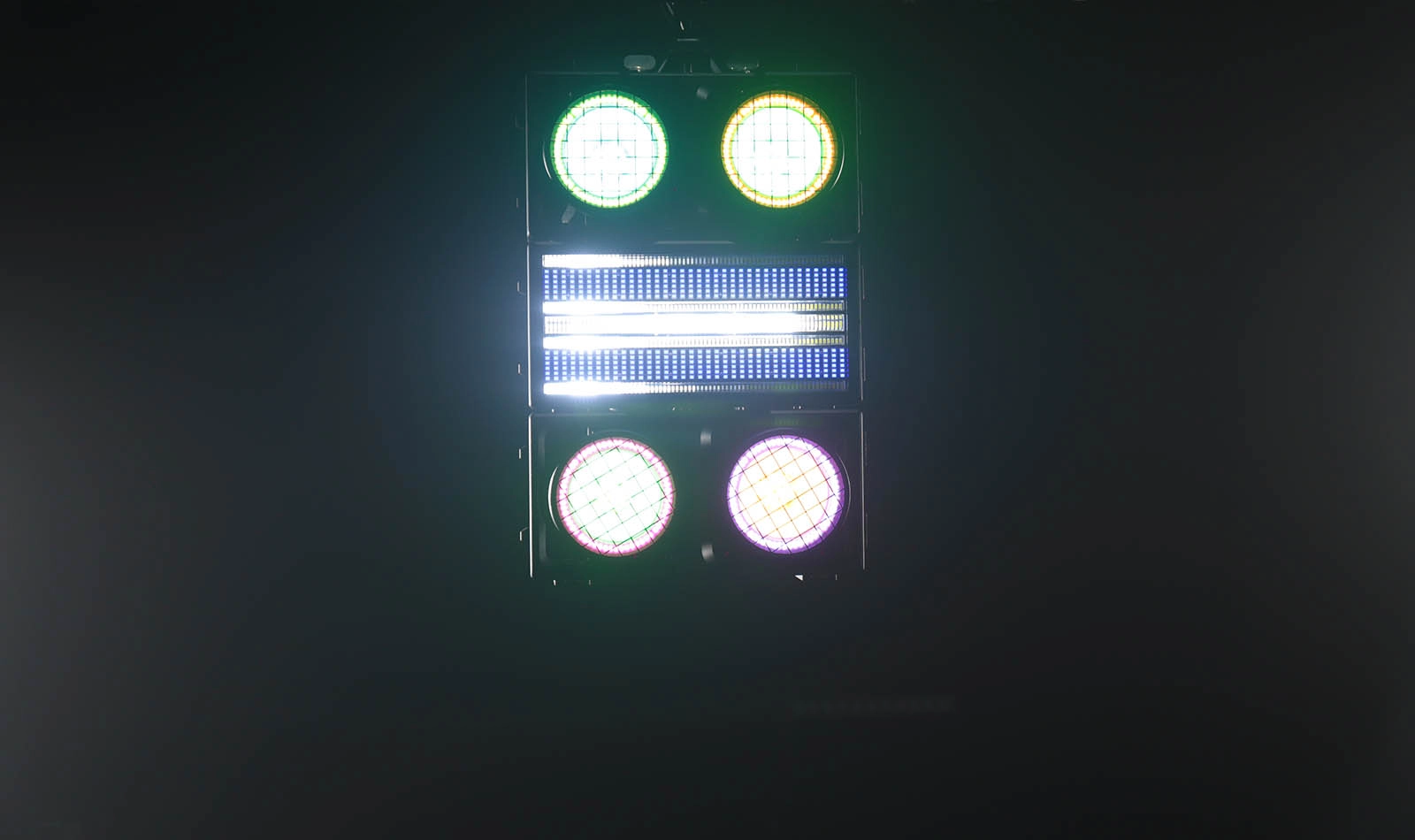

2 Eye Blinder RGBALC 6in1 IP65 combined with strobe light for stage lighting effects - Colorful Light

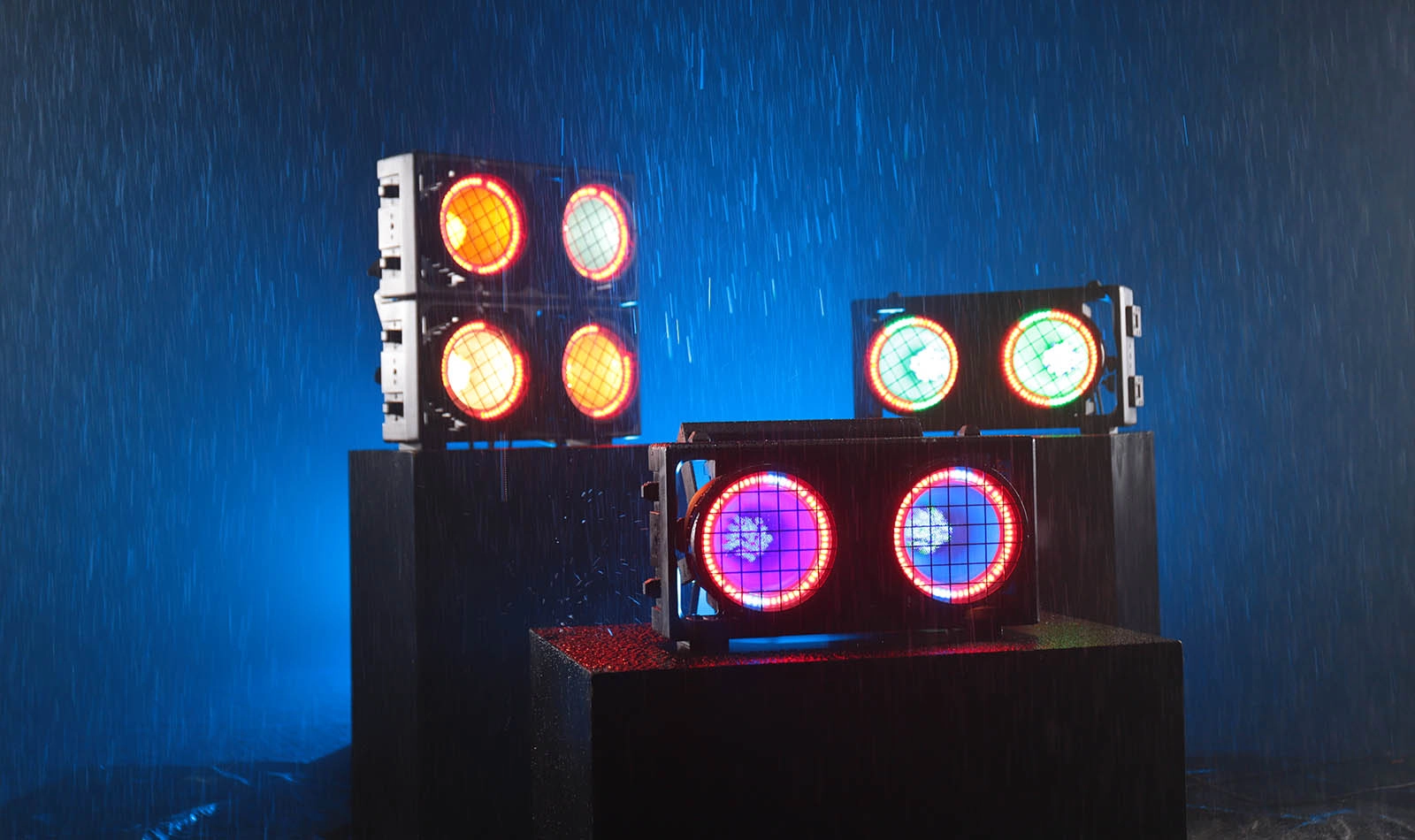

2 Eye Blinder RGBALC 6in1 IP65 outdoor lighting effect with multi-color output in rain scene - Colorful Light

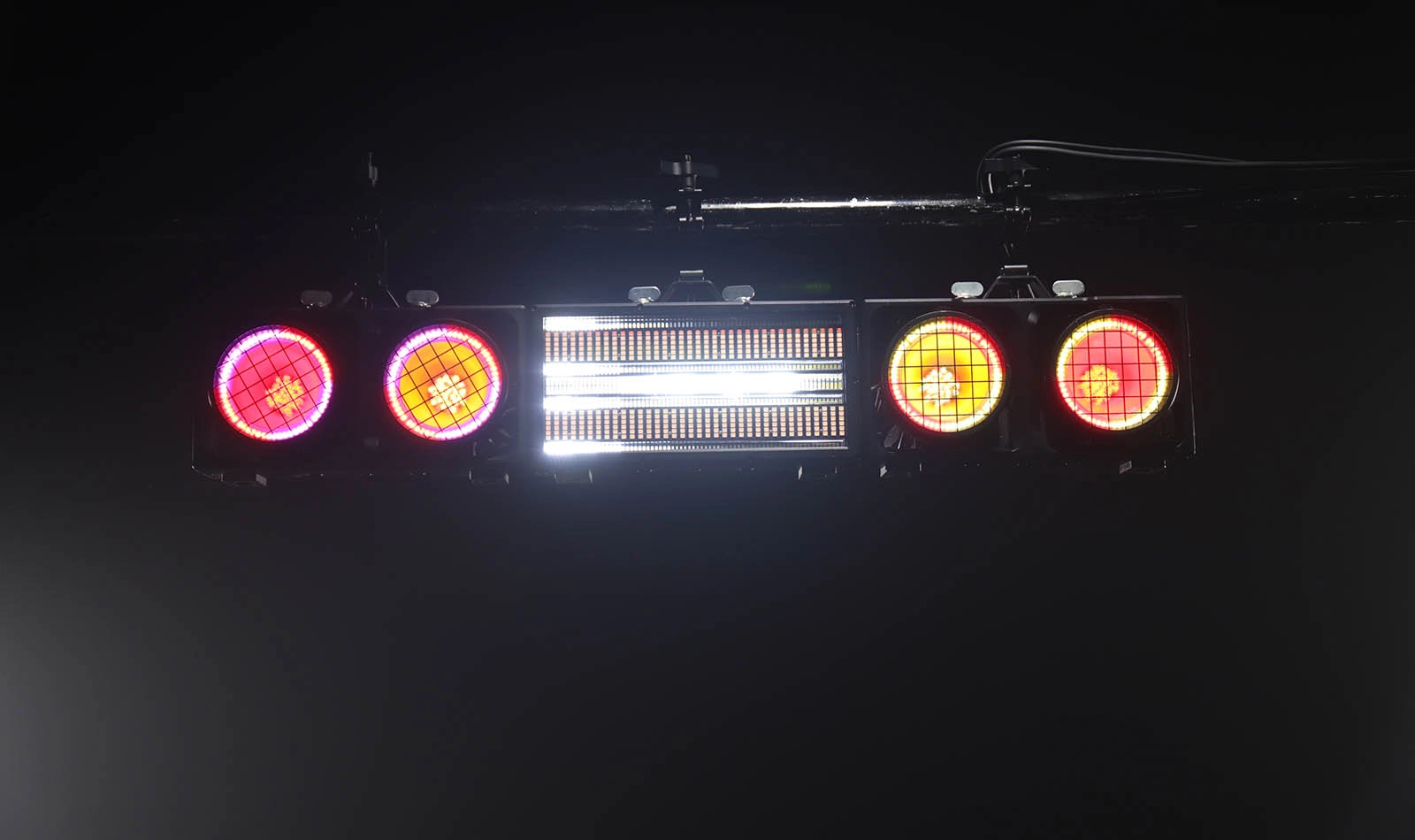

2 Eye Blinder RGBALC 6in1 IP65 modular stage blinder setup with warm color output - Colorful Light

◼

Download

Download File

Download the EPIC BLINDER User Manual to learn more about the 2 Eye Blinder RGBALC 6-in-1 IP65, including operation guidance, setup information and control instructions. This file helps lighting designers, rental companies and technical teams use the fixture correctly for stage, concert and outdoor event applications.
