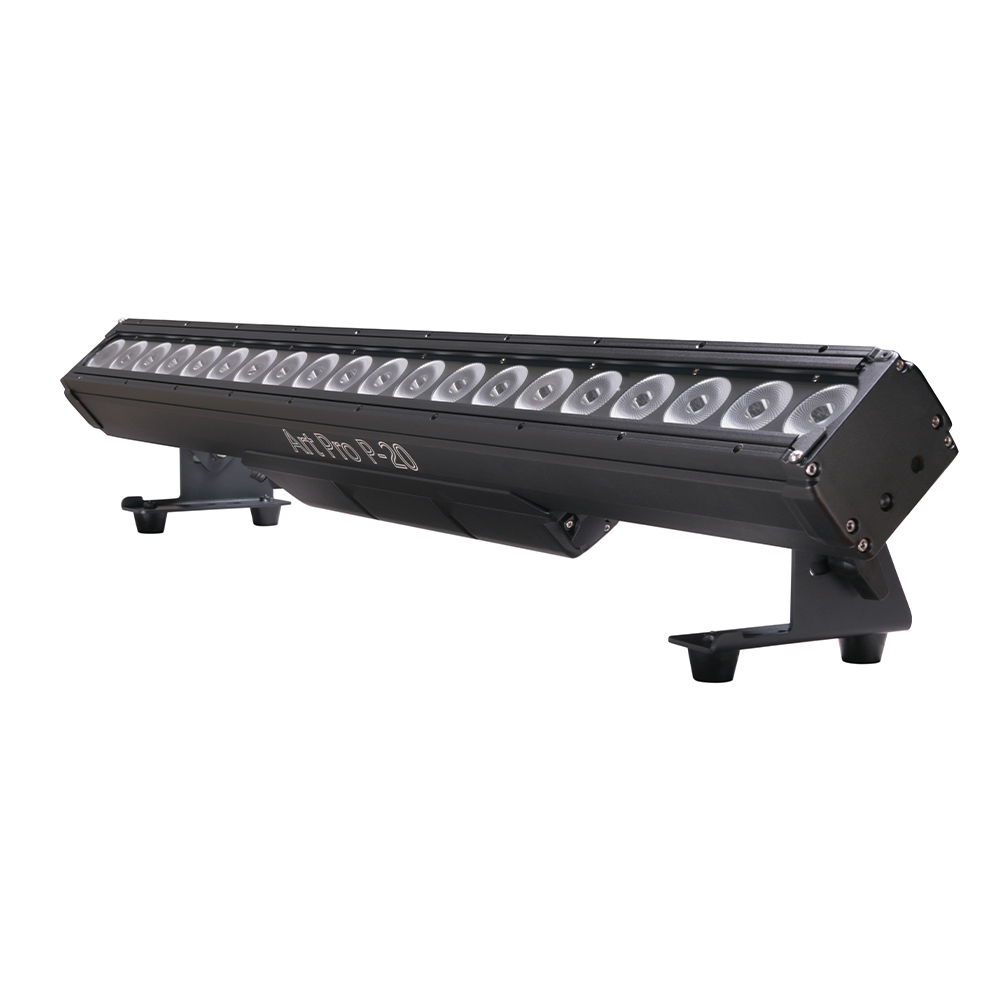

20x15w RGBW 4in1 IP65 Pixel Wall Wash Bar

The IP65 waterproof 20*15W RGBW LED pixel bar is a high-performance outdoor pixel bar light. It is equipped with 20x15W RGBW four-in-one LED beads, supports pixel-level independent light control, and can present rich colors and dynamic light effects.

With an IP65 protection rating, it is highly dustproof and waterproof, compatible with multiple control modes such as DMX512, flexible splicing and easy installation, and suitable for linear light and shadow shaping in outdoor performances, cultural and tourism lighting, stage backgrounds and other scenarios.

Get a Free Quote

Get Product Catalogs

◼

Why Choose Us

Key Features & Benefits

• Safe and Reliable: Compliant with CE and RoHS certifications.

• Cost-Effective: Factory-direct supply; supports bulk OEM/ODM orders.

• Easy Maintenance: Simple structural design results in lower maintenance costs.

• Extreme Environment Adaptability: IP65 waterproof rating; features a full die-cast aluminum housing for excellent heat dissipation, along with temperature control and overheat protection functions.

• Customization Options: Optional laser-printed logo available.

◼

Parameters

General Specifications

The 20x15W RGBW 4-in-1 IP65 Pixel Wall Wash Bar delivers RGBW color mixing and pixel wash effects for outdoor stages, events, façades and architectural lighting. With an IP65 waterproof die-cast aluminum housing, stable heat dissipation, temperature control and overheat protection, it supports reliable professional use.

Light Source
AC90-240V, 50/60HZ		400W power consumption
20 x 15W RGBW 4IN1 LEDs		50,000 hours expected lifetime
Optional	6°,15°,20°,25°,45°
Control
Each LED can be controlled individually		DMX512, RDM, Master-Slave, Auto
11/27/80/91 DMX channels		0-100% 8/16bit linear dimming
1-20 times/second strobe
Construction
Cast aluminum body		IP65 rating

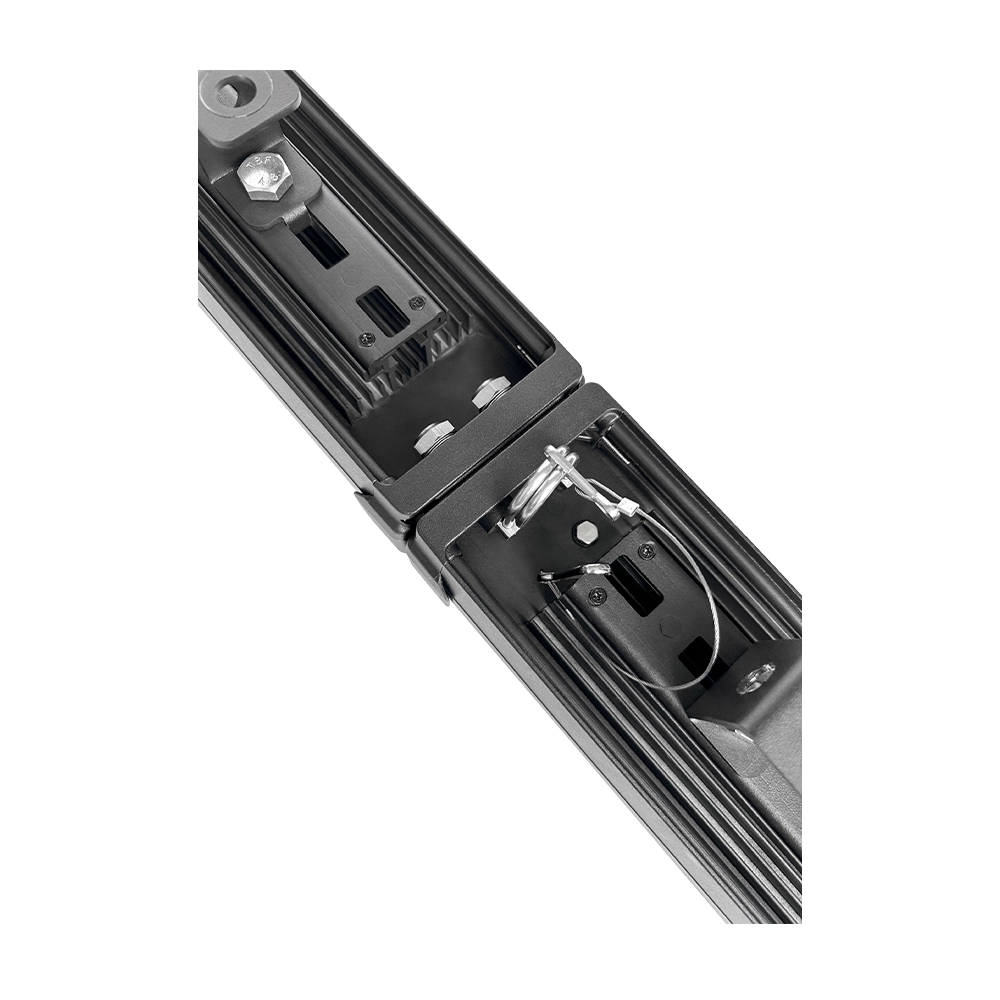

2 x two quarter-turn locking points for two Omega brackets		Bottom mount for safety wire
IP65 PowerCON True1 in and out，IP65 DMX in and out
Size and Weight
Carton	2 in 1, Case: 4 in 1 or 8 in 1	Light	L1004 x W96 x H130（Bracket H178) mm
Carton size(2in1)	1270 x 320 x 220mm	Case size(8in1)	1180 x 600 x 550 mm
Case size(4in1)	1180 x 580 x 400 mm	Light Net Weight	9.5KG，Gross 2in1 22.5KG，
Case 8in1	115 KG	Case 4in1	71 KG
Optional Accessories
PMMA froster	PMMA cover	Mask face	Barndoor
Stand plate + Stand & Hang Components	Infinite rotation engine	Clamp	Flight case

◼

Suitable For

Applications

The 20x15W RGBW 4-in-1 IP65 Pixel Wall Wash Bar is ideal for outdoor shows, concerts, festivals, arena lighting, truss installations and architectural projects. With RGBW color mixing, pixel wash output and IP65 protection, it creates bright color accents, dynamic visual lines and reliable outdoor lighting effects.

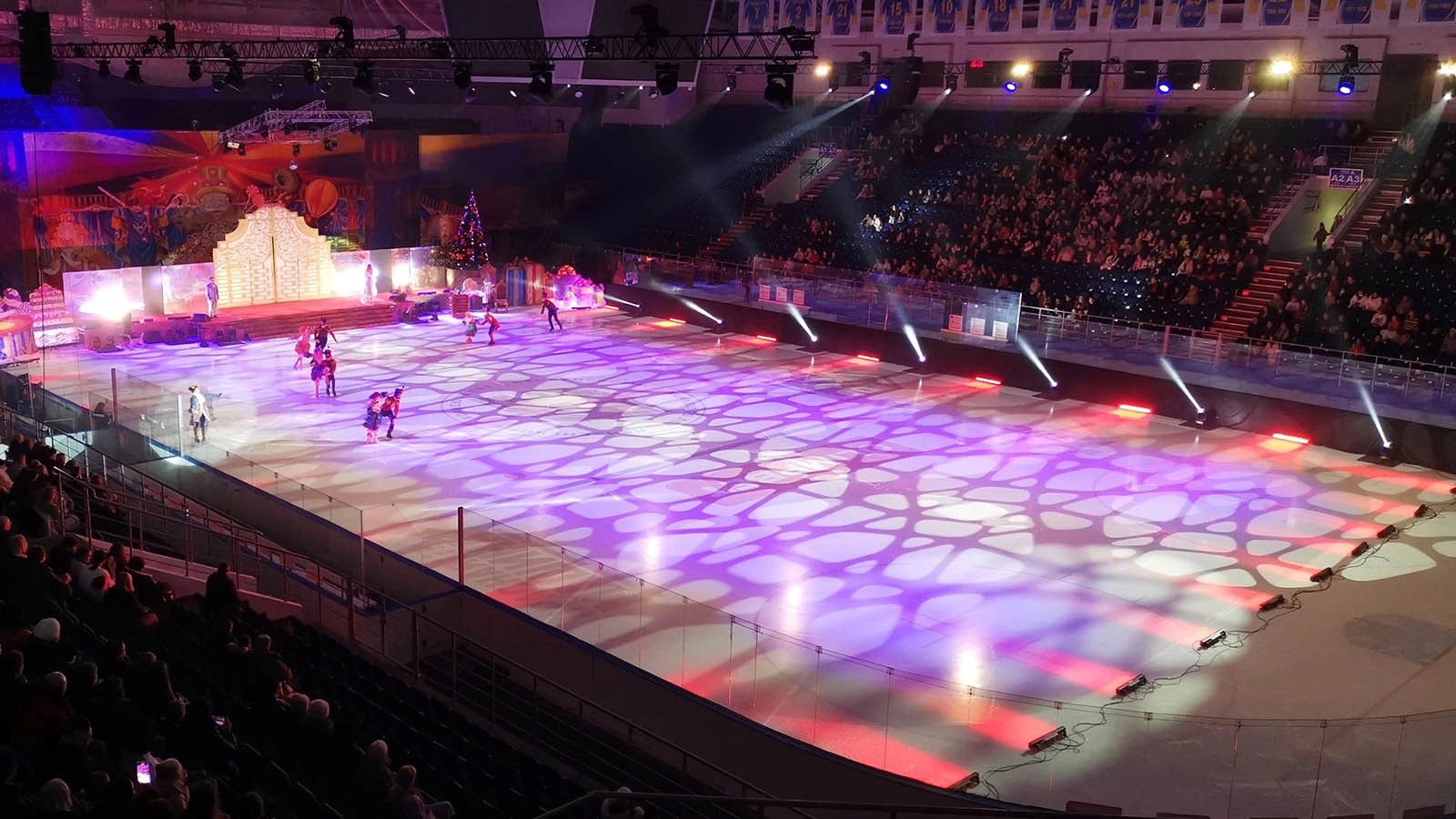

20x15W RGBW 4in1 IP65 Pixel Wall Wash Bar used for arena ice show lighting - Colorful Light

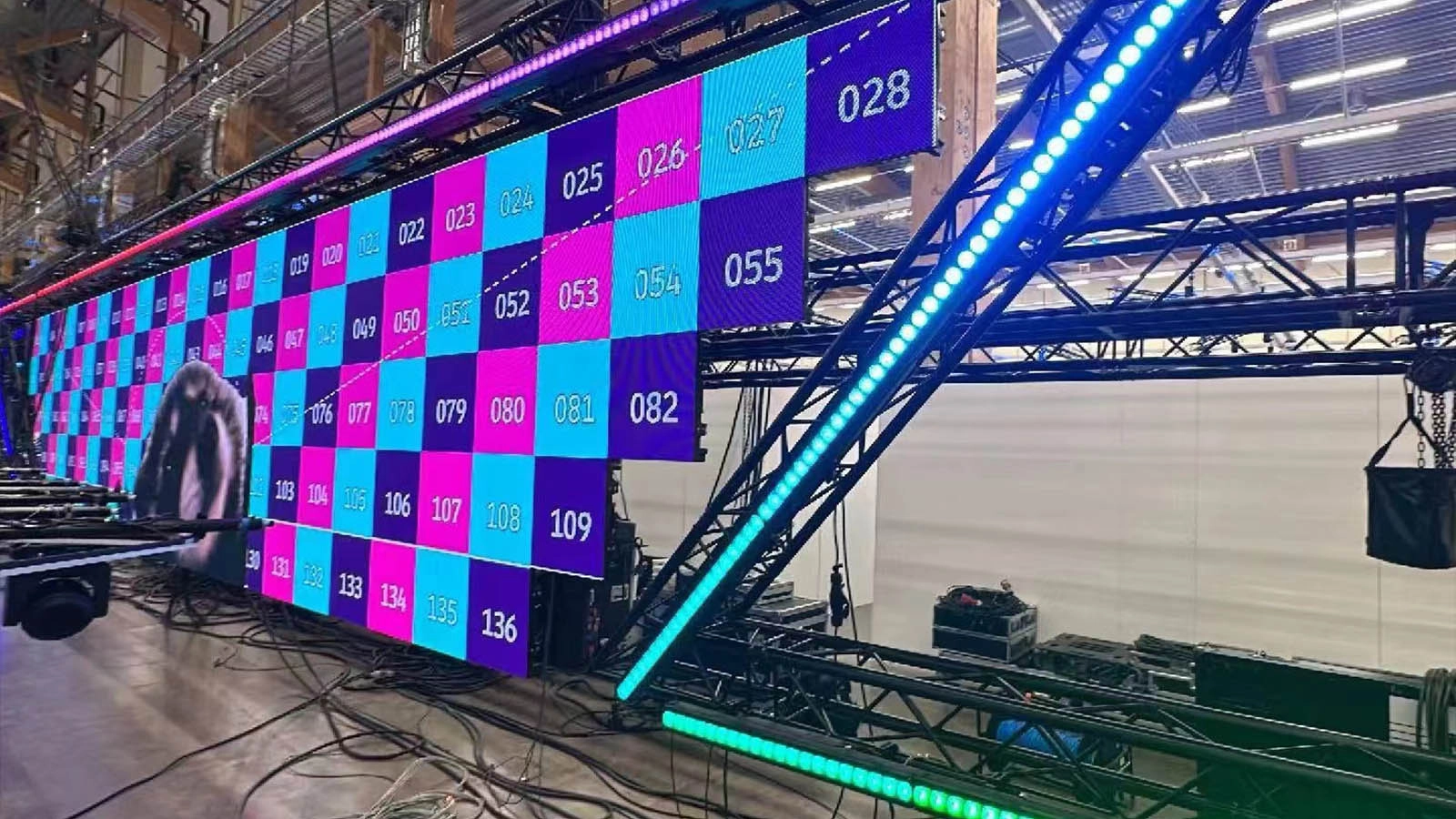

20x15W RGBW 4in1 IP65 Pixel Wall Wash Bar installed on truss for pixel wash effects - Colorful Light

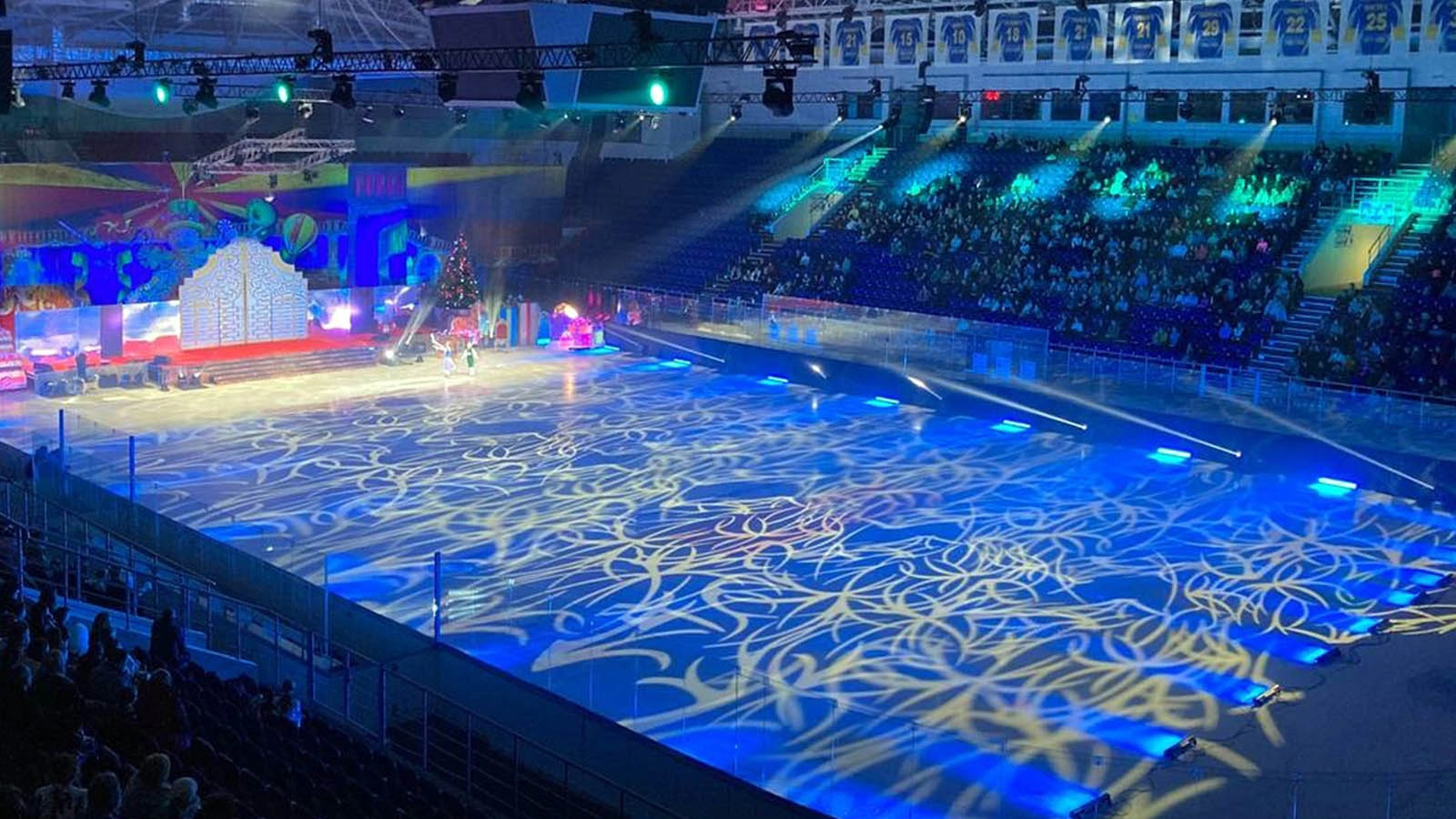

20x15W RGBW 4in1 IP65 Pixel Wall Wash Bar creating blue wash effects for large indoor arena - Colorful Light

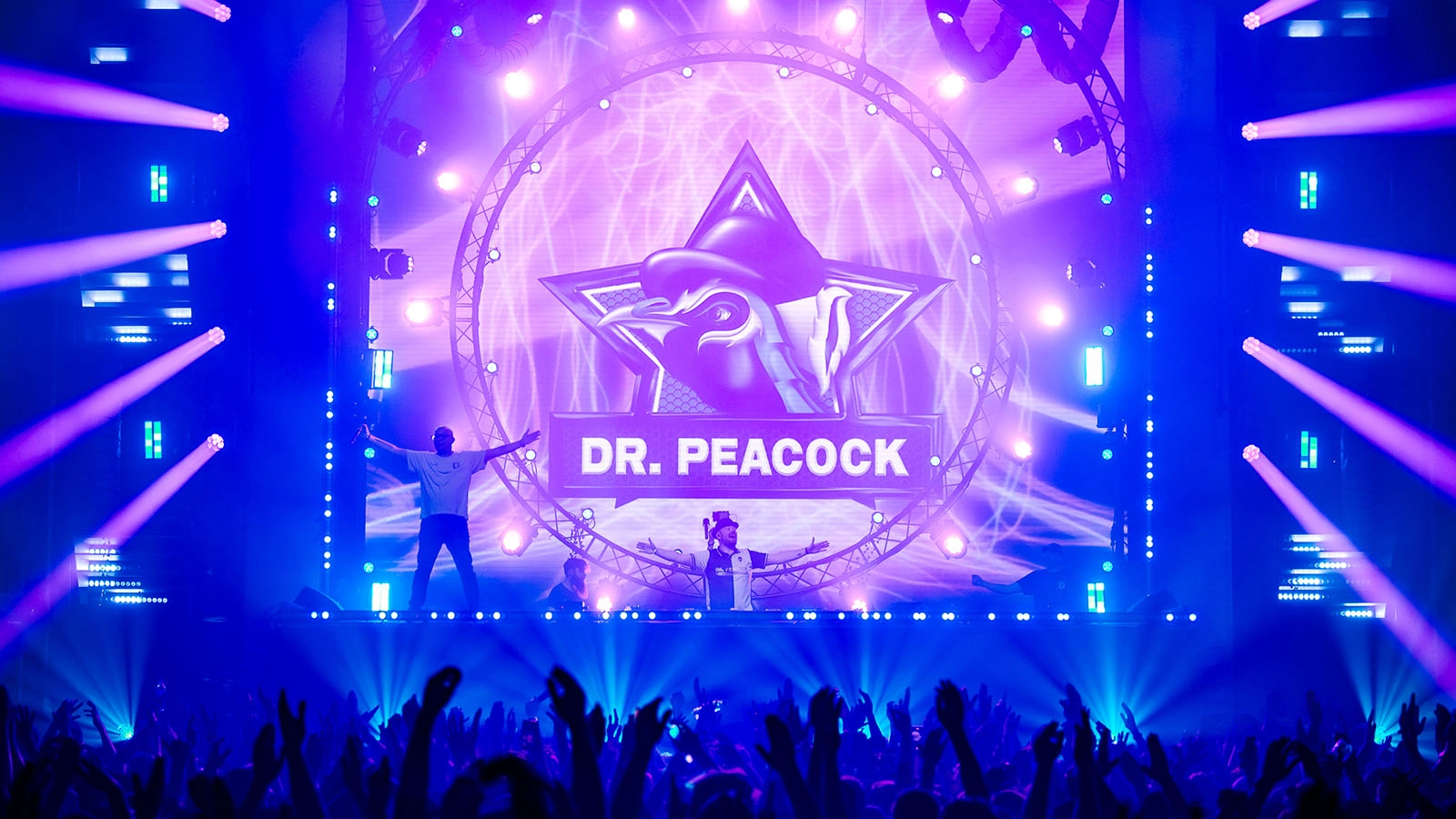

20x15W RGBW 4in1 IP65 Pixel Wall Wash Bar used for concert stage background lighting - Colorful Light

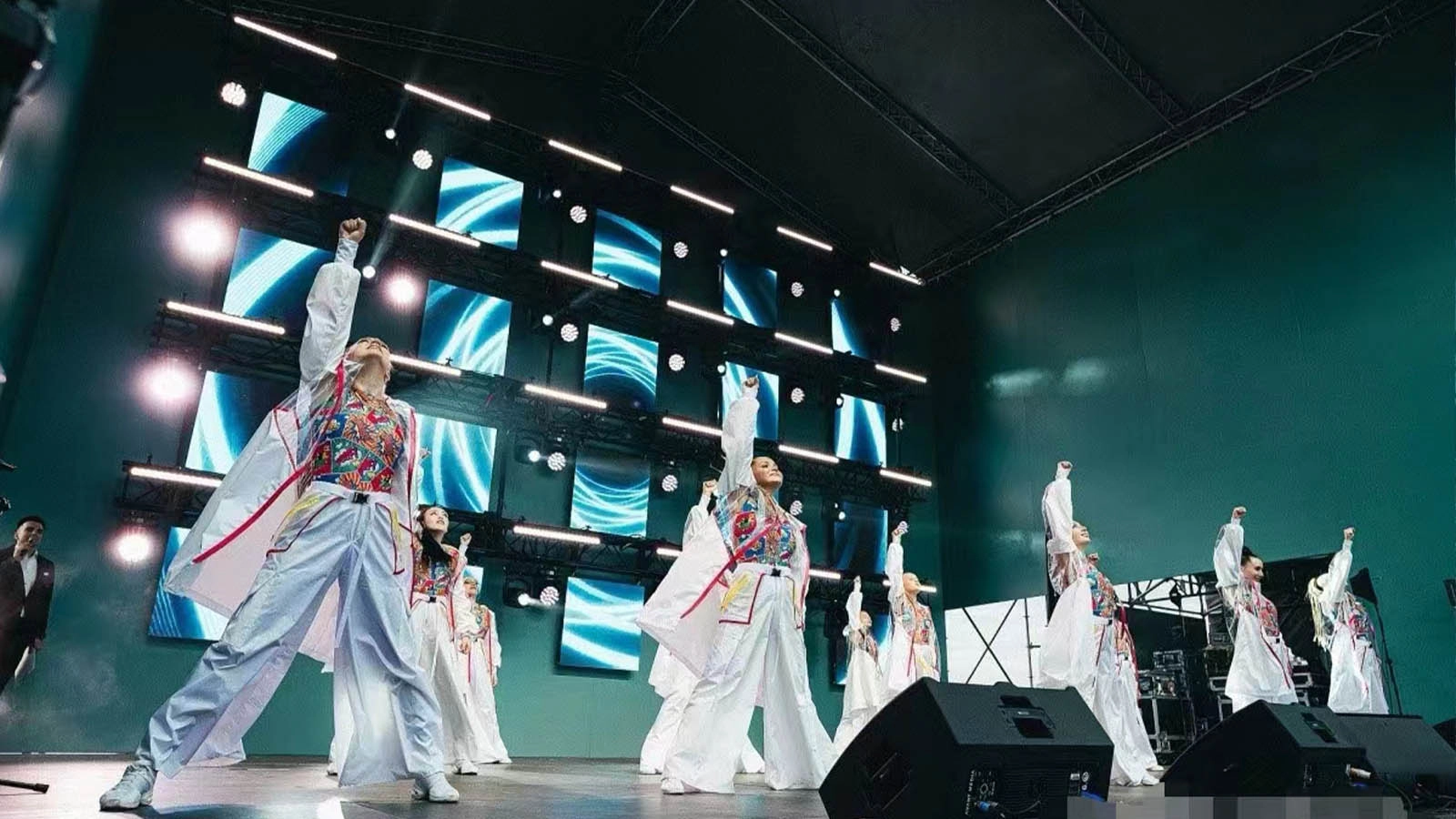

20x15W RGBW 4in1 IP65 Pixel Wall Wash Bar for live performance stage wash lighting - Colorful Light

◼

Download

Download File

Download the P-20 NEW User Manual for the 20x15W RGBW 4-in-1 IP65 Pixel Wall Wash Bar. This PDF provides product operation guidance, setup information and control instructions to help technicians, rental companies and stage lighting teams use the fixture correctly for outdoor events, stage projects and architectural wash lighting.
