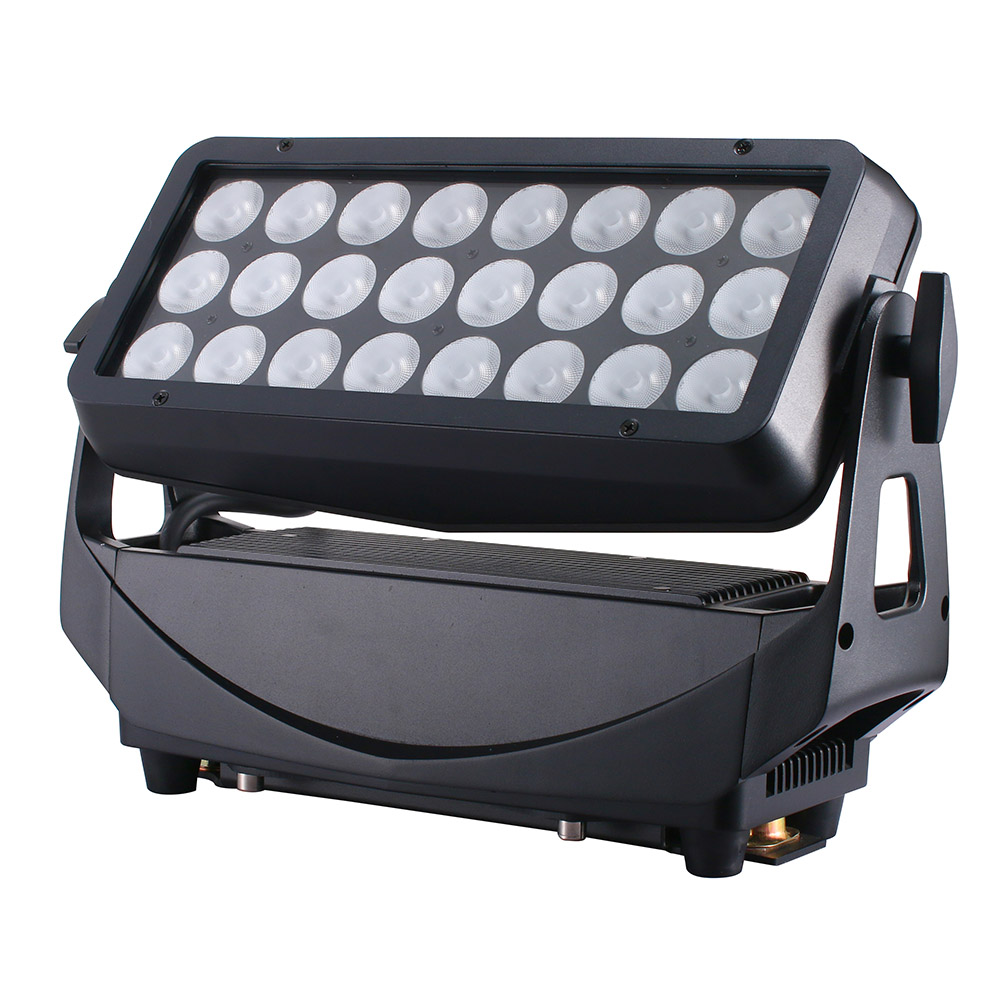

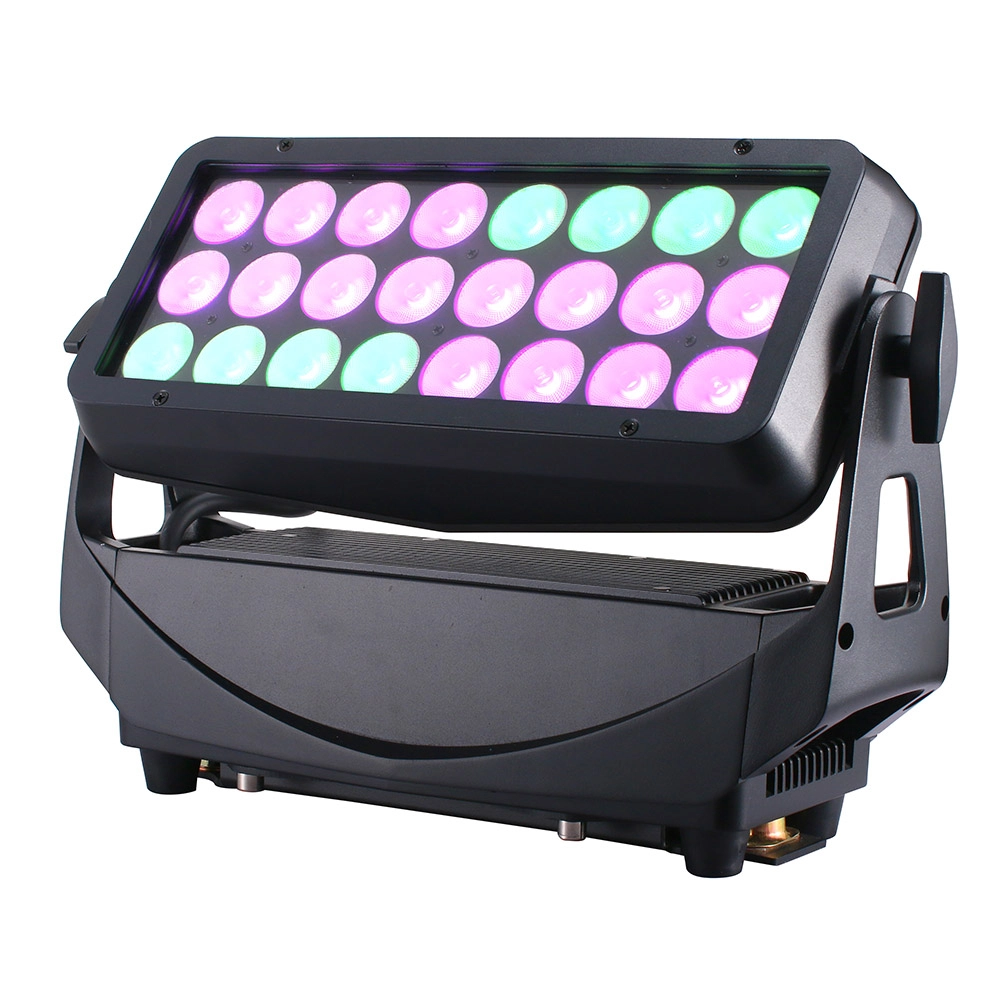

24x20w RGBW 4in1 IP65 Wall Wash 6 Segments

24*20W RGBW IP65 waterproof LED wash floodlight. Features uniform RGBW four-color mixing, 6 segement.W-DMX(optional).IP65 protection to withstand complex outdoor weather conditions, flexible light control, and suitability for architectural lighting, cultural and tourism landscapes, and other applications.( support sgm P6 channel)

Get a Free Quote

Get Product Catalogs

◼

Why Choose Us

Key Features & Benefits

• Safe and Reliable: Compliant with CE and RoHS certifications.

• Lightweight and Modular: Features a 6-segment design with a total weight of just 6.6 kg.

• Cost-Effective: Factory-direct supply; supports bulk OEM/ODM orders.

• Easy Maintenance: Simple structural design results in lower maintenance costs.

• Extreme Environment Adaptability: IP65 waterproof rating; features a full die-cast aluminum housing for excellent heat dissipation, complete with temperature control and overheat protection functions.

• Customization Options: Optional features include laser-printed logos, W-DMX (LumenRadio) support, barn doors, diffusion filters, and frost filters.

◼

Parameters

General Specifications

The 24x20W RGBW 4-in-1 IP65 Wall Wash 6 Segments is a professional outdoor LED wall wash light designed for stage shows, concerts, events, architectural lighting and cultural tourism projects. It features 24 × 20W RGBW 4-in-1 LEDs, 6-segment control and IP65 waterproof protection, delivering bright color mixing, smooth wash effects and reliable performance for indoor and outdoor lighting applications.

Light Source
Source	24X20W 4-IN-1 RGBW LEDs	Flicker free operation for broadcast TV and FILM
Life Span	50,000 hours	The life span may vary depending on several following factors but not limited to	Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling Control, and Dimming, etc)
Optics
24PCS high efficiency acrylic lens		5°/10°/15°/25°/40°/15°x40° Lens optional

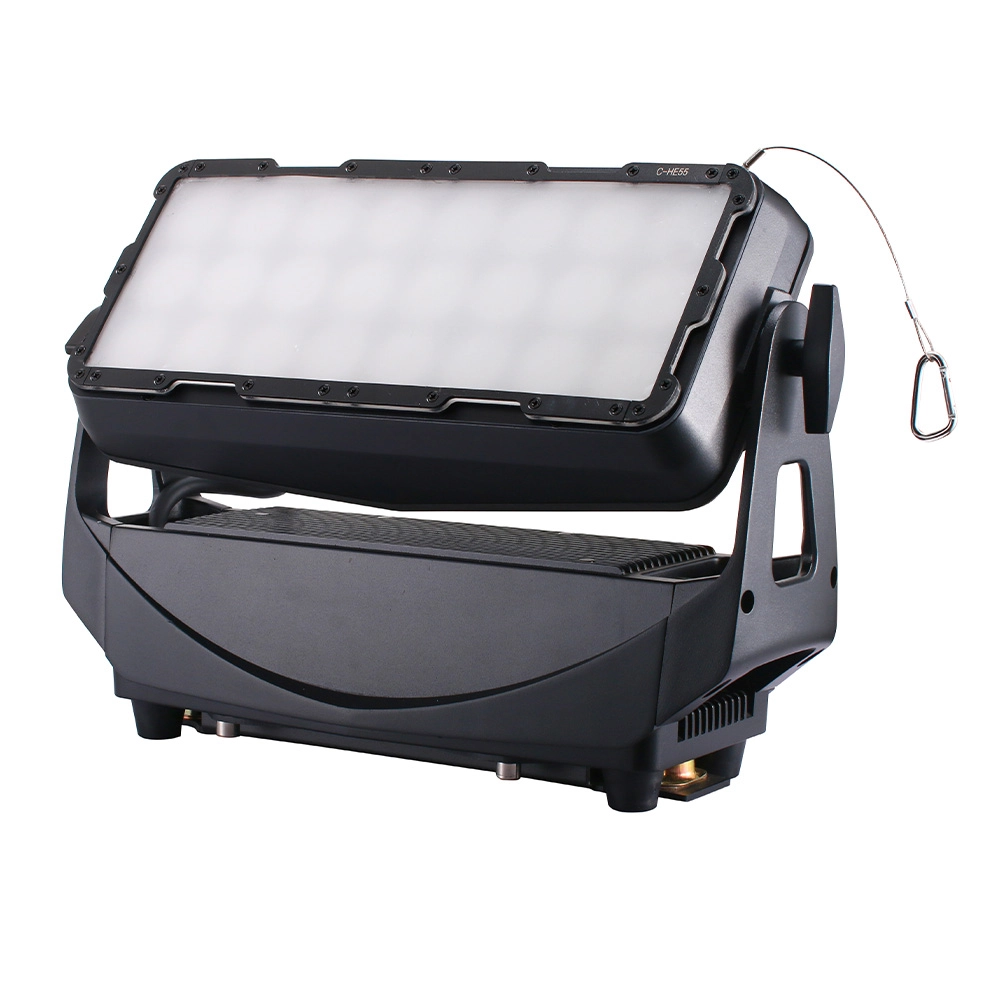

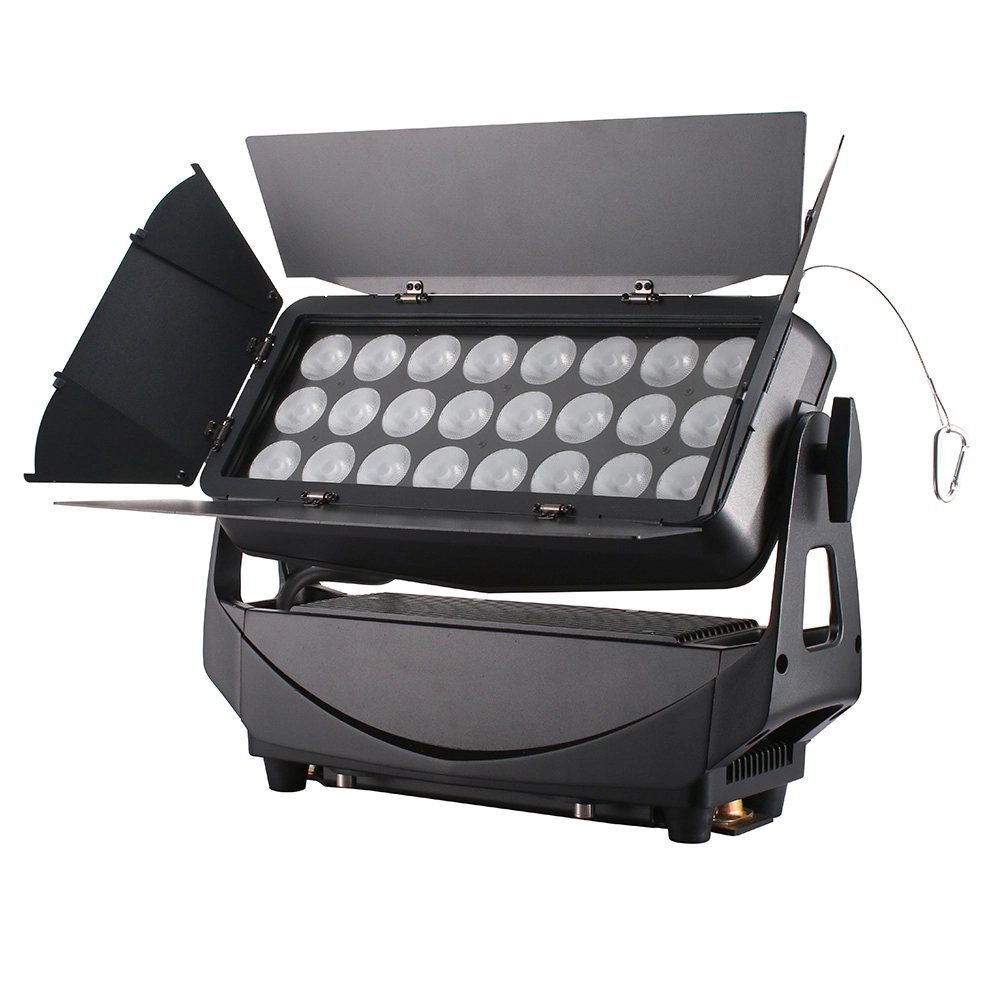

Magnetic diffuser / frost filter (optional)		Magnetic 8 way barndoors (optional)
Colors
6 Segments controllable individually		Sophisticated 4 colors RGBW mixed
Even and soft light		Coverage with pure mixing
Preset color macros
Strobe Effect
0-25Hz high speed shutter/strobe effect with variable speed
Dimming System
0-100% Smooth linear LED dimming		Smoother dimming mode available
Control System
8/13/16/21/25/40 DMX channels		DMX512, RDM, Master-slave, Auto, W-DMX (optional)
Multi preset internal programs		Shielded input signal protection for stable signal without interference

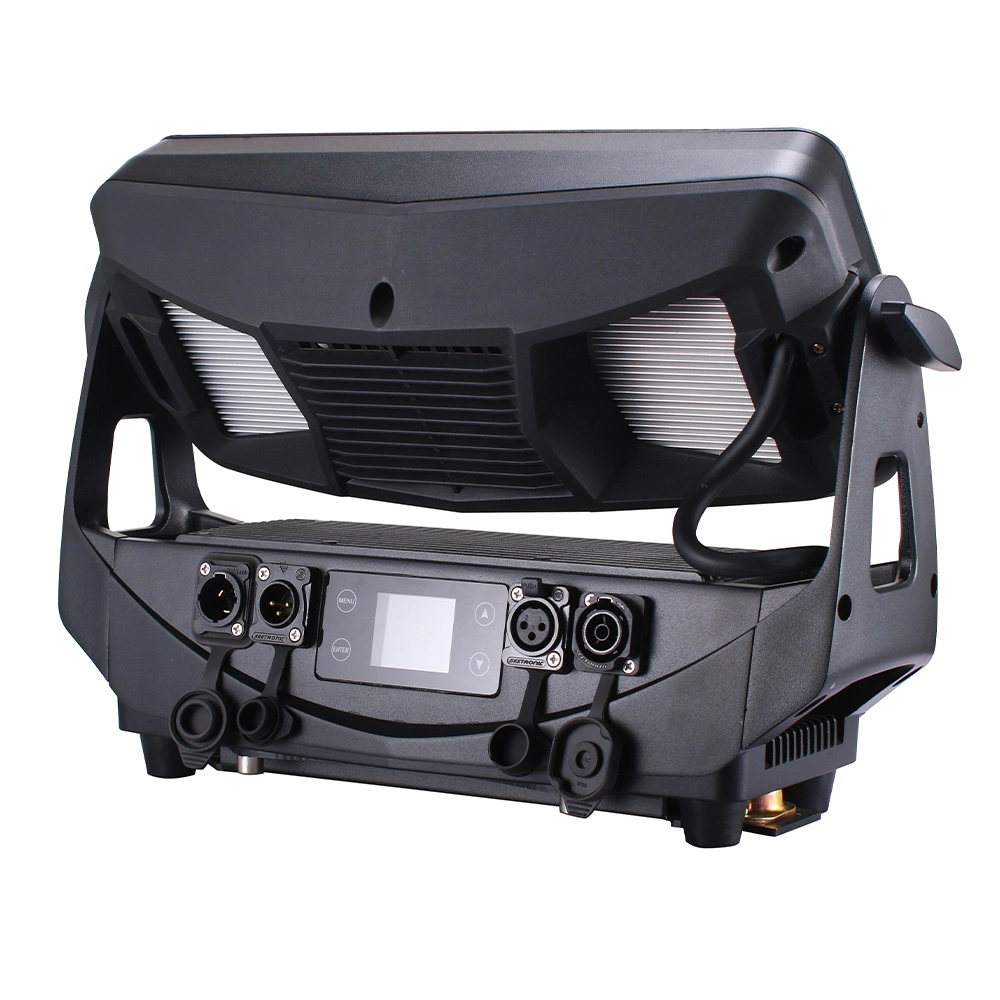

Seetronic IP65 3-Pin or 5-Pin XLR connectors IN/OUT
Display System
1.77" TFT LCD display		English/Chinese menu
4 control touch buttons		180°Reversible for LCD display
Display auto OFF
Cooling System

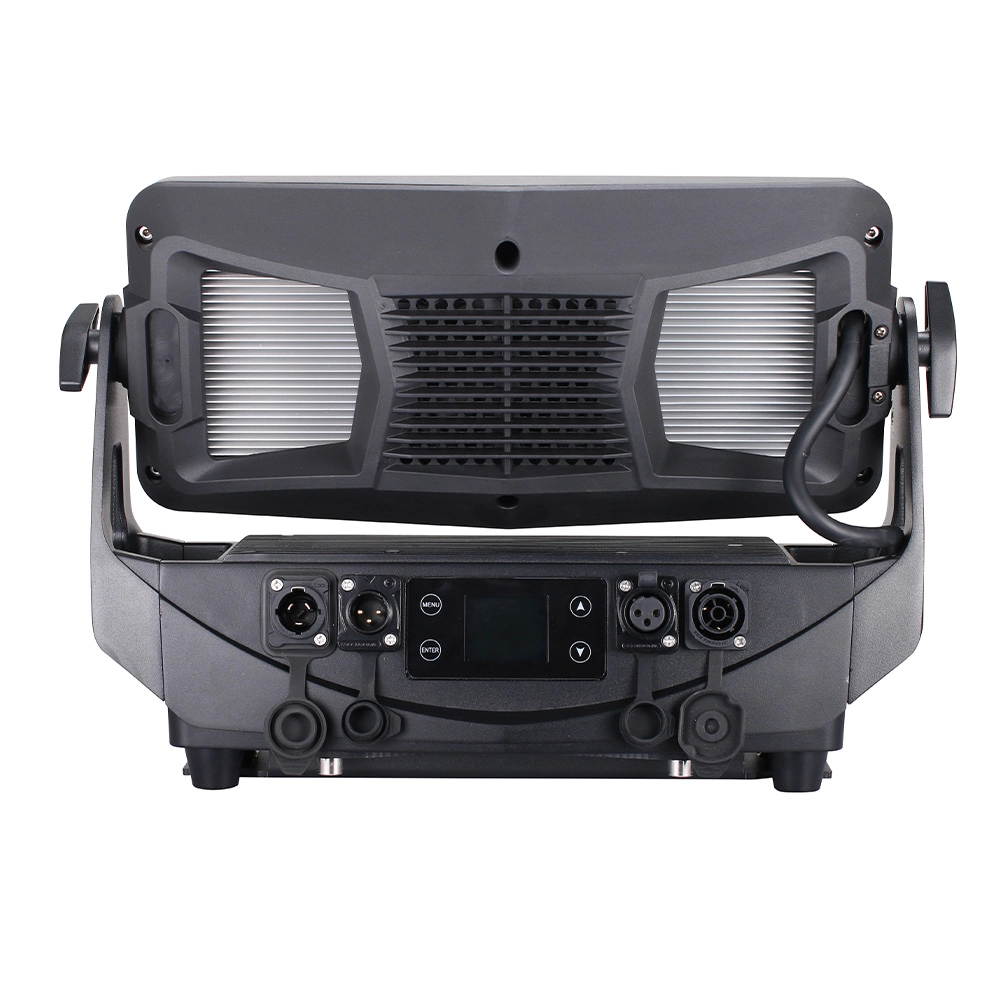

Active, Forced Air, Temperature regulated		Over temperature protection management
Power Supply
600W Power supply		AC100-240V 50/60Hz
Seetronic IP65 PowerCON TRUE1 IN/OUT
Housing
Aluminium, steel, plastic PC/ASA, rubber, Lens PE and tempered glass front		Tilt angle manually adjustable
Two side handles on base		Exterior finish	Black
Installation
2*1/4 turn fastening Omega Clamps		1*Safety attachment point
Operating Condition
Operating positions	All (device on floor or fixed to a support)	-25° to 45° ambient temperature
IP65 protection rating
Weight
N.W.	6.6kg
Dimensions
Product Dimensions	420(D)140(W)265(H)mm

◼

Effect

Lighting Effects

The 24x20W RGBW 4-in-1 IP65 Wall Wash 6 Segments delivers bright and even wash effects for professional stage and outdoor lighting. The lighting effect images show green, red, yellow, purple, white and warm color output, creating rich background washes and strong atmosphere for concerts, events, façades and cultural tourism projects.

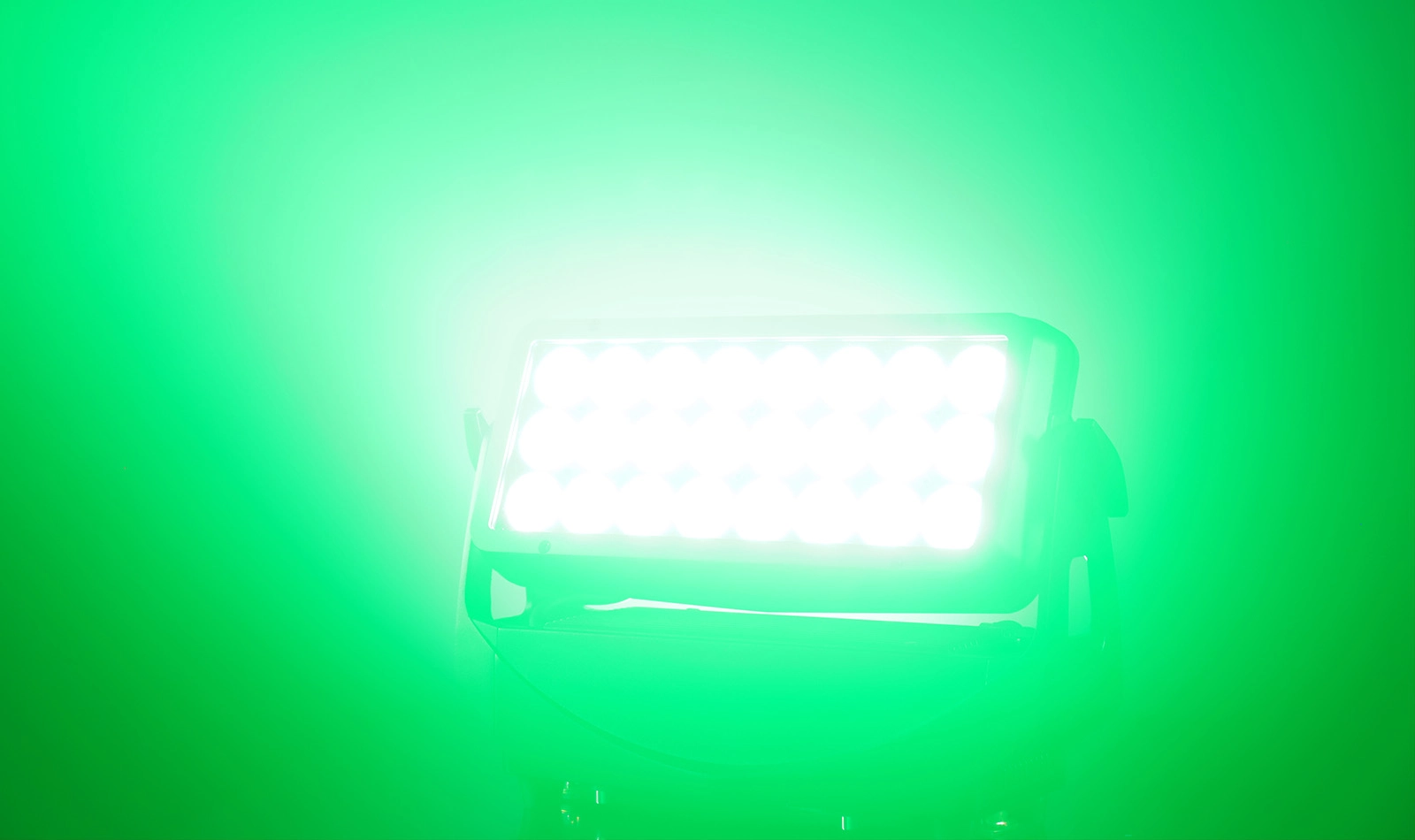

24x20W RGBW 4in1 IP65 Wall Wash 6 Segments showing green wash effect - Colorful Light

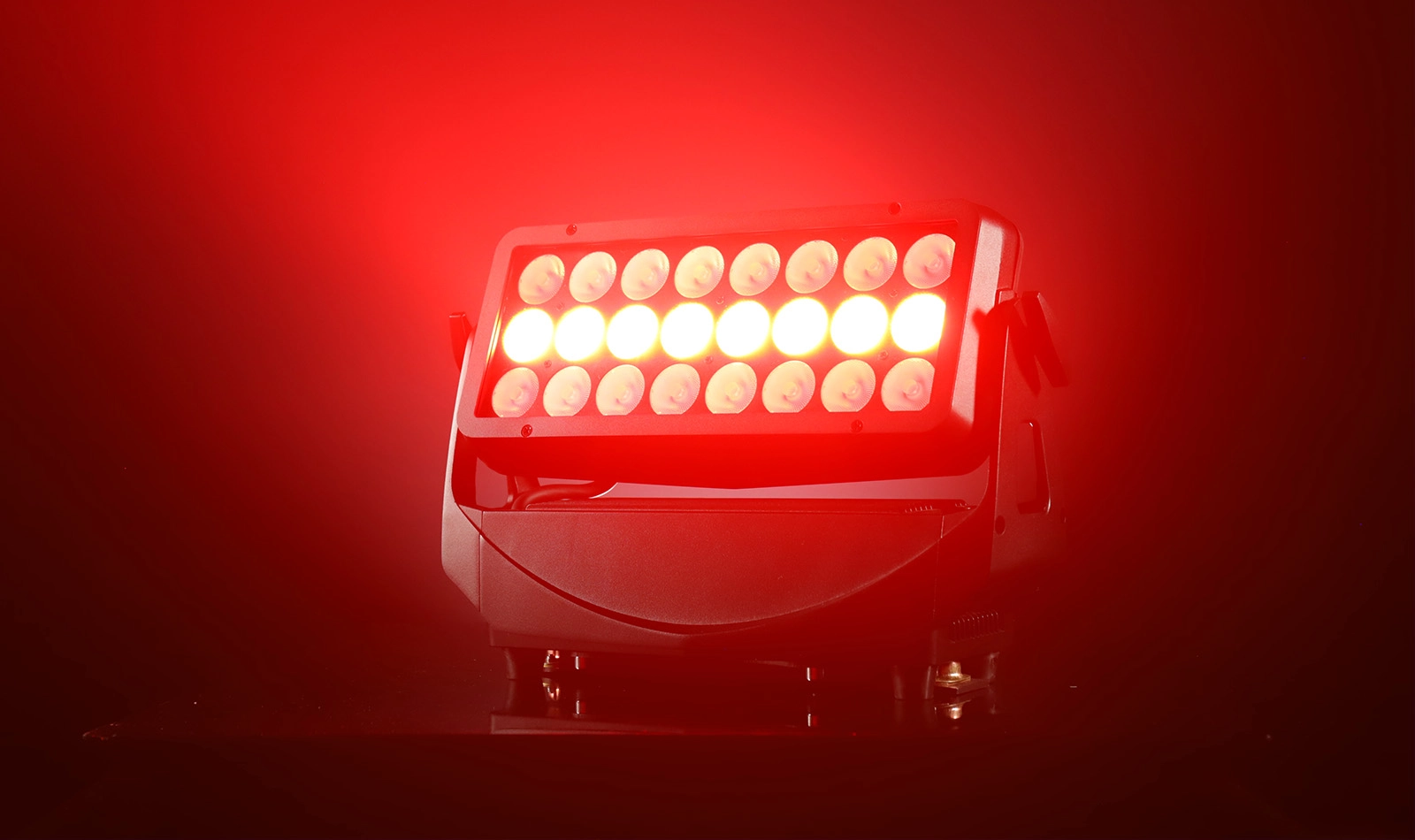

24x20W RGBW 4in1 IP65 Wall Wash 6 Segments with red wash output - Colorful Light

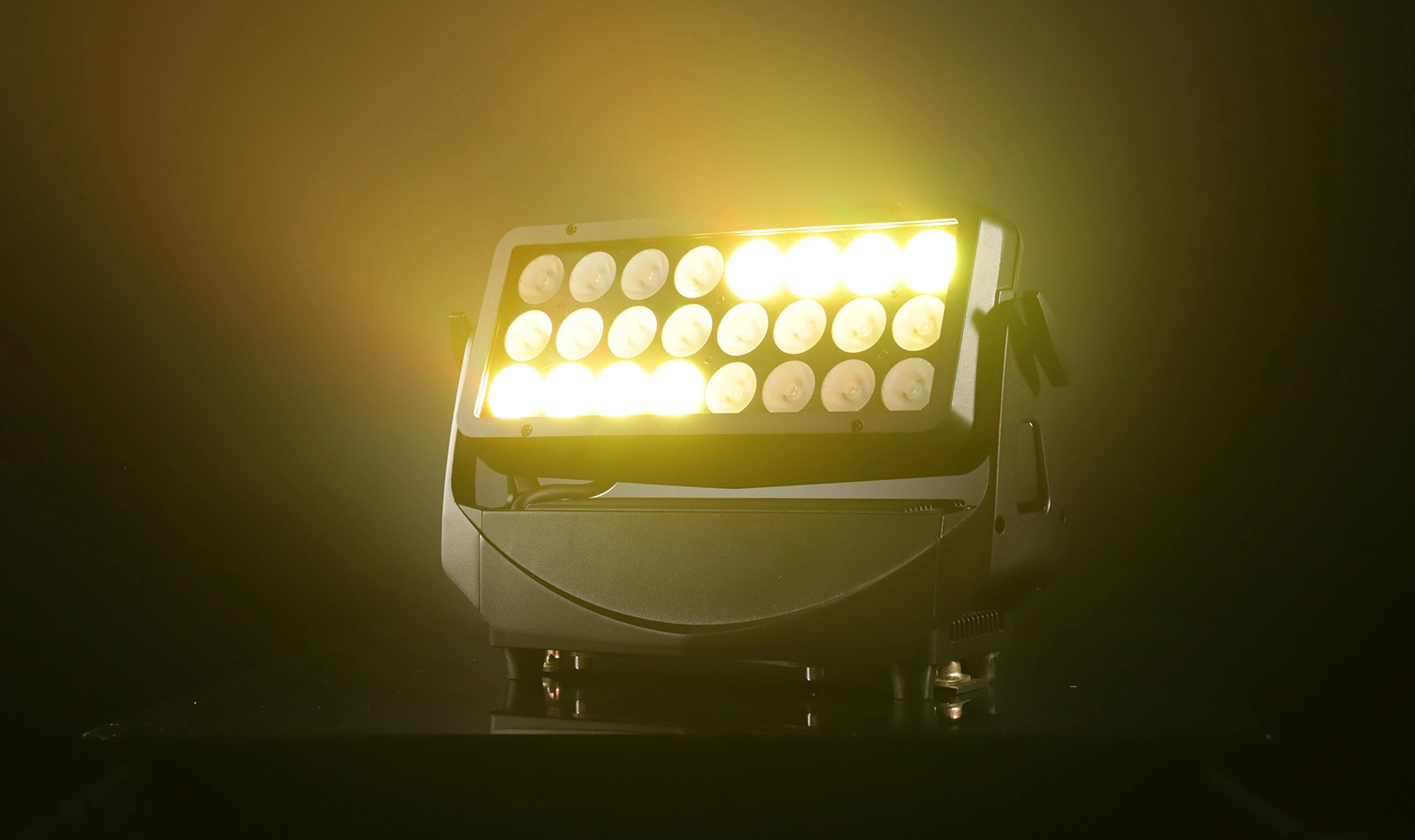

24x20W RGBW 4in1 IP65 Wall Wash 6 Segments producing warm yellow wash effect - Colorful Light

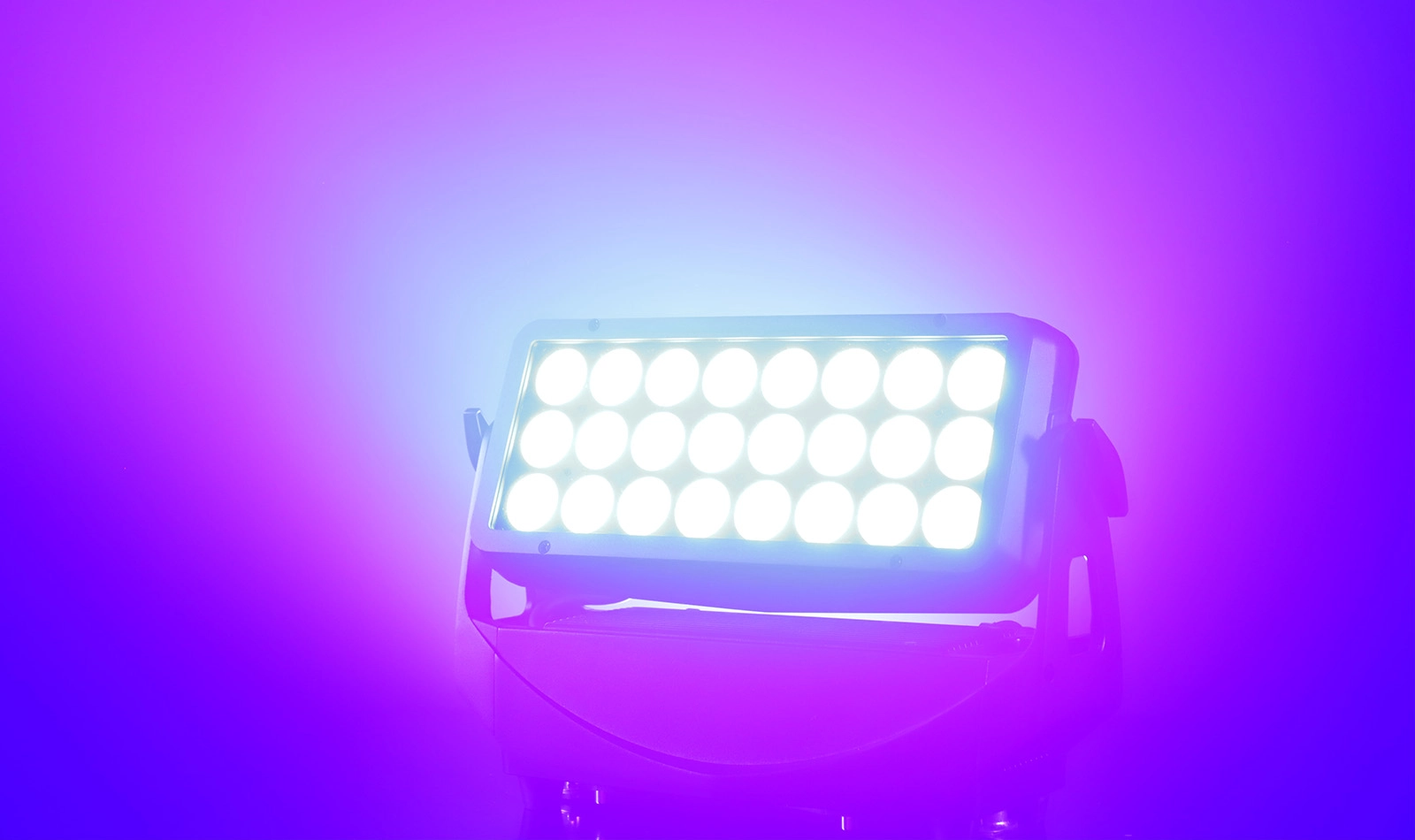

24x20W RGBW 4in1 IP65 Wall Wash 6 Segments with purple stage wash effect - Colorful Light

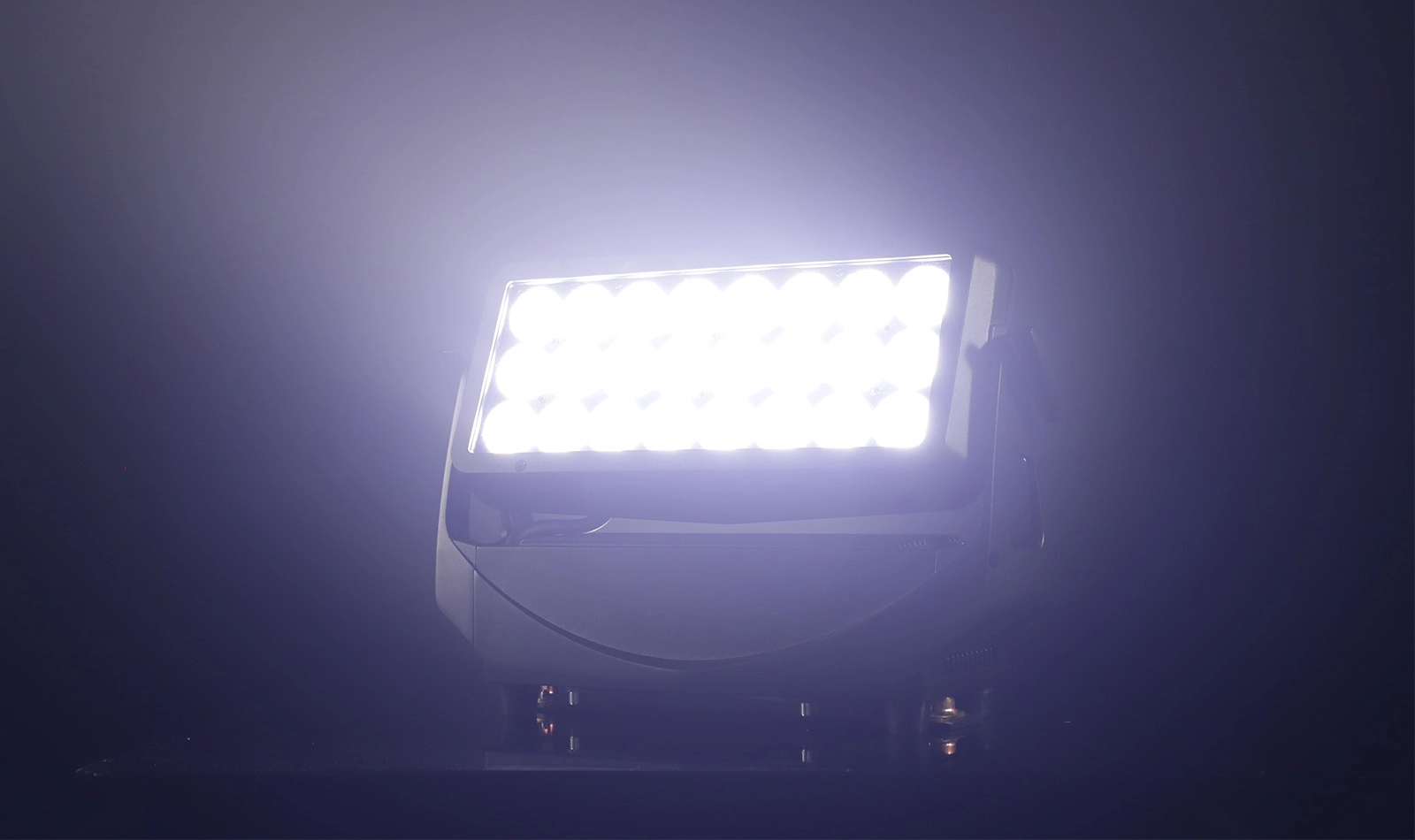

24x20W RGBW 4in1 IP65 Wall Wash 6 Segments showing bright white wash output - Colorful Light

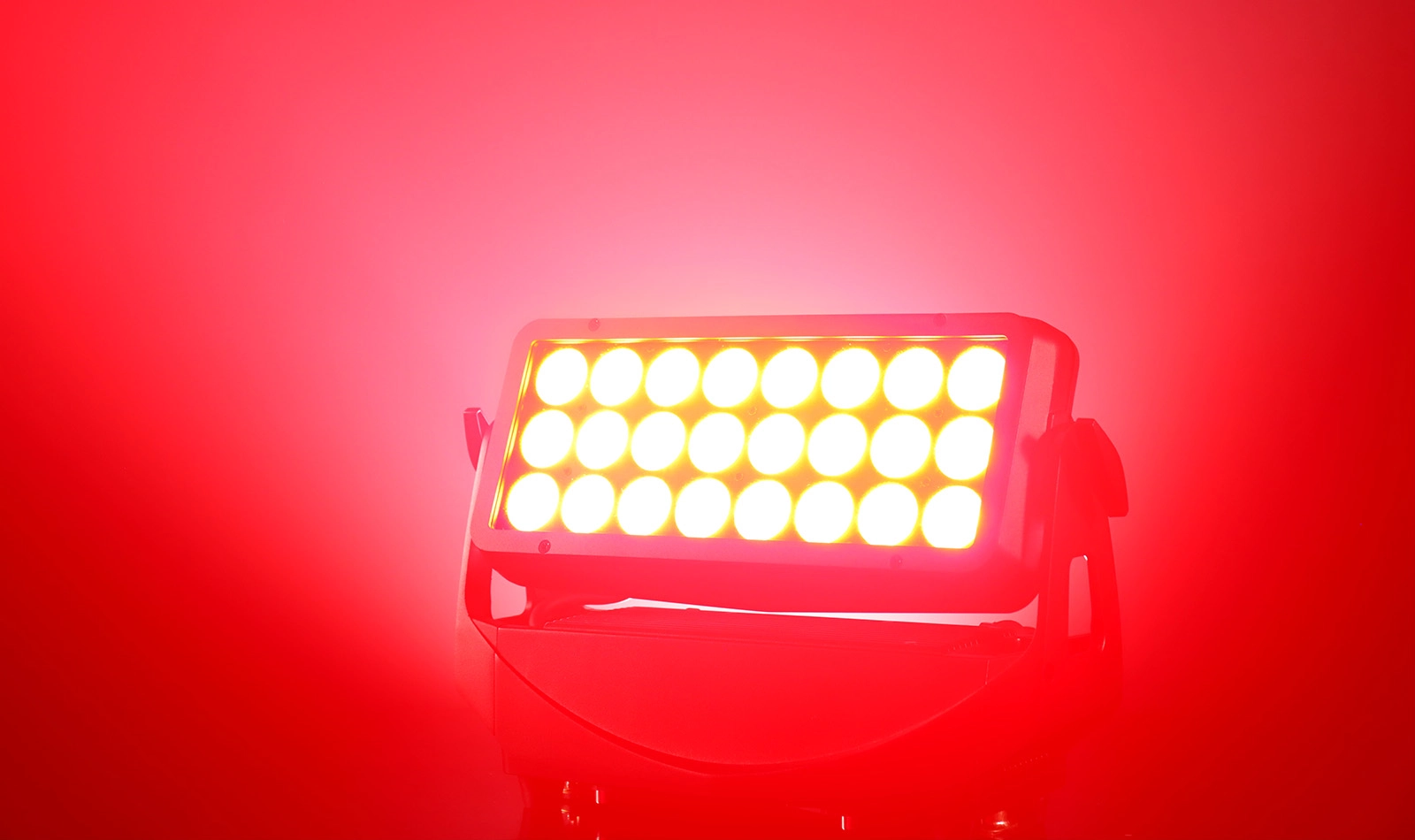

24x20W RGBW 4in1 IP65 Wall Wash 6 Segments with warm red color wash effect - Colorful Light

◼

Download

Download File

Download the COMET 24IP User Manual for product setup, operation and maintenance reference. It helps users understand basic installation, control settings and safe use of the 24x15W RGBW 4-in-1 IP65 Bee Eye Zoom Par Can.
