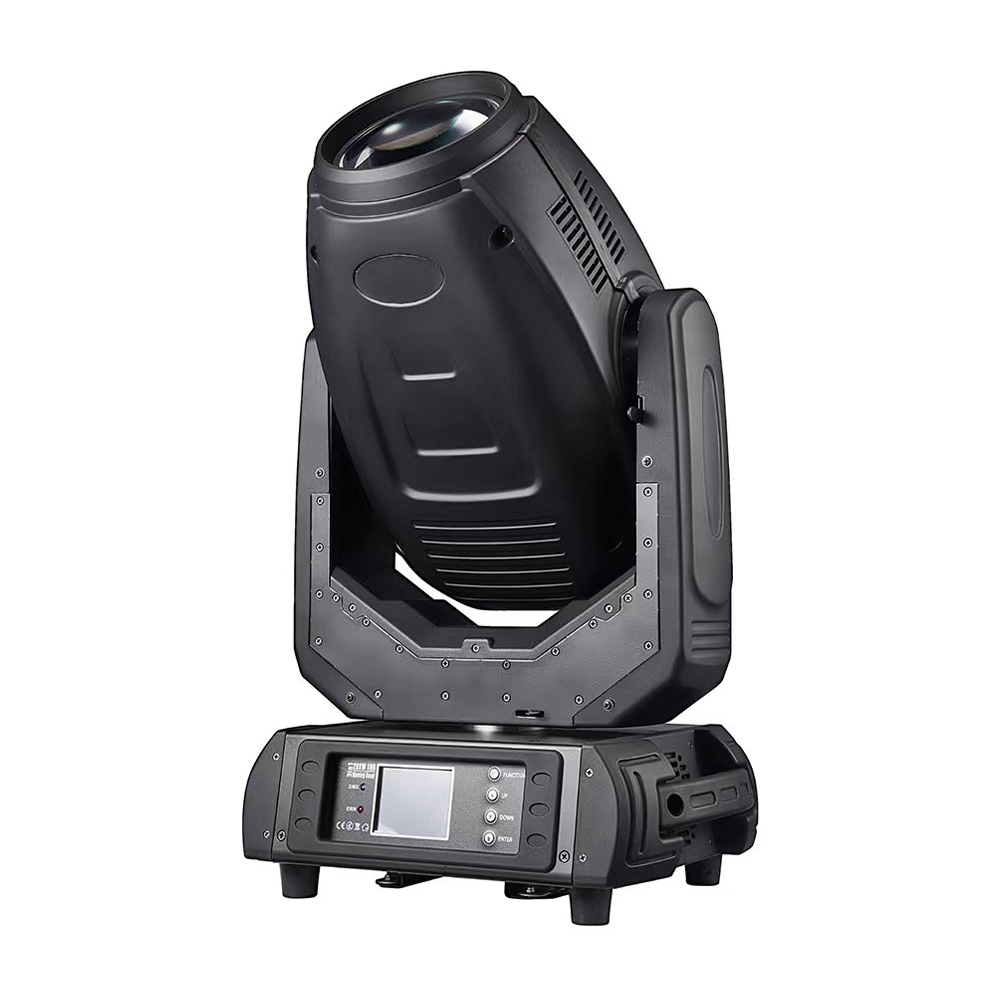

280w Beam Wash Spot 3in1 Moving Head

The 280W BSW 3-in-1 moving head light integrates three core functions: beam, color, and pattern. Its high-definition optical system delivers powerful and uniform light. Supporting DMX512/RDM control and high-precision head-scanning, it features a multi-pattern disc and dual prisms, making it suitable for various large and medium-sized performances, cultural tourism light shows, and other professional stage scenarios for robe 10r.

Get a Free Quote

Get Product Catalogs

◼

Why Choose Us

Key Features & Benefits

• Safe and Reliable: Compliant with CE and RoHS certifications.

• Cost-Effective: Factory-direct supply; supports bulk OEM/ODM orders.

• Easy Maintenance: Simple structural design results in lower maintenance costs.

• Customization Options: Optional laser-printed logo available.

◼

Parameters

General Specifications

The 280W Beam Wash Spot 3-in-1 Moving Head features a YODN 280 R10 / OSRAM P-VIP 280 light source, 2.5°-20° zoom, 13 colors plus white, rotating and fixed gobo wheels, dual prisms, 540° pan, 270° tilt, DMX512 control and 16/24-channel modes for performances, cultural tourism light shows and professional stage applications.

Electrical
Power supply	Electronic auto-ranging	Input voltage range	Supply 100-250V, 50/60Hz
Power consumption	470W
Optic
Light source	YODN 280 R10 lamp/OSRAM P-VIP 280	LED life expectancy	2200 hours
Lens	High precision optical lens	Strobe	Dual lens strobe (0.5-9times/second)
Dimmer	Smooth dimmer from 0-100%
Connectors
Color: wheel	13 color+white	Rotating gobo wheel	9 gobos+ white
Static gobo wheel	14 fixed gobos+white	Prism 1	8-facets circular rotating prism
Prism 2	6-facets linear rotating prism	Zoom	2.5°-20°
Focus	Linear adjustment
Motorized
Pan/Tilt
Pan movment rang	540°	Tilt movement range	270°
8bit/16 bit movement solution, optional Automatic		Pan/Tilt position correction Pan movement 0°-540°atmax
Tilt movement 0°-270°at max
LCD operation
Built-in demo sequences		Silent fans cooling
Strong two-phase motors Stand-alone operation		Supported protocols	DMX512
2 DMX modes (16/24 control channels)
Connection
DMX data in/out	Locking 3-pin and 5-pin XLR	AC power input	1.5m power cord with plug
Rigging
Mounting points	2 pairs of 1/4-turn locks	Mounting horizontally or vertically via 2 Omega brackets
Temperatures
Maximum ambient temperature	45℃	Maximum housing temperature	75℃
Minimum distances
Min. distance from flammable surfaces	3.0m	Min. distance to lighted object	2.0m
Dimension	386(L) x 365(W) x 589(H) mm	Weight (net)	16kg
Warranty	1 Year

◼

Details

Detailed View

Detailed views show the 280W Beam Wash Spot 3-in-1 Moving Head’s color wheel, rotating gobo wheel and fixed gobo wheel, including 13 colors plus white, 9 rotating gobos plus white and 14 fixed gobos plus white. These features support flexible color, pattern and projection effects for professional stage lighting applications.

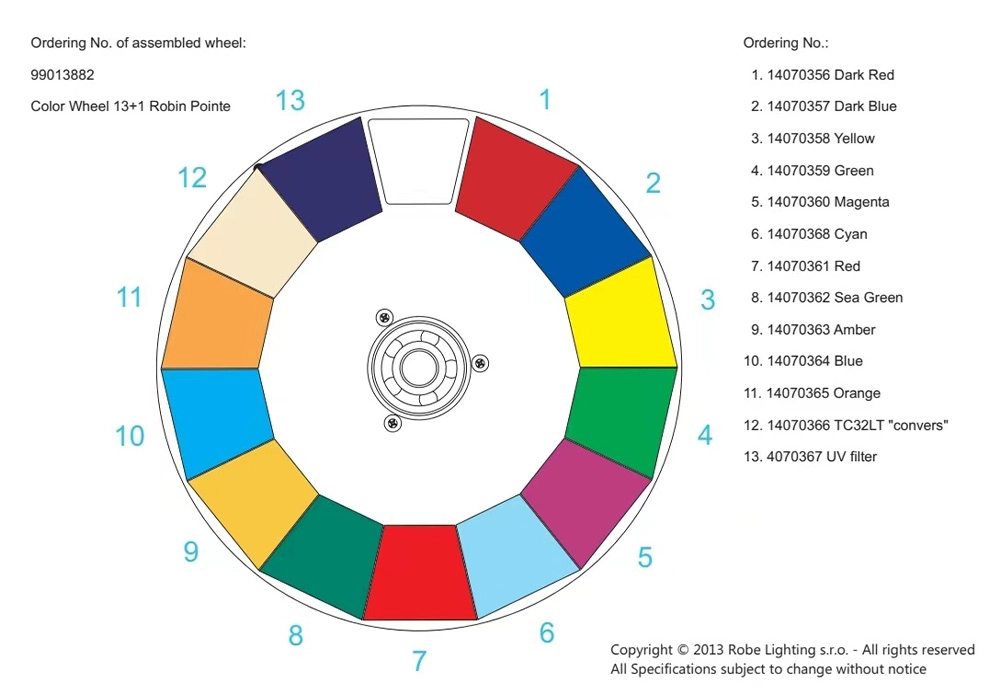

280W Beam Wash Spot 3in1 Moving Head color wheel with 13 colors and white - Colorful Light

280W Beam Wash Spot 3in1 Moving Head rotating gobo wheel with 9 gobos and white - Colorful Light

280W Beam Wash Spot 3in1 Moving Head fixed gobo wheel with 14 gobos and white - Colorful Light

◼

Download

Download File

Download the 280W Beam Wash Spot 3-in-1 Moving Head user manual for operation guidance, DMX512 setup reference, installation notes and maintenance details.
