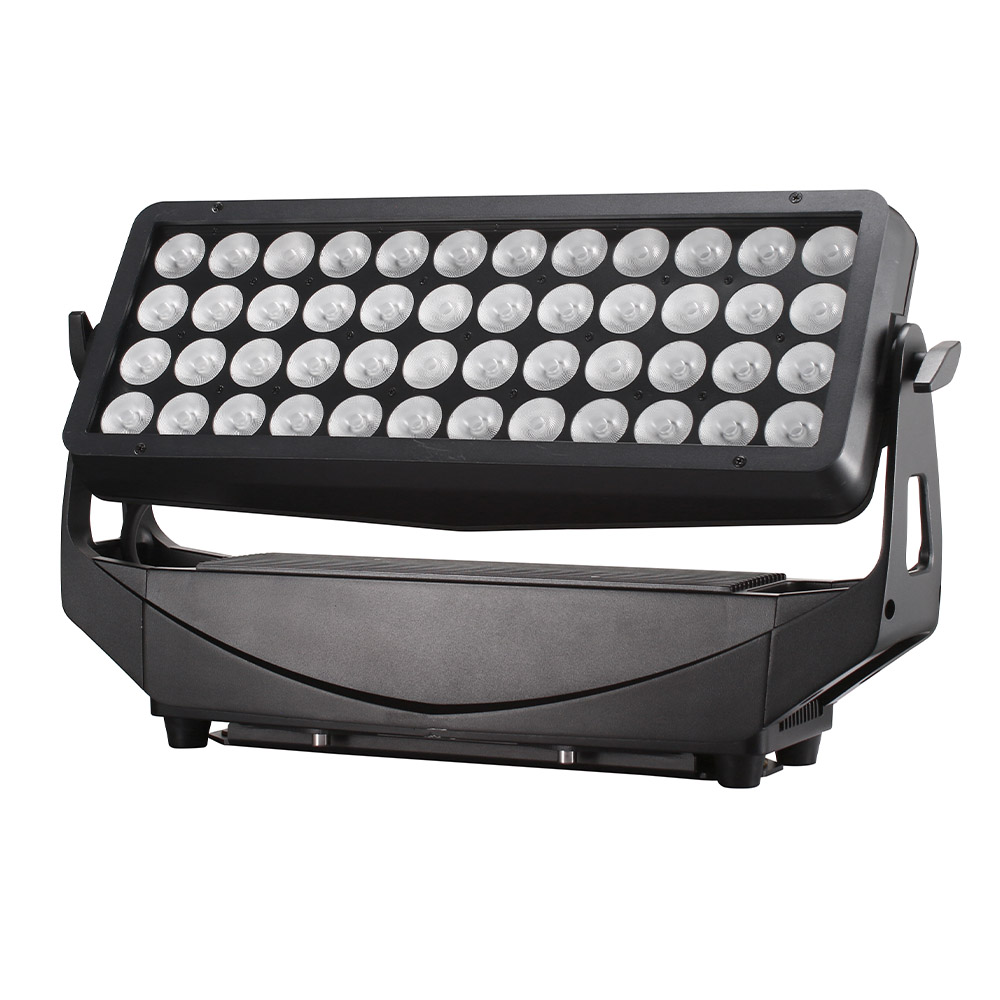

48x20w RGBW 4in1 IP65 Wall Wash 8 Segments

48*20W RGBW IP65 waterproof LED wash floodlight. Features uniform RGBW four-color mixing, 8 segement.W-DMX(optional).IP65 protection to withstand complex outdoor weather conditions, flexible light control, and suitability for architectural lighting, cultural and tourism landscapes, and other applications.( support sgm P10 channel)

Get a Free Quote

Get Product Catalogs

◼

Why Choose Us

Key Features & Benefits

• Safe and Reliable: Compliant with CE and RoHS certifications.

• Lightweight and Modular: Features a 8-segment design with a total weight of just 10.5 kg.

• Cost-Effective: Factory-direct supply; supports bulk OEM/ODM orders.

• Easy Maintenance: Simple structural design results in lower maintenance costs.

• Extreme Environment Adaptability: IP65 waterproof rating; features a full die-cast aluminum housing for excellent heat dissipation, complete with temperature control and overheat protection functions.

• Customization Options: Optional features include laser-printed logos, W-DMX (LumenRadio) support, barn doors, diffusion filters, and frost filters.

◼

Parameters

General Specifications

The 48x20W RGBW 4-in-1 IP65 Wall Wash 8 Segments is a professional LED wall washer designed for outdoor stages, concerts, events and architectural lighting. It features 48 × 20W RGBW 4-in-1 LEDs, smooth color mixing, 8-segment control and an IP65 waterproof structure for reliable indoor and outdoor use.

Light Source
Source	48X20W 4-IN-1 RGBW LEDs	Flicker free operation for broadcast TV and FILM
Life Span	50,000 hours	The life span may vary depending on several following factors but not limited to	Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)
Optics
48PCS high efficiency acrylic lens		5°/10°/15°/25°/40°/15°x40° Lens optional
Magnetic diffuser / frost filter (optional)		Magnetic 8 way barndoors (optional)
Colors
8 Segments controllable individually		Sophisticated 4 colors RGBW mixed
Even and soft light		Coverage with pure mixing
Preset color macros
Strobe Effect
0-25Hz high speed shutter/strobe effect with variable speed
Dimming System
0-100% Smooth linear LED dimming		Smoother dimming mode available
Control System
8/13/16/21/25/40 DMX channels		DMX512, RDM, Master-slave, Auto, W-DMX (optional)
Multi preset internal programs		Shielded input signal protection for stable signal without interference
Seetronic IP65 3-Pin or 5-Pin XLR connectors IN/OUT
Display System
1.77" TFT LCD display		English/Chinese menu
4 control touch buttons		Display auto OFF
Cooling System
Active, Forced Air, Temperature regulated		Over temperature protection management
Power Supply
1100W power supply		AC100-240V 50/60Hz
Seetronic IP65 PowerCON TRUE1 IN/OUT
Housing
Aluminium, steel, plastic PC/ASA, rubber, Lens PE and tempered glass front		Tilt angle manually adjustable
Two side handles on base		Exterior finish	Black
Installation
2*1/4 turn fastening Omega Clamps		1*Safety attachment point
Operating Condition
Operating positions	All (device on floor or fixed to a support)	-25° to 45° ambient temperature
IP65 protection rating
Weight
N.W.	10.6kg
Dimensions
Product Dimensions	570(D)150(W)320(H)mm

◼

Effect

Lighting Effects

The 48x20W RGBW 4-in-1 IP65 Wall Wash 8 Segments delivers bright and even RGBW wash effects for professional stage and outdoor lighting. The effect images show red, white and cyan output, wide background wash coverage, and strong color atmosphere for concerts, events, façades and cultural tourism projects. With 48 × 20W LEDs, 8-segment control and IP65 waterproof protection, it helps create clean color washes, dynamic stage backgrounds and reliable outdoor visual effects.

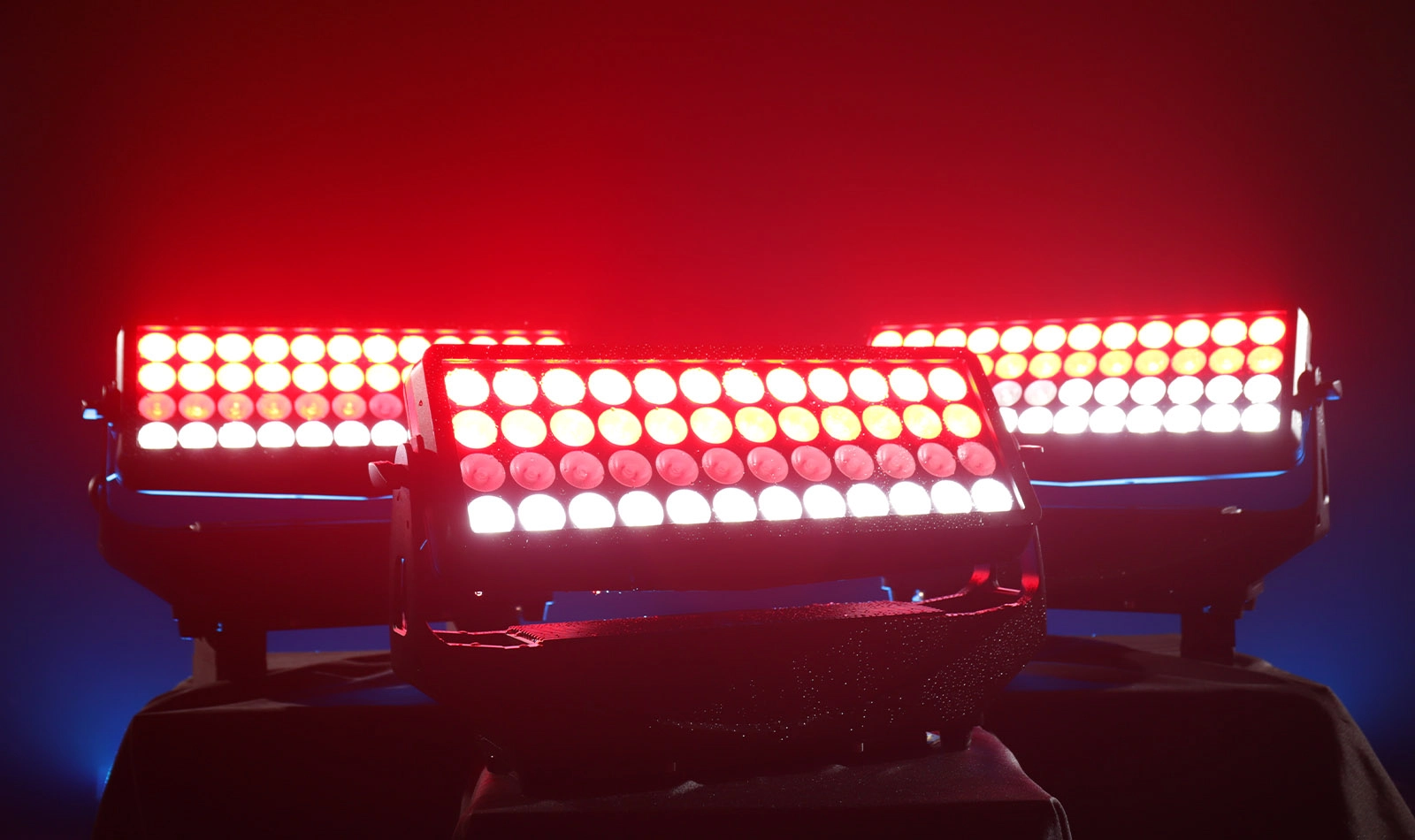

48x20W RGBW 4in1 IP65 Wall Wash 8 Segments showing red and white wash effects - Colorful Light

48x20W RGBW 4in1 IP65 Wall Wash 8 Segments producing red stage wash output - Colorful Light

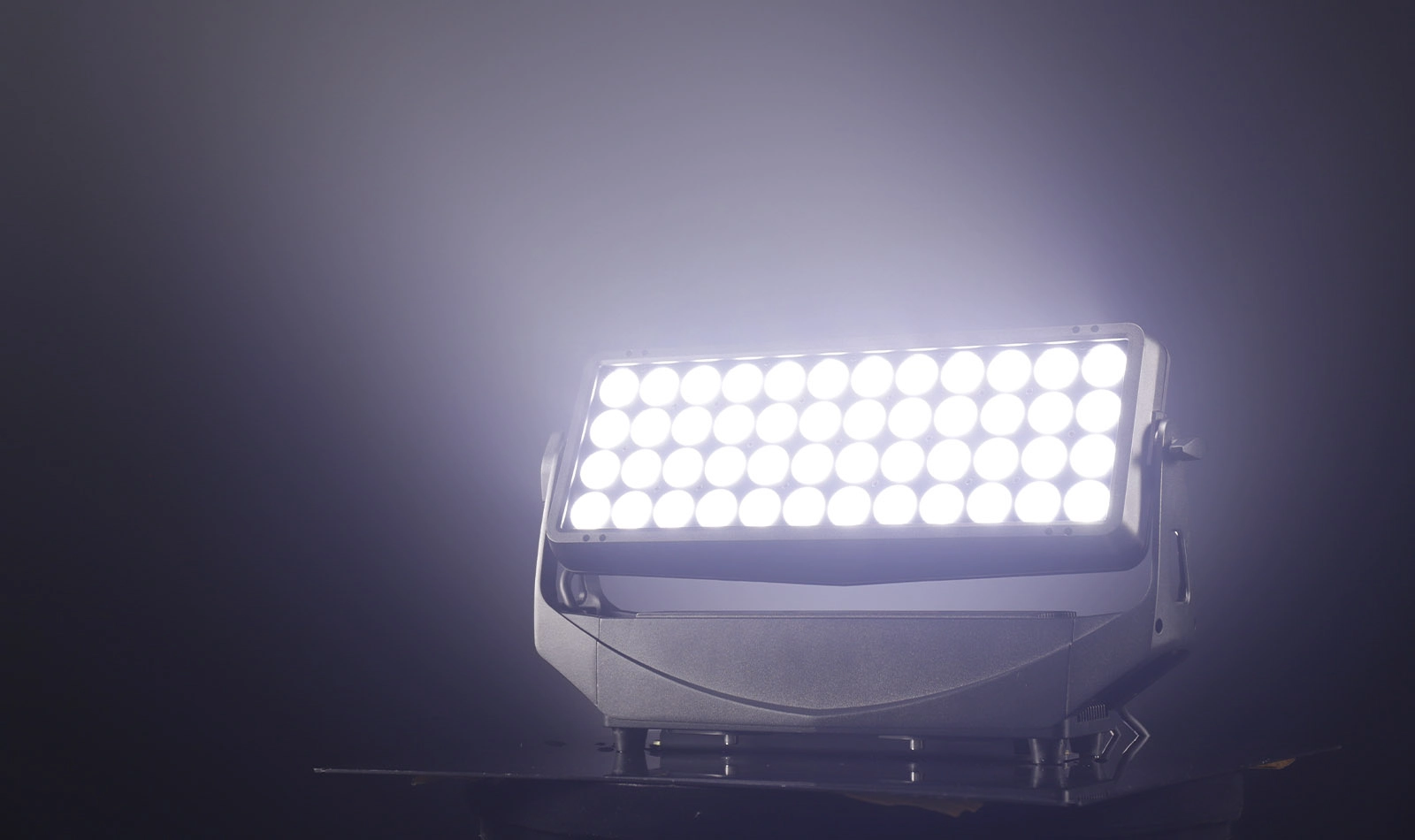

48x20W RGBW 4in1 IP65 Wall Wash 8 Segments with bright white wash effect - Colorful Light

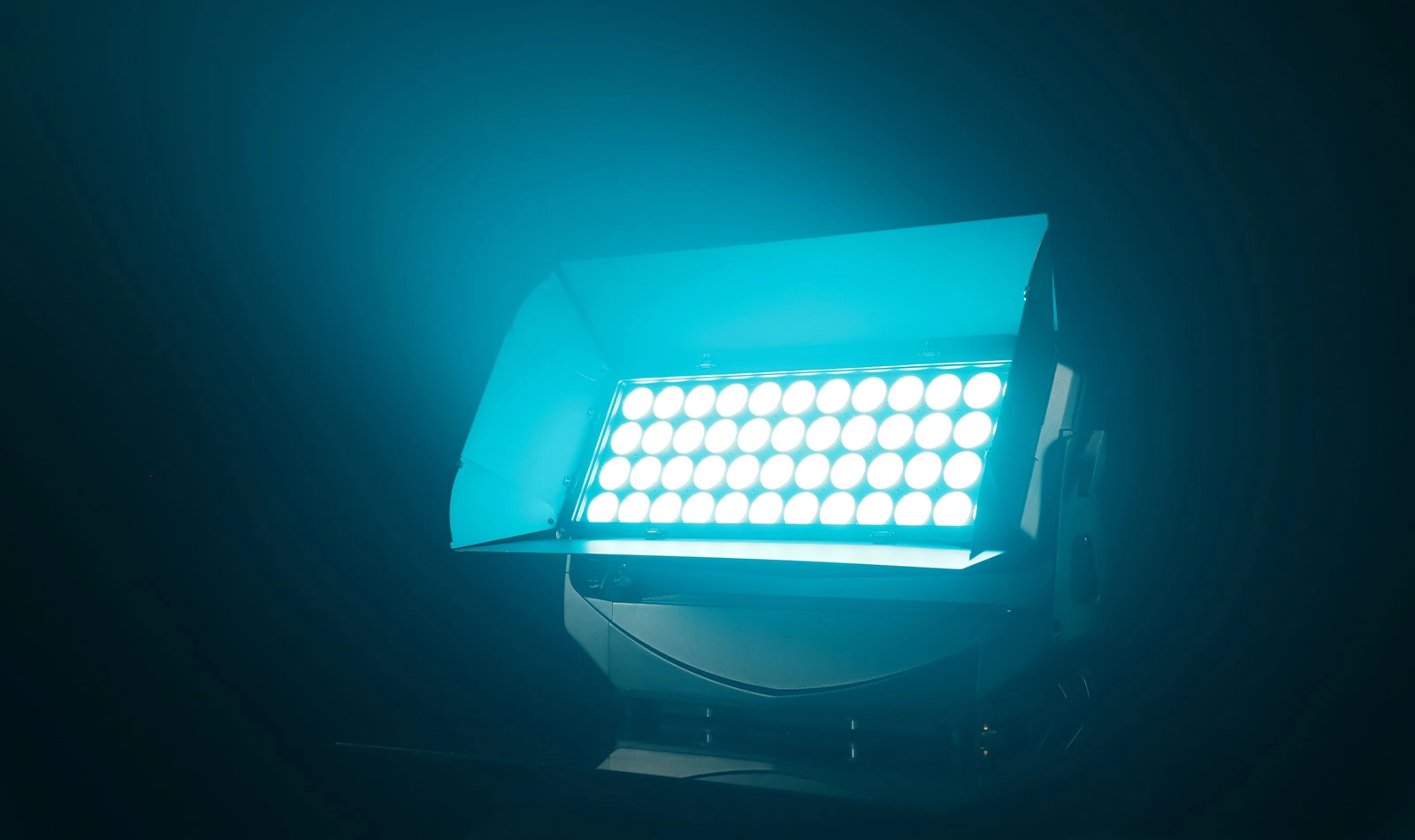

48x20W RGBW 4in1 IP65 Wall Wash 8 Segments showing cyan wash lighting - Colorful Light

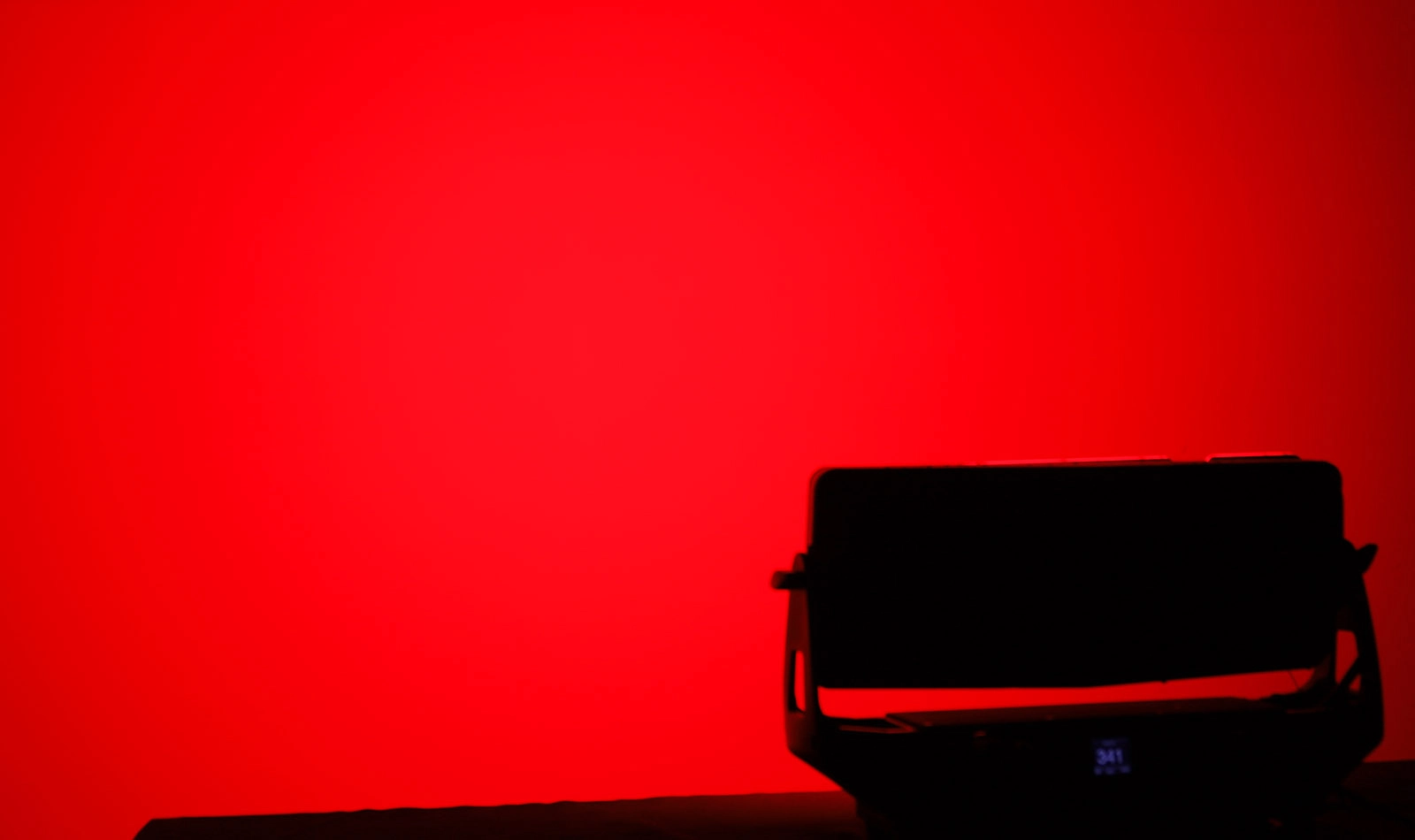

48x20W RGBW 4in1 IP65 Wall Wash 8 Segments creating red background wash - Colorful Light

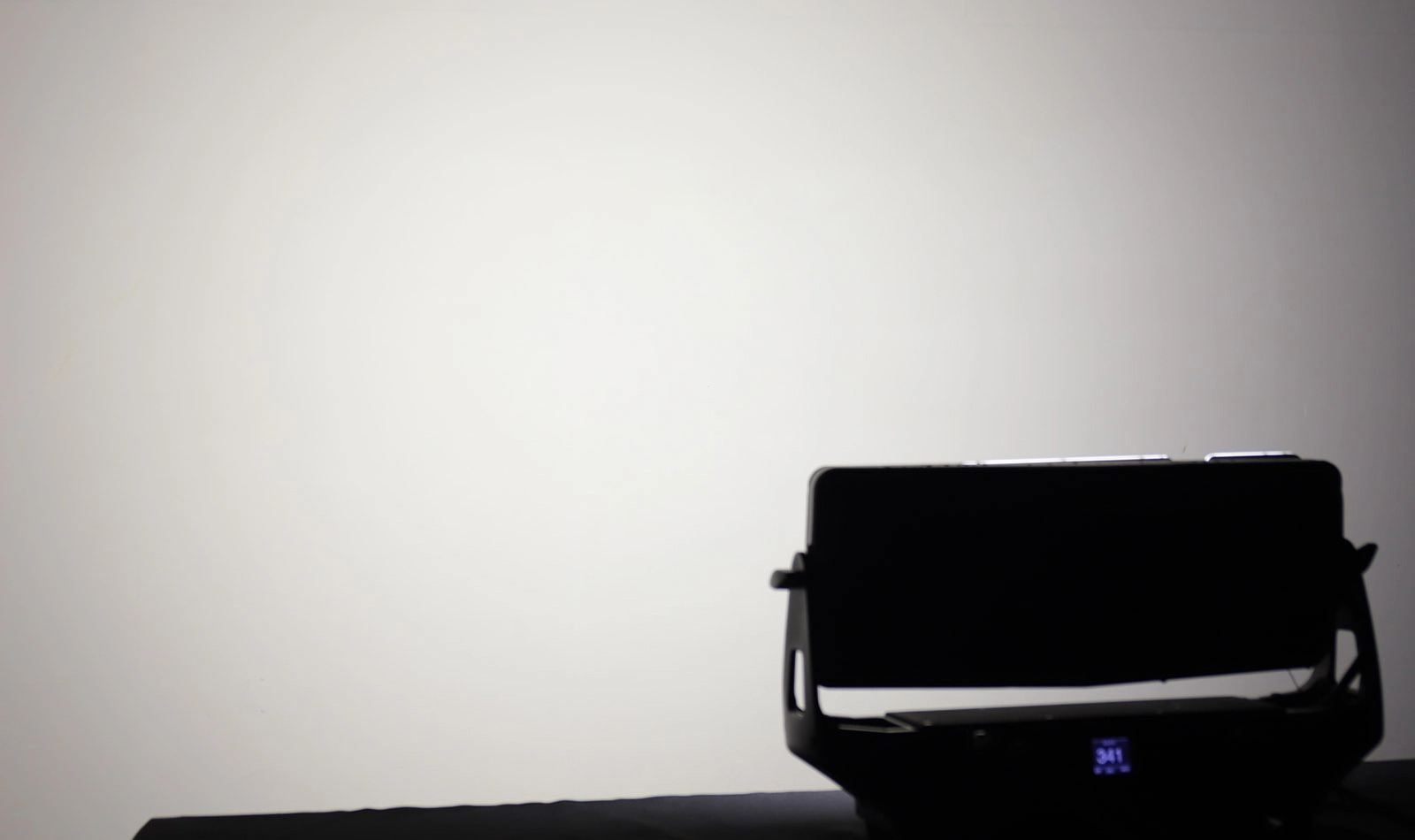

48x20W RGBW 4in1 IP65 Wall Wash 8 Segments creating white background wash - Colorful Light

◼

Download

Download File

Download the 48×20S User Manual for setup, operation and maintenance reference. This file helps lighting engineers, rental teams and project installers understand the basic control settings and safe use of the 48x20W RGBW 4-in-1 IP65 Wall Wash 8 Segments.
