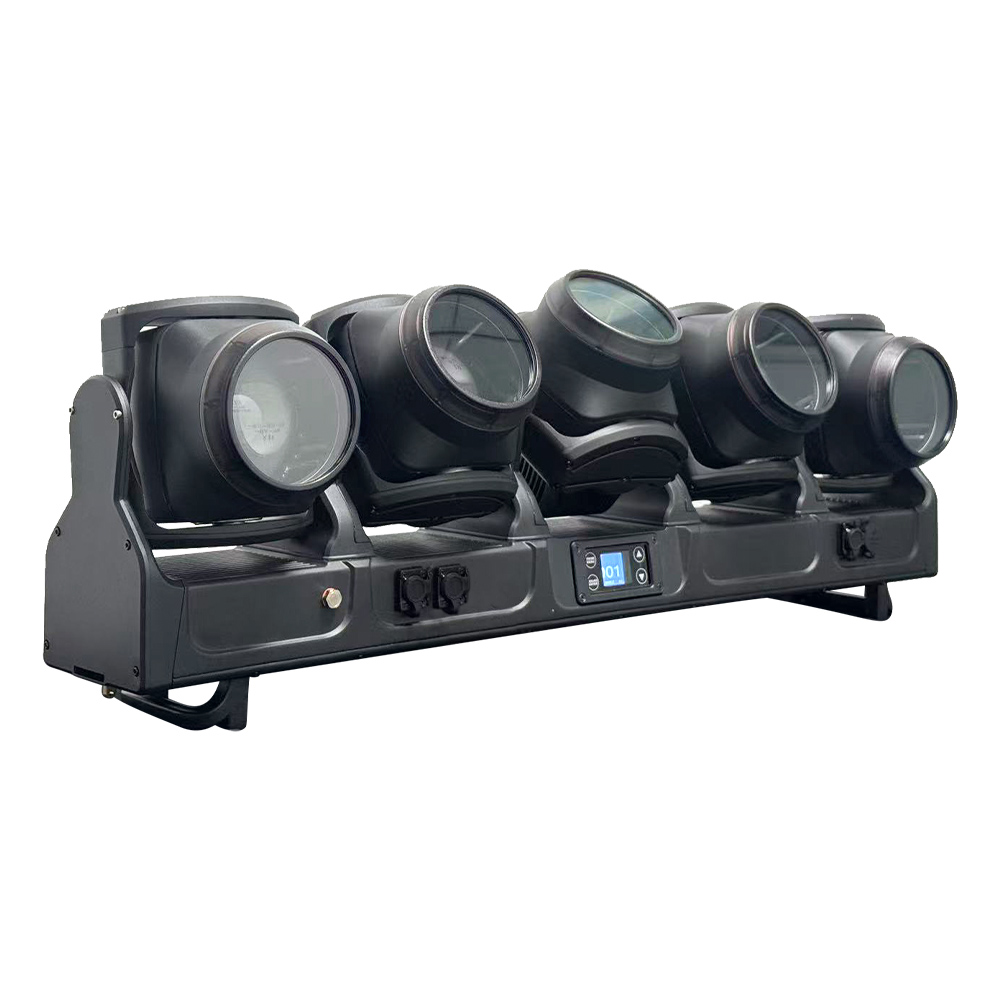

5x120w RGBW 4in1 IP65 Moving Head Bar

Waterproof 5x120W Pixel LED bar moving head, a waterproof 5x120W pixel LED strip moving head light, with individually controllable pixels, supports zoom and dynamic effects, IP65 protection, suitable for outdoor performances, stage and engineering lighting.

Get a Free Quote

Get Product Catalogs

◼

Why Choose Us

Key Features & Benefits

• Safe and Reliable: Compliant with CE and RoHS certifications.

• Cost-Effective: Factory-direct supply; supports bulk OEM/ODM orders.

• Easy Maintenance: Simple structural design results in lower maintenance costs.

• Extreme Environment Adaptability: IP65 waterproof rating; features a full die-cast aluminum housing for excellent heat dissipation, along with temperature control and overheat protection functions.

• Customization Options: Optional laser-printed logo available.

◼

Parameters

General Specifications

The 5x120W RGBW 4-in-1 IP65 Moving Head Bar features 5 x 120W RGBW LEDs, pixel control, 5-31° zoom, 1-30Hz strobe, 32-bit linear dimming, DMX512/RDM control, and IP66 protection. It is built for outdoor performances, stages, clubs, festivals, theaters, and engineering lighting projects.

Technical Specifications
Voltage	AC 100~240V, 50/60Hz	Power	800W
Lamp beads	Main light: 5 x 1212-120 watt RGB lemon yellow lamp beads + 50 x 5050-0.5 watt RGB 120 beads	Angle	5m 5 - 31° / 3m 6 - 30°
Control method	DMX512, self-moving, master-slave, sound control, with RDM function.	Channels	CH21, CH41, CH71, CH75, CH85, CH170
Dimming	32bit 0~100% linear dimming	Features	Single swing + coloring + beam
Working temperature	-30°C to 50°C	Strobe frequency	1 to 30Hz
Appearance	Metal, black	Connection method	DMX512 input/output / power
Input / Output
IP rating	IP66	Product size	10018.835.4CM
Net weight	29KG	Aircraft box size	1055556cm / one box for two pieces
Gross weight	97KG

◼

Download

Download File

Download the user manual and technical files for the 5x120W RGBW 4-in-1 IP65 Moving Head Bar, including operation guidance, DMX512/RDM settings, installation notes, safety instructions, and maintenance details.
