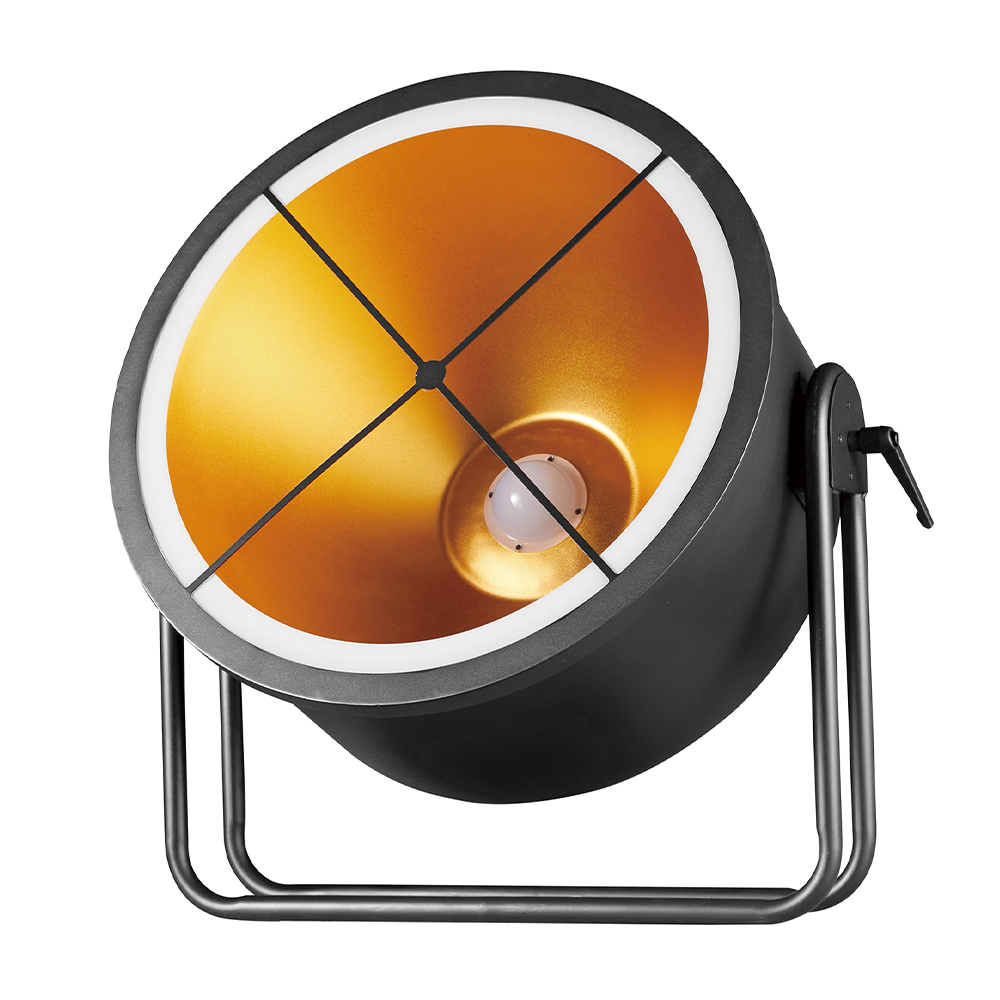

600w RGBALC 6in1 IP65 Retro Light

The Waterproof 600W RGBALC LED Retro Light replicates the classic light and shadow texture, with soft brightness and a strong sense of atmosphere. Its waterproof design makes it suitable for outdoor markets, retro stages, cultural and tourism blocks and other scenarios.

Get a Free Quote

Get Product Catalogs

◼

Why Choose Us

Key Features & Benefits

• Safe and Reliable: Compliant with CE and RoHS certifications.

• Cost-Effective: Factory-direct supply; supports bulk OEM/ODM orders.

• Easy Maintenance: Simple structural design minimizes maintenance costs.

• Extreme Environment Adaptability: IP65 waterproof rating; features a full die-cast aluminum housing for superior heat dissipation, complete with temperature control and overheat protection functions.

• Customization Options: Optional laser-printed logo available.

◼

Parameters

General Specifications

The 600W RGBALC 6-in-1 IP65 Retro Light features an RGBLAC 6-in-1 LED source, 90W single-color output, 90 × 0.5W RGB background LEDs, 55° beam angle and 1800K–8500K color temperature. It supports 1–25Hz strobe, 900–25KHz refresh rate, DMX512/RDM control, 9 channel modes and OLED display operation. With IP65 protection, aluminum alloy heat dissipation, silent fan and intelligent temperature protection, it delivers reliable performance for outdoor stage and event lighting.

Lightsource
Main light source	RGBLAC 6in1 LED	Single color	90W
Background color	90*0.5W RGB LED	Spot angle	55°
Color temperature	1800~8500 K	Average life	50000 H
Effect
Fast strobe	1 ~ 25Hz	LED refresh frequency	900~ 25KHz
Control and programming
Control channel	9 modes (1CH / 3CH / 6CH / 13CH / 21CH / 10CH /1 5CH / 12CH / 37CH)	Protocol	Standard DMX512 protocol, RDM protocol
Data connection	Three-core XLR input/output	Display	OLED display operation panel
Software
Convenient and fast upgrade through DMX signal software update		Intelligent temperature protection to ensure the service life of LED
Lamp body structure and heat dissipation
Galvanized sheet + aluminum alloy structure		Aluminum alloy heat sink + silent fan
Power supply and power
Input voltage	AC 110V ~ 240V 50/60Hz	Rated power	600 W
Others
Protection level	IP65	Working environment	-40℃ ~ 45℃
Startup environment	-20℃ ~ 45℃
Dimensions and weight
Dimensions	632 × 652 × 325mm	Net weight	13.4 kg (excluding accessories)

◼

Download

Download File

Download the Patt Light IP User Manual for the 600W RGBALC 6-in-1 IP65 Retro Light. This PDF provides product operation guidance, DMX512/RDM control information, channel mode settings, installation notes and maintenance instructions for professional outdoor stage lighting use.
