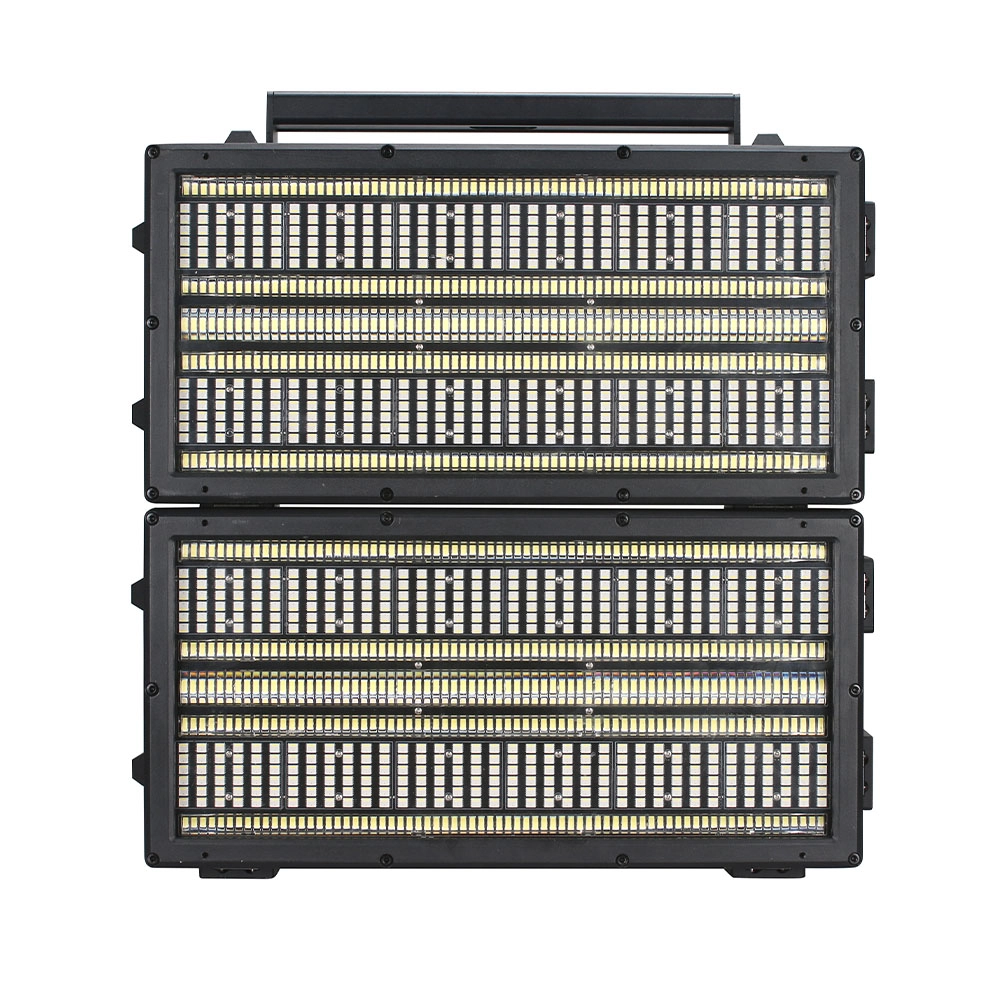

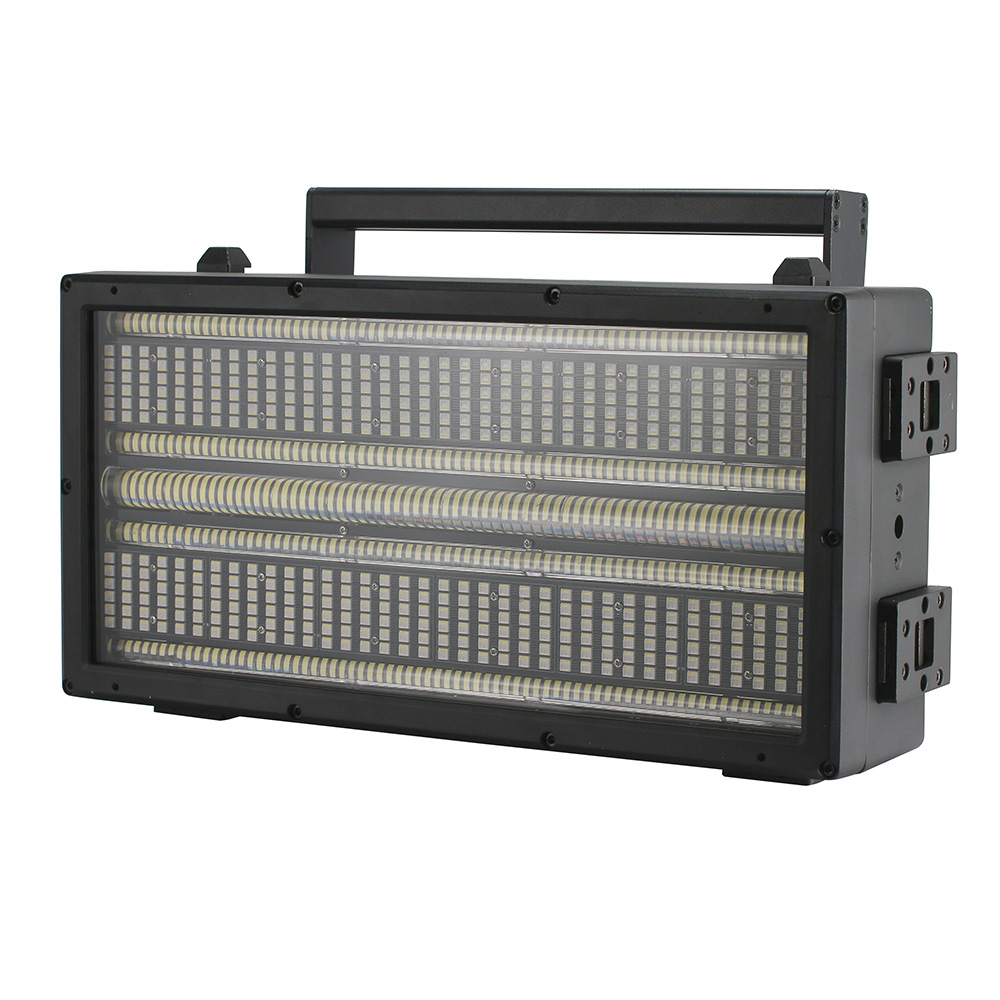

600W RGBW Waterproof matrix Strobe Light — High-Performance, Customizable, Professional Stage Lighting

The 600w waterproof matrix strobe light is a high-power waterproof strobe light equipped with a 600W high-brightness LED light source. The strobe frequency is adjustable and the brightness is strong.

It supports seamless splicing expansion of multiple panels, has a high level of waterproof performance, is compatible with DMX512 control, and is flexible in installation. It is suitable for creating stunning light and shadow effects in outdoor large-scale performances, cultural and tourism light shows, building facade lighting and other scenarios.

Get a Free Quote

Get Product Catalogs

◼

Why Choose Us

Key Features & Benefits

• Safe and Reliable: Compliant with CE and RoHS certifications.

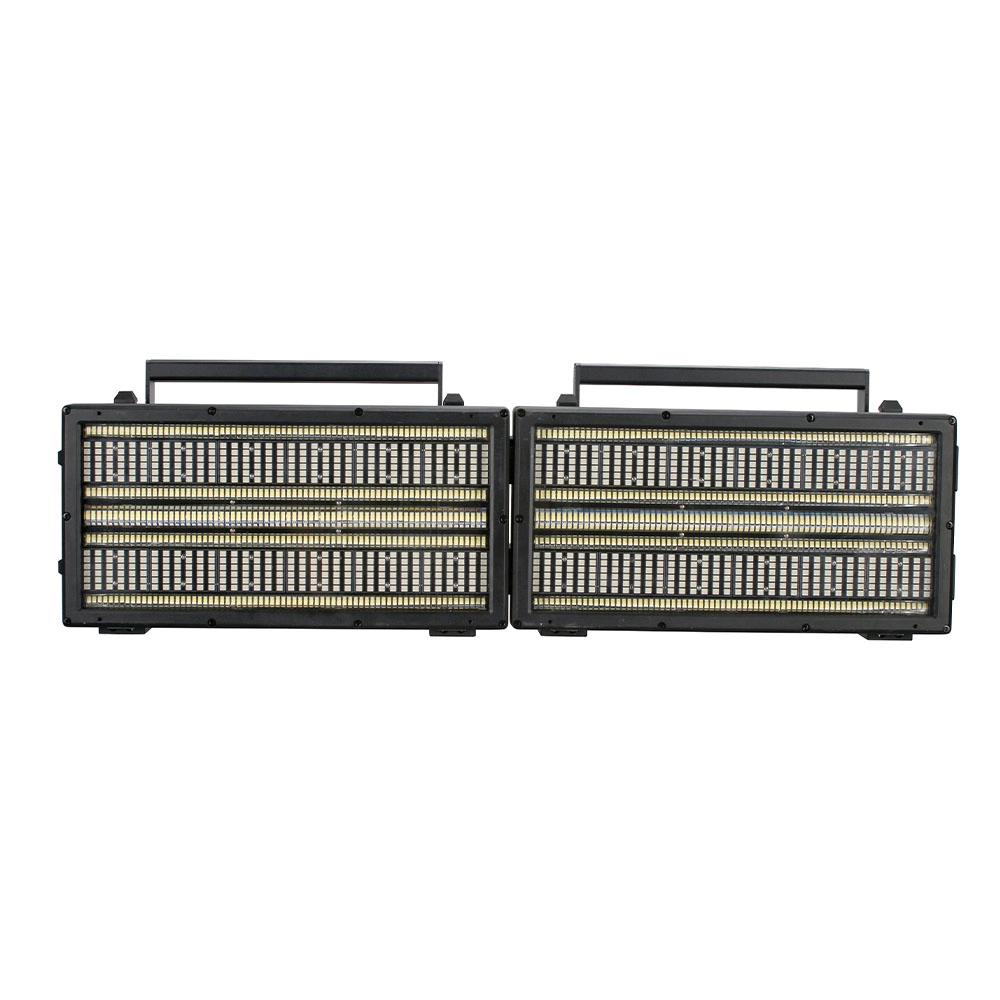

• Modular Design: Seamlessly connect units in any direction—up, down, left, or right—for limitless configuration options.

• Cost-Effective: Factory-direct supply; supports bulk OEM/ODM orders.

• Easy Maintenance: Simple structural design minimizes maintenance costs.

• Extreme Environment Adaptability: IP65 waterproof rating; features a full die-cast aluminum housing for superior heat dissipation, complete with temperature control and overheat protection functions.

• Customization Options: Optional laser-engraved logo, Art-Net support, or 3-pin + 5-pin connectivity.

◼

Parameters

General Specifications

The 600W RGBW Waterproof Matrix Strobe Light delivers bright strobe effects and RGBW matrix color output for concerts, festivals, clubs, outdoor stages and live events. Its waterproof design and customization support make it a reliable choice for rental companies, distributors and professional lighting projects.

Lightsource
Strobe Tube	360 x 2W 6500K white leds	Strobe Tube	5 x 12 segments
RGBW Panel	432 x 2W RGBW 4in1 leds	RGBW Panel	2 x 6 segments
Control
DMX Channel Modes	15CH, 39CH, 71CH, 112CH, 209CH, 178CH, 275CH, 16CH	Protocol	USITT DMX-512, RDM, ArtNet, sACN, Auto
Display	Illuminated graphic LCD	Controls	4 touch sensitive, backlighted controls
Cooling	Active, Forced Air, Temperature-regulated	Thermal protection	Automatic overtemperature protection

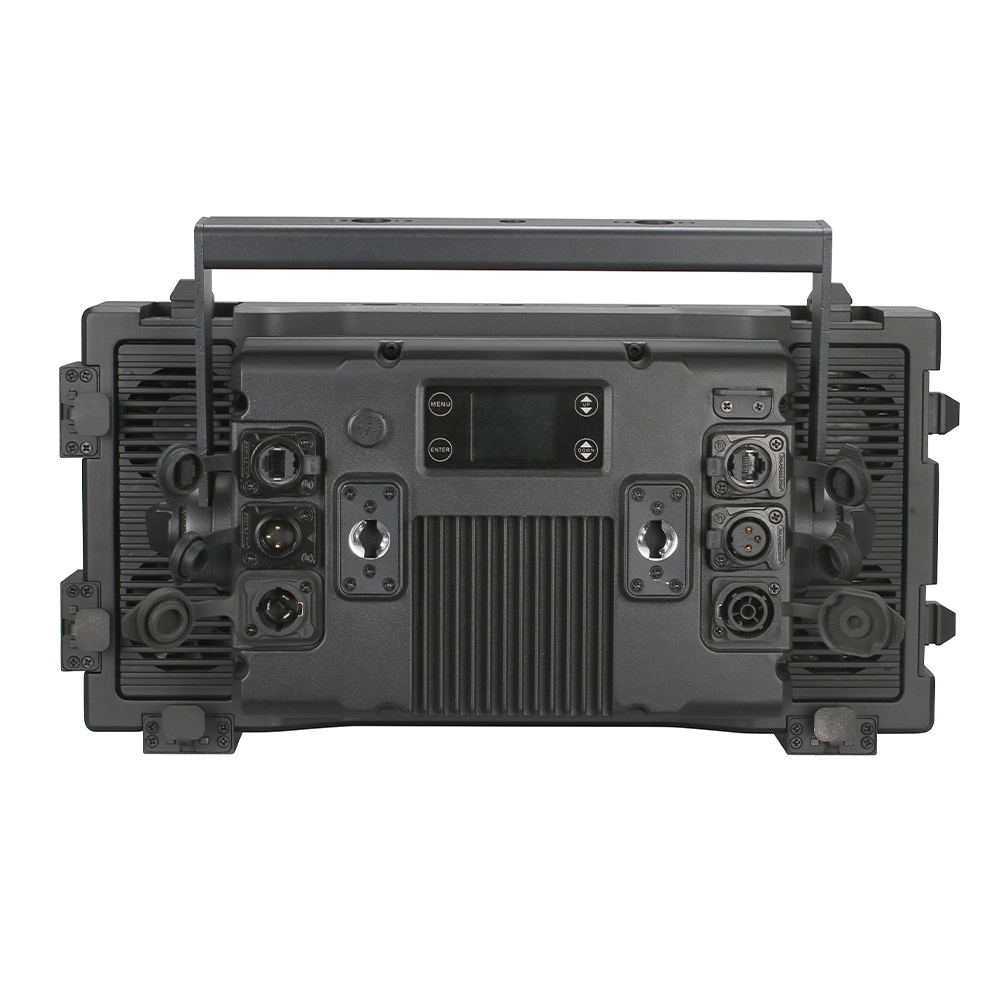

Connectors
DMX I/O	Seetronic IP65 XLR 3-Pin or 5-Pin In&Out	Power I/O	Seetronic PowerCON TRUE1 In&Out
ArtNet I/O	Seetronic RJ45 In&Out
Operating Conditions
Mains voltage	100-240V AC / 50-60Hz	Max power consumption	500W
Temperature range, Operating	-40°C to 45°C

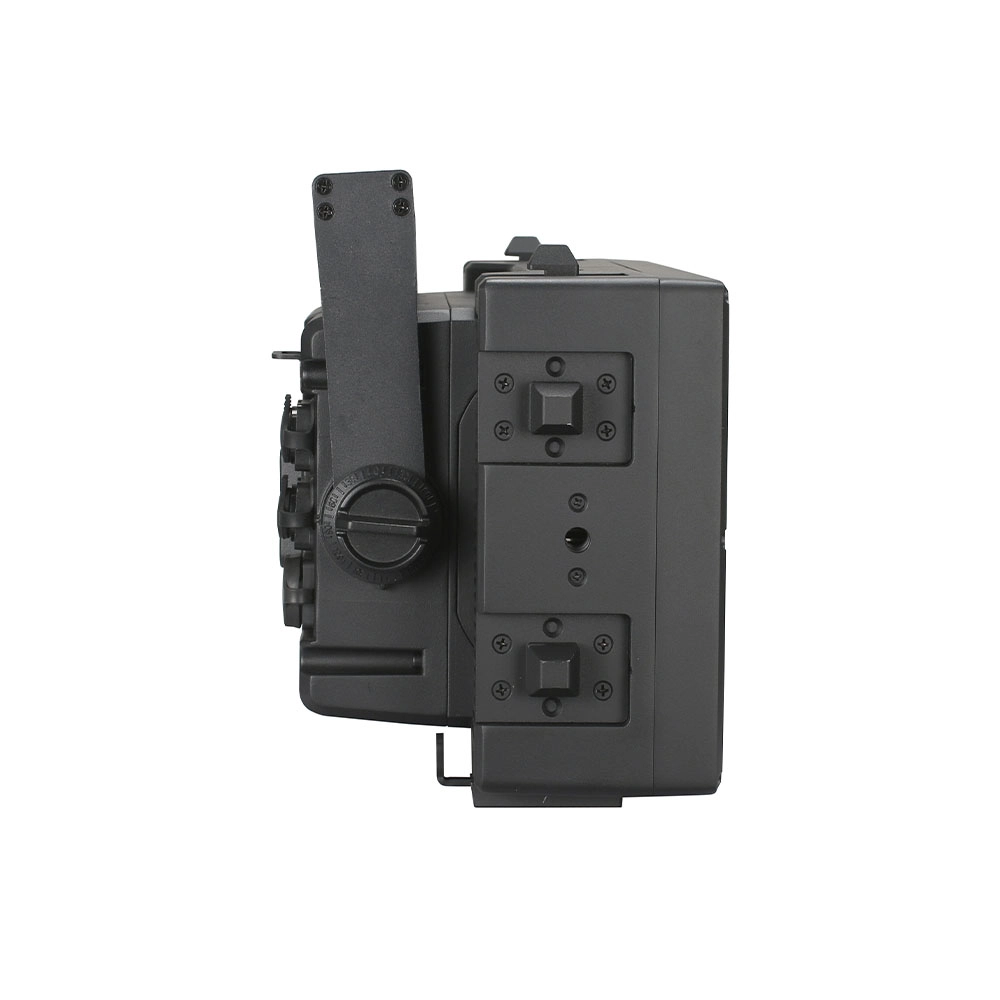

Mounting Options
Mounting point by Yoke (included)		Safety wire attachment: foldout eyelets
Shipping
Single fixture	Cardboard	Tourpack	4-way Flight Case
Housing Colors
Standard colors	Black
Dimensions
Length	420 mm	Width	177 mm
Height (including handle)	249 mm
Weight
N.W	10.2 kg	G.W	11.3 kg
Packing Size	54x30x23cm

◼

Download

Download File

Download the 48×20S User Manual for setup, operation and maintenance reference. This file helps lighting engineers, rental teams and project installers understand the basic control settings and safe use of the 48x20W RGBW 4-in-1 IP65 Wall Wash 8 Segments.
