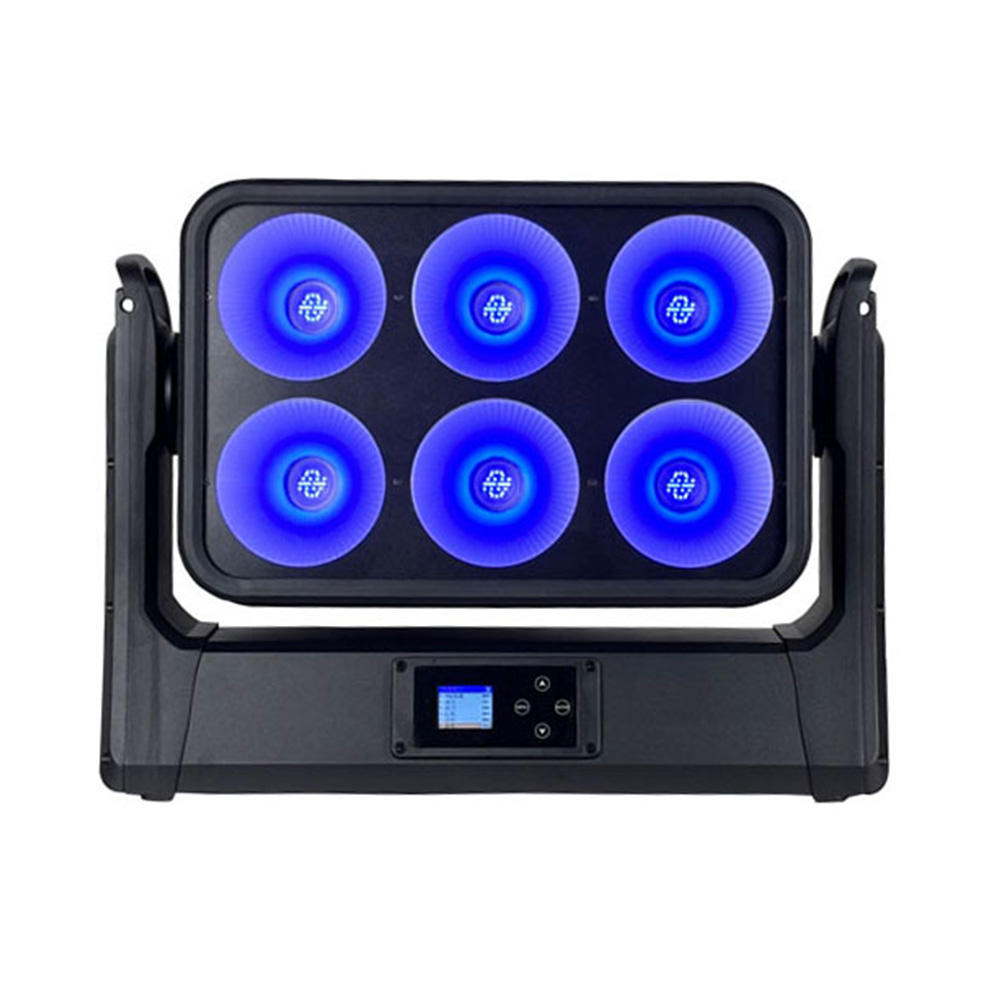

6x200 RGBW 4in1 IP65 Moving Head Blinder

IP65 6x200W Wash Blinder Moving Head RGBW: A high-performance choice for professional scenarios. Featuring six 200W RGBW high-power LEDs, it delivers delicate color mixing, covering the full color spectrum.

Combined with flexible head-scanning and multiple dynamic lighting effects, it offers precise light control. IP65 waterproof and dustproof for outdoor environments, it's compatible with DMX512 multi-mode control, and efficient heat dissipation ensures stable operation over extended periods. Suitable for performances, lighting effects, and other scenarios.

Get a Free Quote

Get Product Catalogs

◼

Why Choose Us

Key Features & Benefits

• Safe and Reliable: Compliant with CE and RoHS certifications.

• Cost-Effective: Factory-direct supply; supports bulk OEM/ODM orders.

• Easy Maintenance: Simple structural design results in lower maintenance costs.

• Extreme Environment Adaptability: IP65 waterproof rating; features a full die-cast aluminum housing for excellent heat dissipation, along with temperature control and overheat protection functions.

• Customization Options: Optional laser-printed logo available.

◼

Parameters

General Specifications

The 6x200W RGBW 4-in-1 IP65 Moving Head Blinder features 6 x 200W RGBW COB LEDs, 55° lens angle, 2800K-8000K color temperature, 0-25Hz strobe, 200° tilt, DMX512/RDM control, 21/25/49 channel modes, 16-bit dimming, IP65 aluminum housing and safety mounting for professional stage applications.

Light Source
Type	LED COB - R G B W(Cold White)	Power	6 x 200W
Color temperature	2800 to 8000K	Strobe frequency range	0 Hz – 25 Hz
SMPS
Power rating	1500W	Input voltage range	110-230 VAC 50-60 Hz (Auto-scaling)
Available protection circuits	Over-temperature / short-circuit
General
Cooling type	Active with fan + Passive	IP65 rated device
Power consumption	1200W	Connectors	Power in, DMX 3/5-pin in, DMX 3/5-pin out
Dimensions	520x410x201mm	Weight	18kg (N.W.)
Control
Lens angle	55°	Tilt	200°
Channel modes	21ch, 25ch, 49ch	Protocol	DMX-512, RDM
Display	LCD	Fan control modes	Auto
16bit Dimming		Dot Control
Housing
Aluminum housing		2 Handles for easy transportation
Working in any position		Hanging	2 Omega brackets with 2x ¼ turn quick lock fasteners
2nd suspension / safety wire: 2 eyes in the bottom of the base housing.
Thermal Specification
Max ambient temperature	40°C

◼

Download

Download File

Download the 1200W Moving Head Blinder User Manual for the 6x200W RGBW 4-in-1 IP65 Moving Head Blinder, including operation guidance, DMX512/RDM setup reference, channel modes, installation notes and maintenance details.
