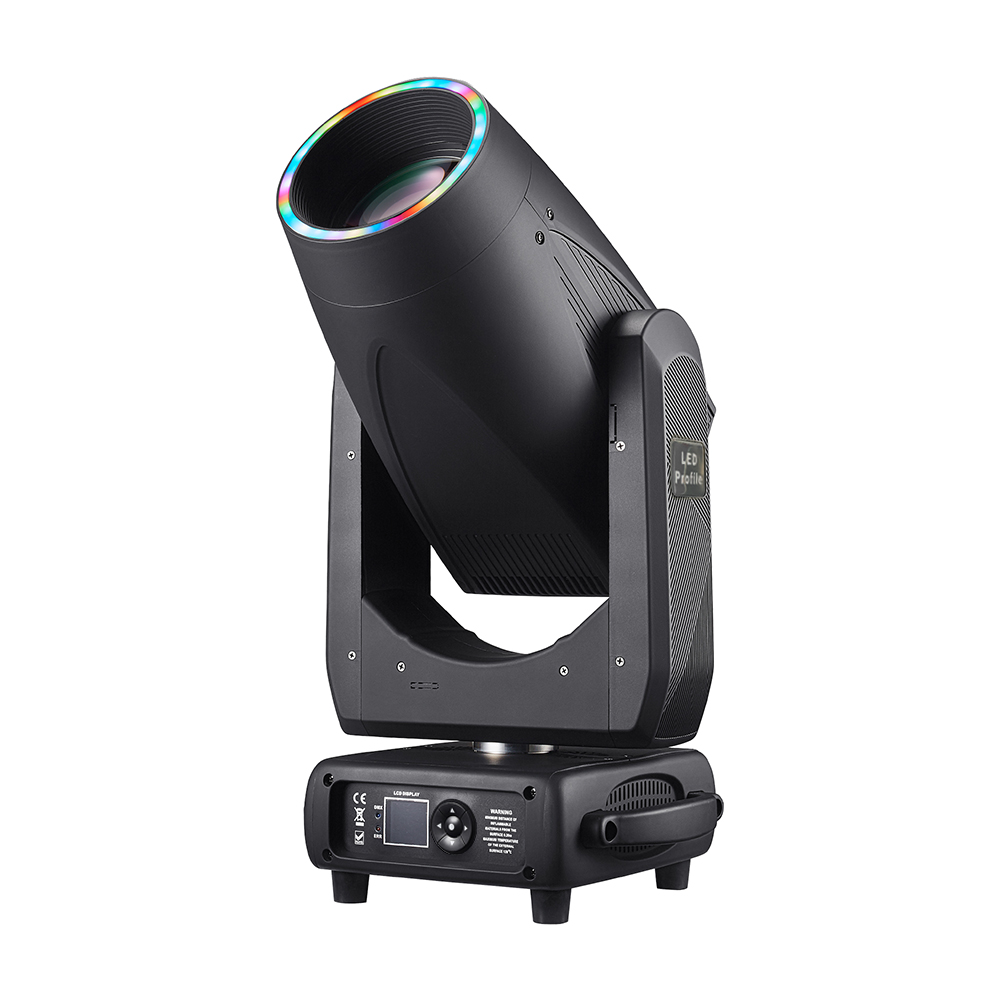

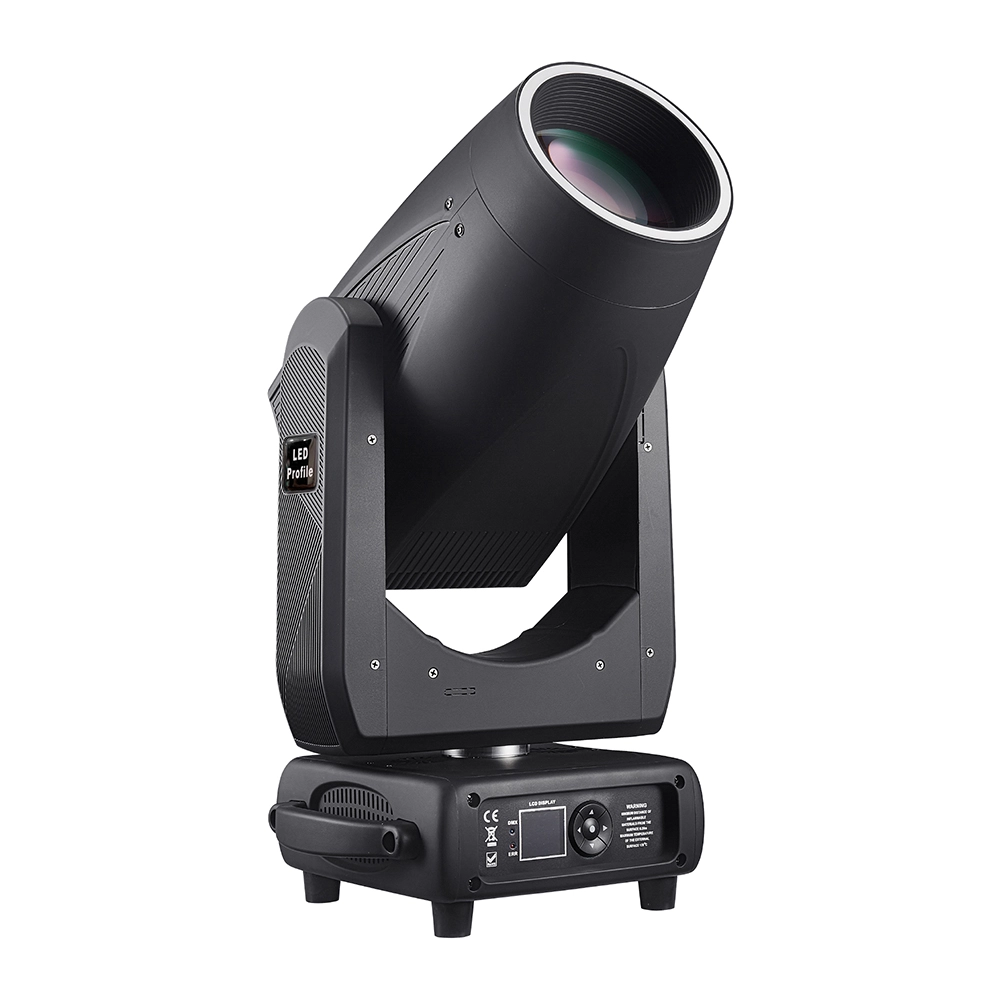

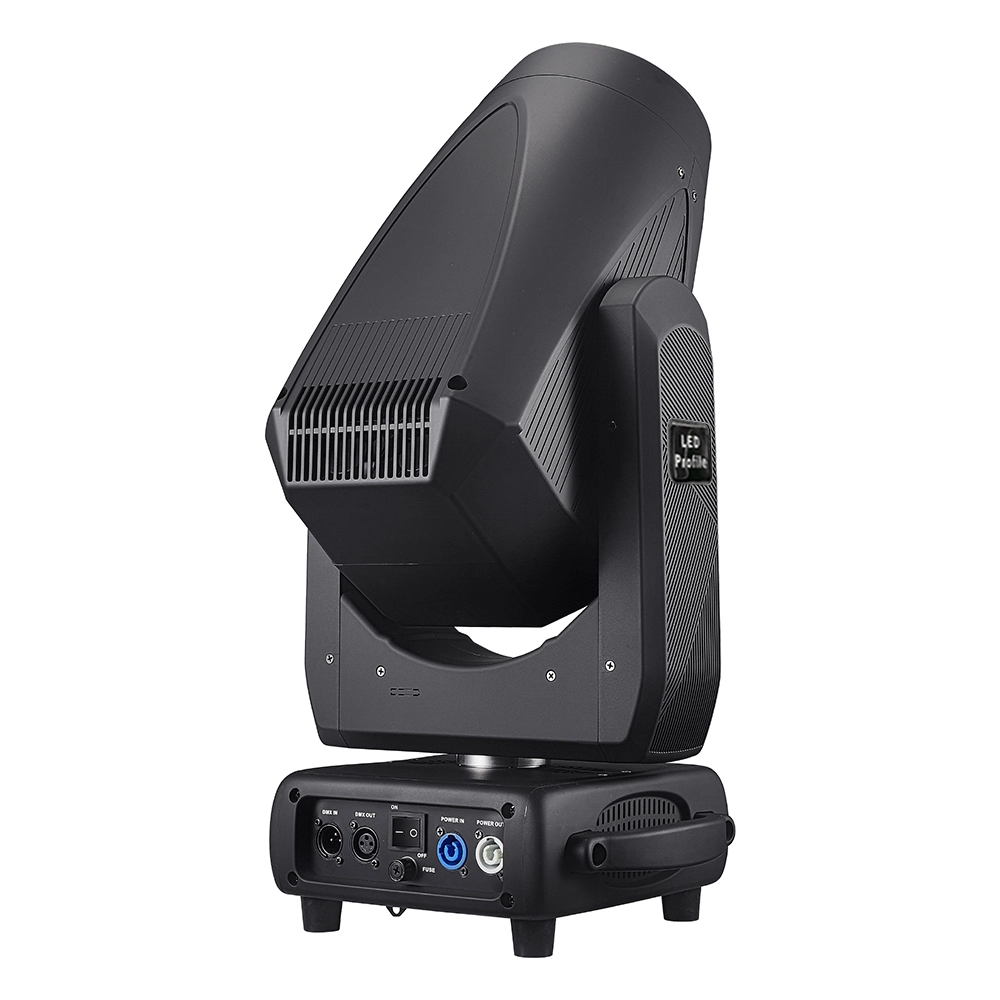

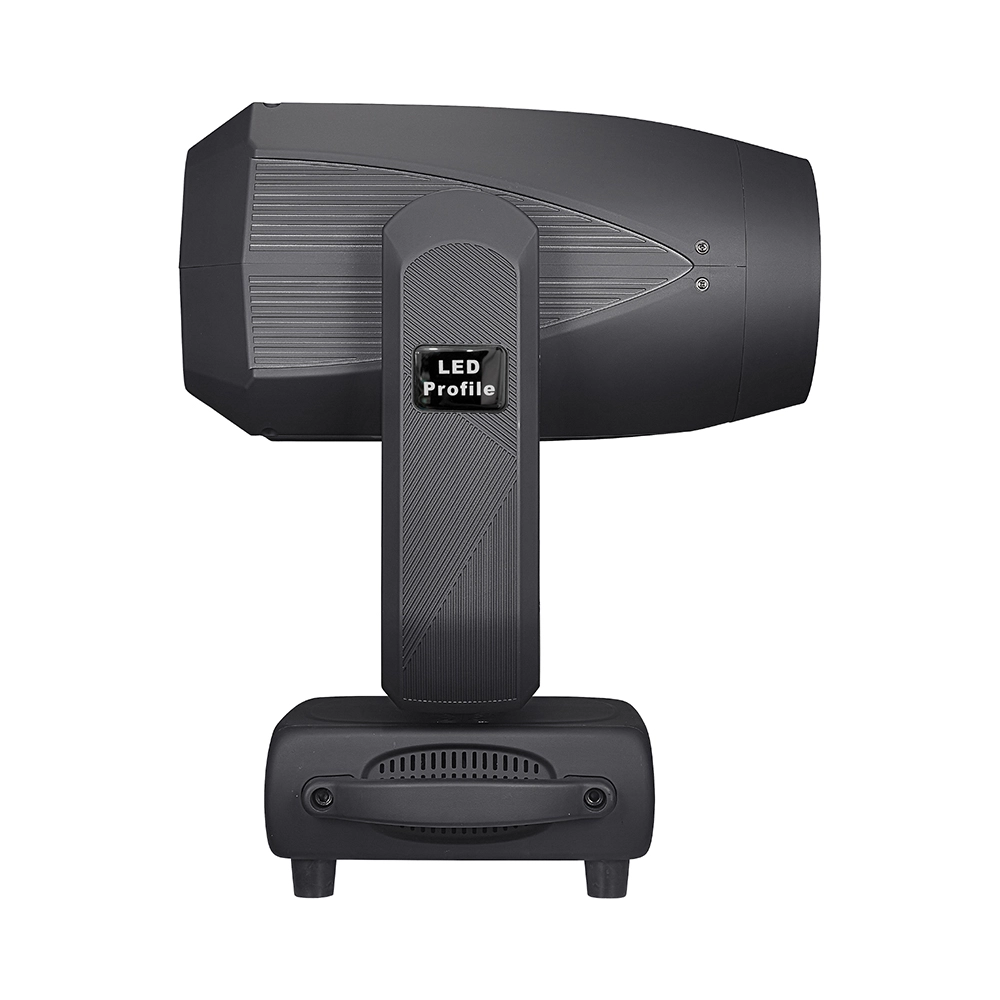

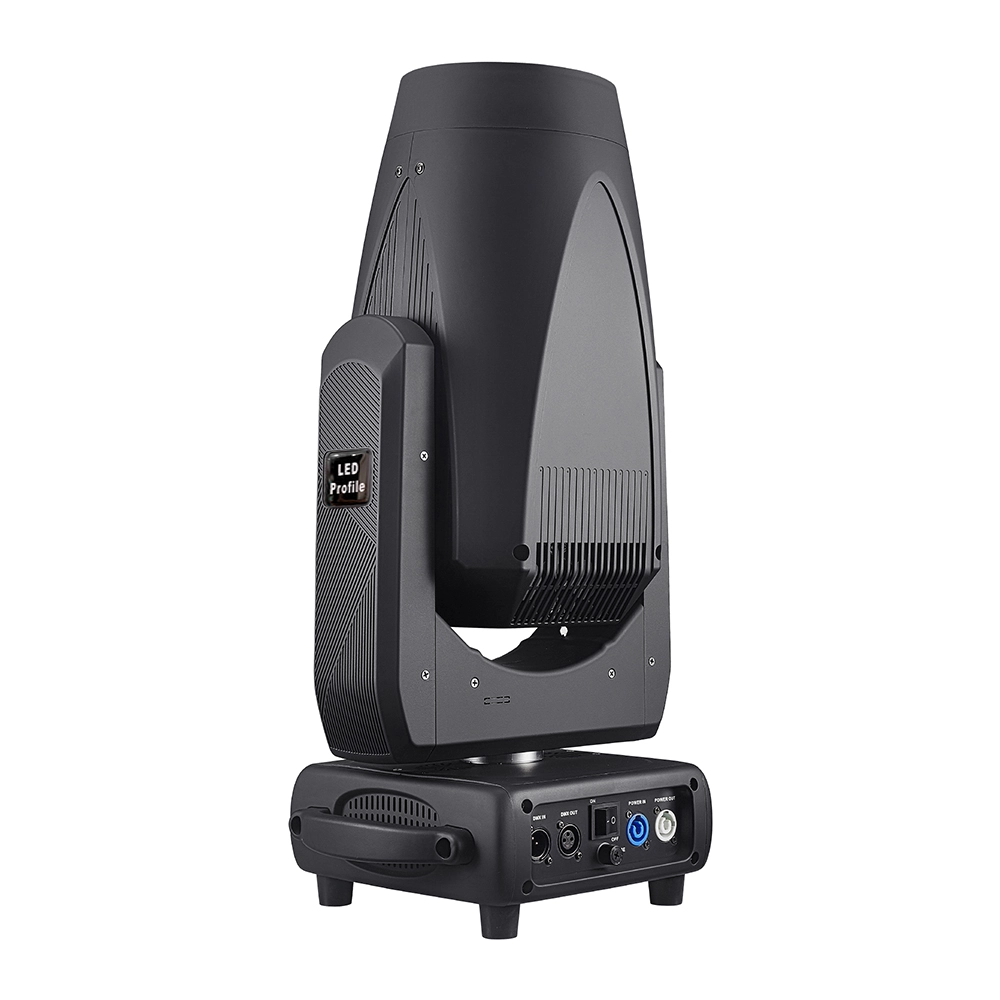

LED 600w BSW Moving Head with CTO CMY LED Ring

600w BSW Moving Head Stage Light

This 600W LED BSW (Beam, Spot, Wash) 3-in-1 moving head fixture use a hybrid light source combining a 550W white LED module with 30 pcs 5050 LEDs (8000K color temperature) and features linear CMY color mixing and CTO correction systems. With an adjustable optical range of 2.5°–55°, it integrates beam, spot, and wash functions. It includes built-in fixed and rotating gobo wheels and comes standard with a 4-facet prism and a 6-facet linear prism, both capable of independent bidirectional rotation and overlay combinations.The unit supports 24/28-channel modes and DMX512/RDM control, featuring electronic dimming, strobe effects, and thermal protection. It is suitable for professional applications such as concerts, theaters, and television studios.

Get a Free Quote

Get Product Catalogs

◼

Why Choose Us

Key Features & Benefits

• Safe and Reliable: Compliant with CE and RoHS certifications.

• Cost-Effective: Factory-direct supply; supports bulk OEM/ODM orders.

• Easy Maintenance: Simple structural design results in lower maintenance costs.

• Customization Options: Optional laser-printed logo available.

◼

Parameters

General Specifications

The 600W Beam Wash Spot 3-in-1 Moving Head with CTO CMY Led Ring

/Optic
Light source	LED 550W white light module+30x5050 LED beads	Input voltage range	AC110V-240V/50-60HZ
Beam Angle	2.5 ° -55 °	Pan/Tilt	540°/270° (16 bit)
Color wheel	6 colors+white light,Color half function	Rotating gobo wheel	7 rotating Gobo+1 white light, rotate as need
Color System	CMY+CTO	Static gobo wheel	9 fixed Gobo+white light
Prism	4 prisms + 6 prisms,rotate as need	Dimmer	Smooth dimmer from 0-100%
Power consumption	600W	Control:	DMX512.RDM
Channel	24 CH/28 CH	LED life expectancy	50000 hours
Focusing system	Linear adjustment from 4 meters to 50 meters	Strobe	0-30 times/second,adjustable speed strobe effect Strobe macro function
Luminous illuminance	4 meters, 80000 lm	Frost system	1 independent frost effect, soft and natural light spot
Connectors

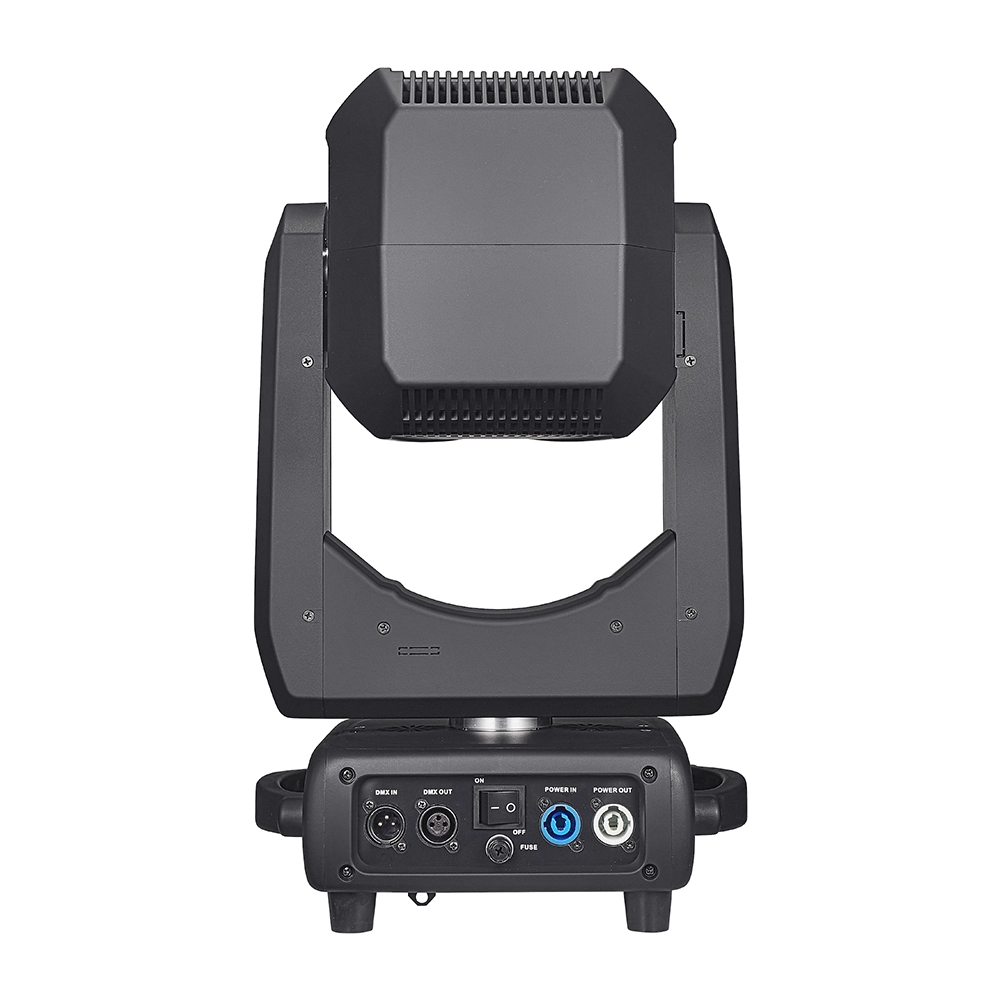

DMX data in/out	Locking 3-pin and 5-pin XLR	AC power input	1.5m power cord with plug
Package
Product Dimension	240x230x650mm	Weight (net)	17.2kg
Carton	60.5 * 53.5 * 46.5cm,18 kg
Warranty	1 Year

◼

Download

Download File

Download the 280W Beam Wash Spot 3-in-1 Moving Head user manual for operation guidance, DMX512 setup reference, installation notes and maintenance details.
